Blackmagic Design DeckLink Duo 2 - BDLKDUO2

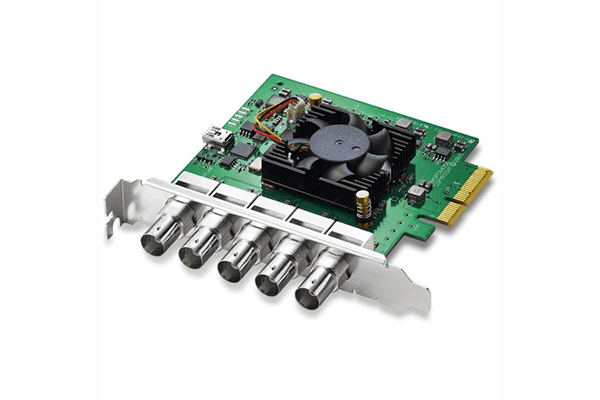

With four bi-directional SDI interfaces, the Blackmagic Design DeckLink Duo 2 is a versatile video I/O card for professional video workflows. Since each SDI interface can be configured to be either an input or an output, a computer with this card installed can be purposed as a media play-out system, a multi-screen digital signage server, a live keyer, a real-time multi-channel capture system, or a combination of the above to fit your specific workflow of the moment. A reference input is also available for syncing with other studio equipment.
- Color space conversion: Hardware based real time
- HD down conversion: Built-in, high-quality software down converter from HD to SD on output. Down converted SD selectable between letterbox, anamorphic 16:9, and center cut 4:3 styles.
- HD up conversion: Built-in, high-quality software up conversion from SD to 720 or 1080 HD on input. Selectable between 4:3 pillarbox, 14:9 zoom, and 16:9 zoom.
- Cross conversion: Built-in, high-quality hardware cross conversion from 720 to 1080 HD, and 1080 to 720 on playback.
- Real-time effects support: Final Cut Pro X internal effects, Premiere Pro CC Mercury Playback Engine effects, and Avid Media Composer internal effects.
- Blackmagic Design: DaVinci Resolve, Fusion 8
- Apple: Final Cut Pro X
- Adobe: Premiere Pro CC, After Effects CC, Photoshop CC
- Avid: Media Composer, Pro Tools
- Steinberg: Cubase, Nuendo
Features
- SD/HD/3G-SDI Input/Output
- PCI-E Interface
- 1080p 4:4:4 by Single-Link 3G-SDI
- 10/12-Bit Processing
- Down/Up/Cross Conversions
- Mac OS X, Windows, and Linux Compatible
Specification
Blackmagic Design Duo 2 Specs
| System Connection | PCIe 2.0 x4 |
| Video Inputs | 4 x BNC (12G-SDI) Female |
| Audio Inputs | None |
| Other I/O | 1 x BNC Blackburst, Reference, Tri-Level Sync Input |
| Simultaneous Multi-Input Support | Not Specified by Manufacturer |
| Input Video Format | SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 60 fps |
| Input Audio Format | Analog: 48 kHz / 24-Bit |
| Embedded Audio | SDI: 16-Channel |
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M ITU -R BT.601/BT.656 |
| HDR Compatibility | Not Specified by Manufacturer |
| OS Compatibility | Windows 8.1.10 or Later macOS 10.14.15 or Later Linux *As of August, 2020: Check with manufacturer for the most up-to-date compatibility |
| Power Consumption | 10 W |
| Operating Temperature | 37 to 72°F / 5 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
| Certifications | C-Tick, CE, FCC *as per Manufacturer |
| Dimensions | 3.7" / 9.4 cm |
| Weight | 5.64 oz / 160 g |
| Package Weight | 0.54 lb |
| Box Dimensions (LxWxH) | 5.65 x 5.55 x 1.2" |
