Atlona Two-Input Wall Plate HDBaseT Transmitter for HDMI and VGA Wi...

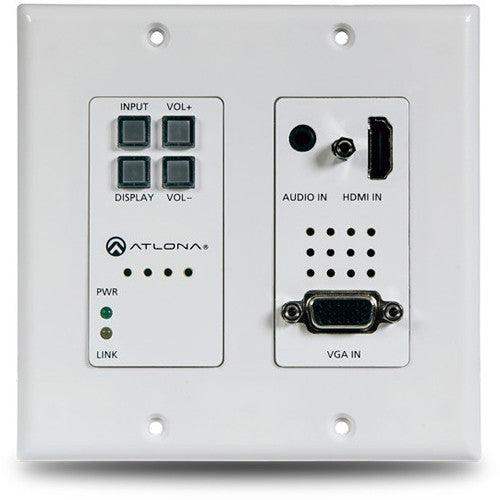

The AT-HDVS-200-TX-WP is a 2×1 wall plate switcher for HDMI and VGA inputs with HDBaseT output. It features a US, two-gang, Decora form factor with one HDMI and one VGA input with an always-on 3.5mm audio connector. HDMI signals up to 4K/UHD @ 60Hz (YUV 4:2:0 color sub-sampling), VGA input signals up to 1920×1200, embedded audio, and control signals can be extended up to 328 feet (100 meters). The switcher receives power from the AT-HDVS-200-RX scaler via Power over Ethernet and together they create a standalone AV switching and control system with scaling for classrooms and huddle rooms. Display control and volume commands are transmitted via CEC, IP, or RS-232 to any display, control system, switcher or other controllable device.
Features
- 2×1 HDBaseT switcher
- Features one HDMI input plus a VGA input with 3.5mm audio connector
- Allows advanced HDMI display devices to be used with legacy VGA sources
- Automatic display control
- Automatically changes projector power state based on active or standby mode of switcher. Control signals transmitted via CEC, IP, or RS-232
- Eliminates need for complex control system in AV systems. CEC enables control of low-cost consumer displays.
- Automatic input selection using video detection technology
- Selects active input when sources are connected
- Eliminates need for a complex control system in AV systems
- TCP/IP and RS-232 control of switcher
- Overrides auto-switching when two active sources are present
- Simple manual control allows presenter to maintain control of AV system
- Offers convenient user features to override auto-switching when two active sources are present plus display
- Simple manual controls allow presenter to maintain control of AV system
- Remotely controls audio volume using TCP/IP or RS-232; provides ‘Mute’ mode
- Eliminates need for manual operation of display or use of IR remote control
- This IP-controllable product can be remotely managed by the Atlona Management System software
- Integrates product configuration, management, and updates to reduce installation time and enable remote support
Specs
| General Information | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-HDVS-200-TX-WP |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Series | HDVS-200 |
| Product Model | AT-HDVS-200-TX-WP |
| Product Name | HDVS-200 AT-HDVS-200-TX-WP Audio/Video Switchbox |
| Product Type | Audio/Video Switchbox |
| Additional Product Specifications | |
| Full Product Specifications | Click to view |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 2 |
| Device Supported | Projector |
| Computer | |
| Display | |
| Number of Displays Supported | 1 |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| VGA In | Yes |
| USB | Yes |
| Serial Port | Yes |
| Connectivity (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of VGA Inputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Maximum Operating Distance | 328.08 ft |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Miscellaneous | |
| Package Contents | HDVS-200 AT-HDVS-200-TX-WP Audio/Video Switchbox User Guide Mounting Brackets |
| Warranty | |
| Limited Warranty | 10 Year |
