Atlona Omega 4K HDMI/USB Wall Plate Transmitter (330') - AT-OME-EX-TX-WP
Atlona Omega 4K HDMI/USB Wall Plate Transmitter (330') - AT-OME-EX-TX-WP is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Atlona Omega 4K HDMI/USB Wall Plate Transmitter (330') - AT-OME...

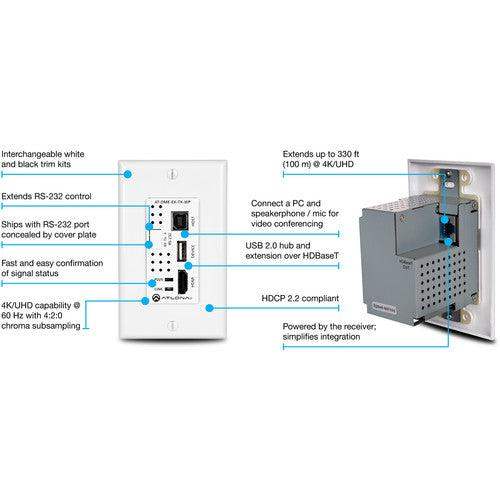

The Atlona AT-OME-EX-TX-WP is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). It features a US one-gang, Decora-style wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-TX-WP is HDCP 2.2 compliant and transmits RS-232 control signals. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX-WP includes a USB 2.0 host interface for a PC, plus a peripheral device such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs. It is available with the OME-EX-RX receiver as the OME-EX-WP-KIT.
Features

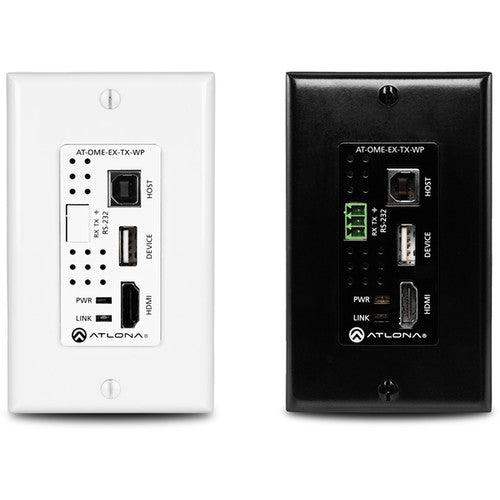

- US one-gang enclosure for Decora®-style wallplate openings - interchangeable black or white trim kits
- HDBaseTTM transmitter for HDMI®, Ethernet, power, control, and USB
- USB 2.0 interfacing and extension up to 330 feet (100 meters)
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- HDCP 2.2 compliant
- Remote PoE (Power over Ethernet) powering
Specs
| General Information | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-OME-EX-TX-WP |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Line | Omega |
| Product Model | AT-OME-EX-TX-WP |
| Product Name | Wallplate Transmitter for HDMI with USB |
| Product Type | Video Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Maximum Operating Distance | 330 ft |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 2 |
| Number of HDMI Inputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Physical Characteristics | |
| Transmitter Height | 4.07" |
| Transmitter Width | 1.80" |
| Transmitter Depth | 2.63" |
| Form Factor | Wall Plate |
| Transmitter Weight (Approximate) | 6.35 oz |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
