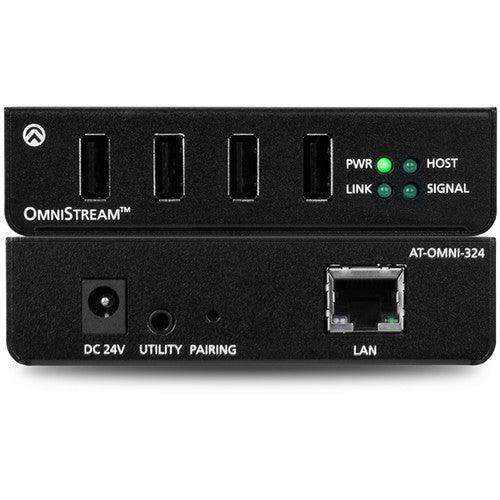

Atlona OmniStream 324 Device Side IP to USB Adapter - AT-OMNI-324
Atlona OmniStream 324 Device Side IP to USB Adapter - AT-OMNI-324 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Atlona OmniStream 324 Device Side IP to USB Adapter - AT-OMNI-324

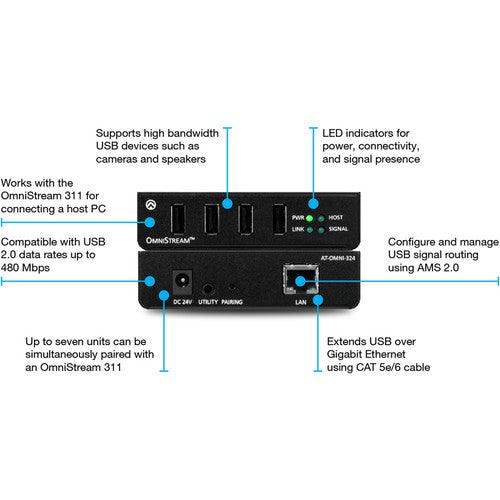

The Atlona OmniStream 324 works in tandem with the OmniStream 311 for extending USB from peripheral devices to a PC over Gigabit Ethernet. The OmniStream 324 features a four-port USB hub for peripherals, while the OmniStream 311 interfaces with a PC or other host device. The OmniStream USB over IP system is compatible with USB 2.0 data rates of up to 480 Mbps. It can be used with high bandwidth devices including cameras, speakerphones, microphones, and DSPs, plus standard USB HID class devices such as a keyboard, mouse, or touch display. Up to seven OmniStream 324 units can be simultaneously paired to an OmniStream 311. Additionally, USB routing over the network can be managed using Atlona Management System (AMS) 2.0.
Features
- Extend USB over Gigabit Ethernet using CAT5e/6 cable
- Four-port USB hub
- Supports high bandwidth devices such as webcams and speakers, as well as standard HID class peripherals
- Compatible with USB 2.0 data rates up to 480 Mbps
- Ideal for meeting room applications to extend USB from touch displays, cameras, speakerphones, DSPs, and more
- Design flexible and scalable AV systems in combination with OmniStream AV encoders and decoders
- Up to seven OmniStream 324 units can be paired with an OmniStream 311 over a network
- USB signal routing configured and managed by AMS 2.0 (Atlona Management System)
- Ready for integration with Atlona Velocity™ Control System to manage USB signal routing
- Streamline network switch integration by using Atlona Certified Switch configurations for popular models from Cisco and others
- Additional Information:
- Green LED Indicators: PWR, LINK, HOST, SIGNAL
- UTILITY: 1 - 3.5 mm mini-stereo
- PAIRING: 1 - Push button, tact-type, recessed
- Weight: 0.23 kg
- Certifications & Standards:
- FCC
- CE
- Environmentally Friendly: Yes
- Environmental Certification: RoHS
- Limited Warranty: 10 Year
Specs
| General Information | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-OMNI-324 |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Line | OmniStream |
| Product Model | 324 |
| Product Name | IP to USB Adapter for Peripheral Devices |
| Product Type | USB Extender |
| Technical Information | |
| Maximum Extended Range | 330 ft |
| Maximum Data Transfer Rate | 60 MB/s |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| USB | Yes |
| Number of USB Ports | 4 |
| Power Description | |
| Input Voltage | 24 V DC |
| Miscellaneous | |
| Additional Information | Green LED Indicators: PWR, LINK, HOST, SIGNAL UTILITY: 1 - 3.5 mm mini-stereo PAIRING: 1 - Push button, tact-type, recessed Weight: 0.23 kg |
| Certifications & Standards | FCC CE |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Warranty | |
| Limited Warranty | 10 Year |
