Atlona Avance 4K/UHD extended distance HDMI Transmitter and Receiver Kit w/RS - AT-AVA-EX100CE-BP-KIT
Atlona Avance 4K/UHD extended distance HDMI Transmitter and Receiver Kit w/RS - AT-AVA-EX100CE-BP-KIT is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Atlona Avance 4K/UHD extended distance HDMI Transmitter and Receive...

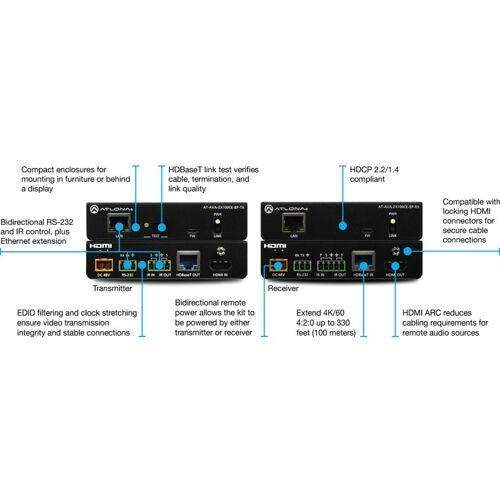

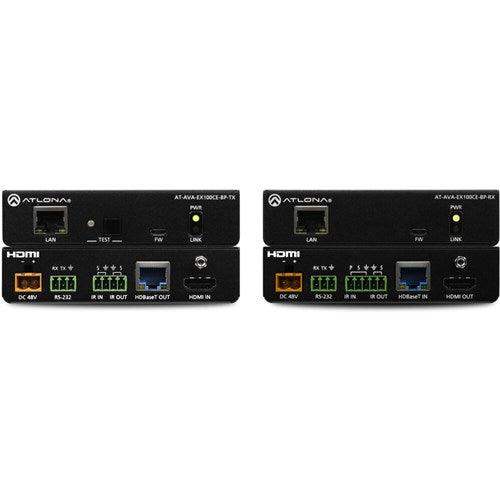

The Avance 4K HDMI Transmitter and Receiver Kit with Bidirectional Power from Atlona is an Avance Series HDBaseT extender kit that supports Ethernet, control pass-through, and bidirectional remote power capabilities. The kit transmits DCI/UHD 4K60 4:2:0 video up to 330'. In addition to video with embedded multi-channel audio, 100Base-T Ethernet data, RS-232 and IR control signals, and remote powering by either the transmitter or the receiver are supported on the single Cat 6/6a cable. EDID filtering and clock stretching ensure video transmission integrity and stable connections. The integrated HDBaseT link test allows quick verification of cable, termination, and link quality. Audio Return Channel (ARC) is available on the HDMI connections to minimize cabling in audio return applications. The AT-AVA-EX100CE-BP-KIT includes both transmitter and receiver endpoints. Compact enclosures and included brackets allow the devices to be surface mounted in furniture or behind a display.
Features
- Extend HDMI/Data/Control over HDBaseT
- Bidirectional Remote Power
- Supports up to DCI/UHD 4K60 4:2:0 Video
- HDMI ARC, EDID, IR Remote Control
Specs
| General Information | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-AVA-EX100CE-BP-KIT |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Name | Video Extender Transmitter/Receiver |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 2 |
| Number of Output Devices Supported | 2 |
| Maximum Operating Distance | 330 ft |
| Video | |
| Graphics Modes | 4K UHD |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Power Description | |
| Frequency | 50 Hz |
| 60 Hz | |
| Physical Characteristics | |
| Transmitter Height | 1.02" |
| Transmitter Width | 4.29" |
| Transmitter Depth | 5.20" |
| Receiver Height | 1.02" |
| Receiver Width | 4.29" |
| Receiver Depth | 5.20" |
| Transmitter Weight (Approximate) | 12.70 oz |
| Receiver Weight (Approximate) | 12.70 oz |
| Miscellaneous | |
| Package Contents | 1 x Transmitter 1 x Receiver |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
