Atlona 4K/UHD HDMI over HDBaseT Transmitter - Ethernet, Control, & PoE - AT-UHD-EX-100CE-TX
Atlona 4K/UHD HDMI over HDBaseT Transmitter - Ethernet, Control, & PoE - AT-UHD-EX-100CE-TX is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Atlona 4K/UHD HDMI over HDBaseT Transmitter - Ethernet, Control, &a...

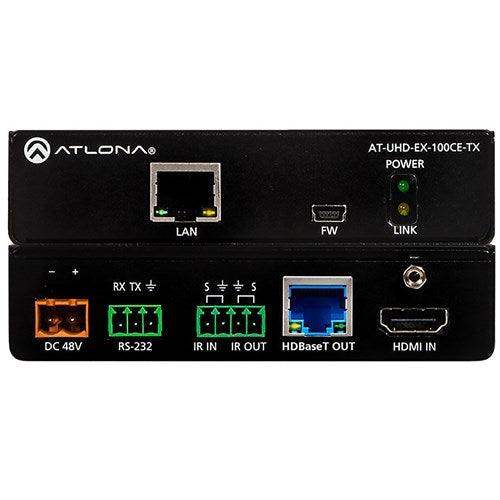

The Atlona AT-UHD-EX-100CE-TX is an HDBaseT transmitter for HDMI transmission up to 328 feet over category cable with Ethernet pass through, plus RS-232 and IR control. Designed to work with HDBaseT inputs on switchers and projectors, this extender transmits video signals up to 4K/UHD with embedded multi-channel audio. Additionally, the transmitter extends Ethernet, RS-232, and IR control commands. The AT-UHD-EX-100CE-TX features a quarter rack width metal enclosure for easy rack mounting with rear panel I/O ports for uncluttered wire management.
Features
- 4K/UHD capability
- Allows protected content stream to pass between devices
- Eliminates the need for remote power or power-injection devices
- AV, Ethernet, power, and control over HDBaseT
- Delivers 4K/UHD video, audio, 100Base-T Ethernet, power, and control through a single cable
- Eliminates multiple cable runs between source, control system, router, and display
- Rear panel I/O connectors for simplified wire management
- Saves installation time and eliminates clutter
- Multi-channel audio compliant
- Allows any multi-channel audio stream to be used within a professional audio system
- Front panel power and link status LEDs
- LED indicators provide power and HDBaseT link status information
- Provides easy setup and troubleshooting
- Keeps devices out-of-sight when placed in public spaces
Specs
| General Information | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-UHD-EX-100CE-TX |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Model | AT-UHD-EX-100CE-TX |
| Product Name | 4K/UHD HDMI Over 100M HDBaseT Transmitter with Ethernet, Control and PoE |
| Product Type | Video Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Maximum Operating Distance | 328.08 ft |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| USB | Yes |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Miscellaneous | |
| Package Contents | 4K/UHD HDMI Over 100M HDBaseT Transmitter with Ethernet, Control and PoE User Guide Desktop Power Supply for Transmitter Detachable Power Cable IR Emitter P/N AT-IR-CS-TX Mounting Brackets |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Warranty | |
| Limited Warranty | 10 Year |
