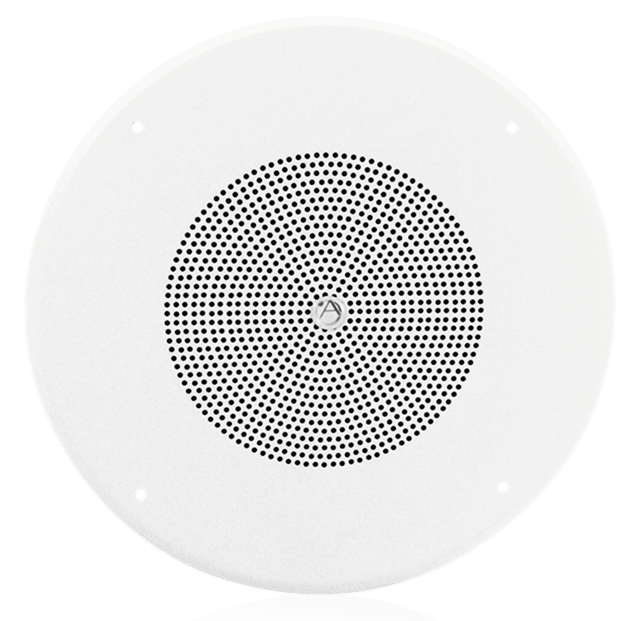

Atlas Sound FD72W 8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer and 62-8 Baffle
Atlas Sound FD72W 8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer and 62-8 Baffle is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Atlas Sound FD72W 8" In-Ceiling Speaker with 4-Watt 25V/70V Tr...
Model FD72W is a cost effective assembly that include high-quality 8" speaker, 25V/70.7V transformer and screw type grill.
The FD72W features a conventional cone design speaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.
Speaker / transformer is factory installed on a 62-8 style baffle.
Features
- Attractive White Finish
- Easy to Order Speaker/Transformer/Grill Assembly
- Mounts to Standard Tile Bridges, Enclosures, and Plaster Rings
- Suited for Any Commercial Paging or BGM Application
- Form Factor: In-ceiling
- Depth: 2.62"
- Diameter: 8"
- Limited Warranty: 1 Year
Specs
| General Information | |
| Manufacturer | Atlas Sound LP. |
| Manufacturer Part Number | FD72W |
| Manufacturer Website Address | http://www.atlassound.com |
| Brand Name | AtlasIED |
| Product Model | FD72W |
| Product Name | 8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer and 62-8 Baffle |
| Product Type | Speaker |
| Technical Information | |
| Minimum Frequency Response | 100 Hz |
| Maximum Frequency Response | 10 kHz |
| Sensitivity | 97 dB |
| Physical Characteristics | |
| Color | White |
| Form Factor | In-ceiling |
| Diameter | 8" |
| Miscellaneous | |
| Package Contents | 8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer and 62-8 Baffle Screw Type Grill 25V/70.7V Transformer |
| Warranty | |
| Limited Warranty | 1 Year |
