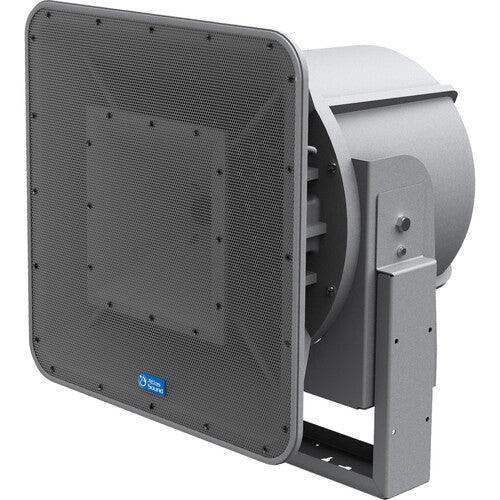

Atlas Sound AH99-12T-BSG 12" 2-Way Stadium Horn System 90° x 90°
Sale price
$1,837.99
Regular price
$2,296.99
Unit price
/
Unavailable
Shipping calculated at checkout.
AtlasIED | SKU:
AH99-12T-BSG
Atlas Sound AH99-12T-BSG 12" 2-Way Stadium Horn System 90° x 90° is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Atlas Sound AH99-12T-BSG 12" 2-Way Stadium Horn System 90° x 90°
Sale price
$1,837.99
Regular price
$2,296.99
Unit price
/
Unavailable
Installation
A heavy-duty stainless steel "C" style mounting bracket is included with the AH99-12T-BSG to allow easy mounting to most any flat surface. Three drop forge eyebolts are also pre-installed (2-front of horn plus 1-rear for "pull-up") for suspension mounting via load rated wire rope. (Use caution when suspending any object overhead. Refer to installation manual for more details).
The AH948-ST includes a weather resistant 7 pole terminal block connector on the underside of the speaker for ease of hook-up. This terminal block includes connection points for internal 70.7V transformer with taps settings of 7.5, 15, 30, and 60 watts and 8? connection for transformer bypass.
A heavy-duty stainless steel "C" style mounting bracket is included with the AH99-12T-BSG to allow easy mounting to most any flat surface. Three drop forge eyebolts are also pre-installed (2-front of horn plus 1-rear for "pull-up") for suspension mounting via load rated wire rope. (Use caution when suspending any object overhead. Refer to installation manual for more details).
The AH948-ST includes a weather resistant 7 pole terminal block connector on the underside of the speaker for ease of hook-up. This terminal block includes connection points for internal 70.7V transformer with taps settings of 7.5, 15, 30, and 60 watts and 8? connection for transformer bypass.
Features
- Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
- Three Forged Eyebolts Included for Suspended Installation
- 200 Watts Power Handling
- Constant Directivity Design Offers Controlled Coverage of 90° Horizontal by 90° Vertical (2kHz Octave Band)
- Driver Compliment Includes 12" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver Coupled to a 90° H x 90°V HF Horn
- Easy, Weather Resistant Connection Via a Convenient Recessed Terminal Block Located on the Bottom of the Loudspeaker
- Includes a Built-In, High Efficiency 60 Watts 70.7V Transformer
- Efficiency Rating of 101dB (1 W/1 M)
- Maximum Output of 126dB (Rated Power @ 1 M)
Atlas Sound model AH99-12T-BSG stadium horn is ideal for directional sound distribution where full range reproduction, maximum intelligibility, and high sound pressure levels are required. Applications include football stadiums, sports arenas, baseball fields, convention centers, and auditoriums.
Weather resistant construction features of the AH99-12T-BSG include a multiple screen configuration to prevent moisture from damaging internal components.
A perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver, and a third tightly perforated screen protects the 12" cast frame woofer.
Specs
| General Information | |
| Manufacturer | Atlas Sound LP. |
| Manufacturer Part Number | AH99-12T-BSG |
| Manufacturer Website Address | http://www.atlassound.com |
| Brand Name | Atlas Sound |
| Product Series | AH |
| Product Model | AH99-12T-BSG |
| Product Name | 12" 2-Way Stadium Horn System 90° x 90° |
| Product Type | Speaker |
| Technical Information | |
| Crossover Type | 2-way |
| RMS Output Power | 200 W |
| Driver Type | 12" Woofer |
| 1" Tweeter | |
| Minimum Frequency Response | 80 Hz |
| Maximum Frequency Response | 15 kHz |
| Impedance | 8 Ohm |
| Sensitivity | 101 dB |
| Physical Characteristics | |
| Form Factor | Surface Mount |
| Miscellaneous | |
| Package Contents | 12" 2-Way Stadium Horn System 90° x 90° Heavy Duty Mounting Bracket 3 x Forged Eyebolts 60 Watt 70.7V Transformer |
