Atlas Sound AH94-8T-BSG 8" 2-way Stadium Horn System 65° x 65°
Atlas Sound AH94-8T-BSG 8" 2-way Stadium Horn System 65° x 65° is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

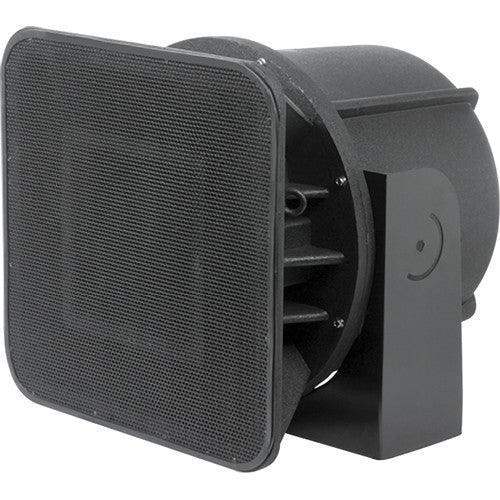

Atlas Sound AH94-8T-BSG 8" 2-way Stadium Horn System 65° x 65°
AtlasIED model AH94-8T-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required.
Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.
Weather resistant construction features of the AH94-8T-BSG include a multiple screen configuration to prevent moisture from damaging internal components, a perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 8" cast frame woofer. A "weep" hole is also included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.
Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.
Features
- Multiple-screen configuration prevents moisture from damaging internal components
- A "weep" hole on the back of the large horn "bell" allows evaporation of built-up internal condensation
- Three forged eyebolts are included for suspended installation
- Constant-directivity design offers controlled coverage of 65° horizontal by 65° vertical (2 kHz octave band)
- Driver complement includes 8" cast frame woofer with a concentrically-mounted 1" exit compression driver coupled to a 65°H x 65°V HF horn
- Easy, weather-resistant connection via a convenient recessed terminal block located on the bottom of the loudspeaker
- Efficiency rating of 100 dB (1W/3.3')
- Heavy-duty mounting bracket (included) allows for easy installation to a flat surface
- Nominal system impedance of 8-ohm
- Includes a built-in, high efficiency 60W 70.7V transformer
- Maximum output of 120 dB (rated power at 3.3')
Specs
| General Information | |
| Manufacturer | Atlas Sound LP. |
| Manufacturer Part Number | AH94-8T-BSG |
| Manufacturer Website Address | http://www.atlassound.com |
| Brand Name | Atlas Sound |
| Product Model | AH94-8T-BSG |
| Product Name | 8" 2-way Stadium Horn Loudspeaker System 90° x 40° |
| Product Type | Speaker |
| Additional Product Specifications | |
| Full Product Specifications | Click to view |
| Technical Information | |
| Crossover Type | 2-way |
| RMS Output Power | 100 W |
| Driver Type | 1" Tweeter |
| 8" Poly Woofer | |
| Minimum Frequency Response | 90 Hz |
| Maximum Frequency Response | 15 kHz |
| Impedance | 8 Ohm |
| Sensitivity | 101 dB |
| Physical Characteristics | |
| Form Factor | Surface Mount |
| Miscellaneous | |
| Package Contents | 8" 2-way Stadium Horn Loudspeaker System 90° x 40° Three Forged Eyebolts Mounting Bracket |
| Warranty | |
| Limited Warranty | 5 Year |
