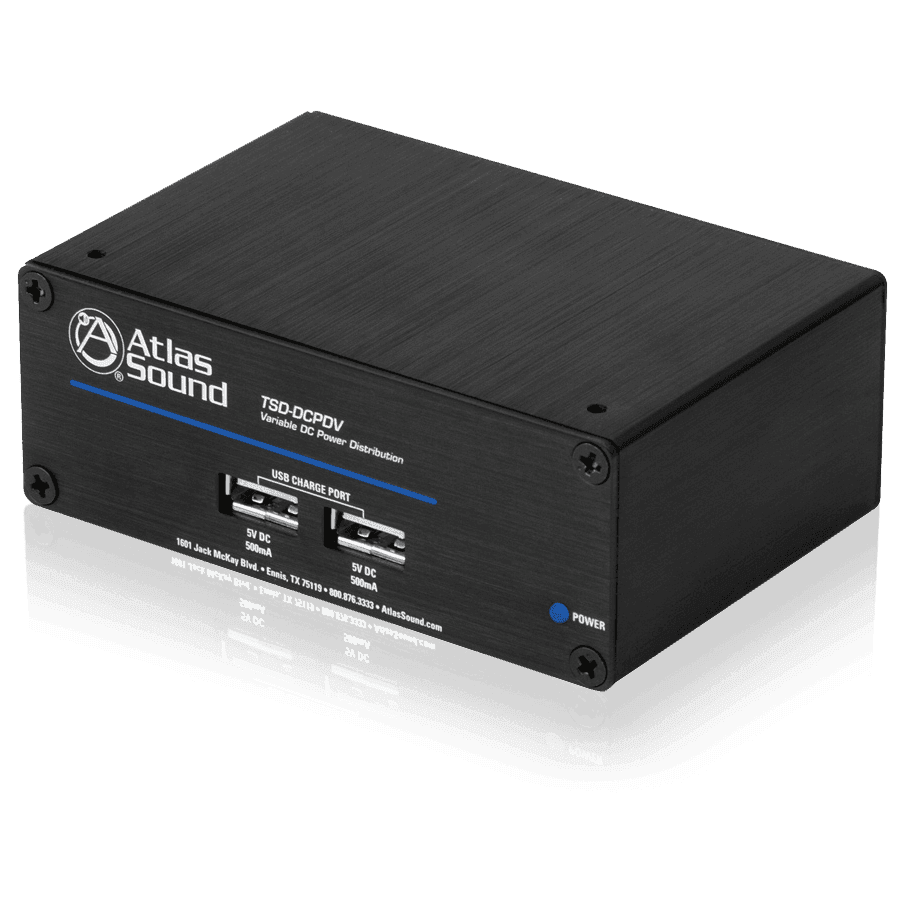

Atlas Sound TSD-DCPDV Variable DC Power Distribution

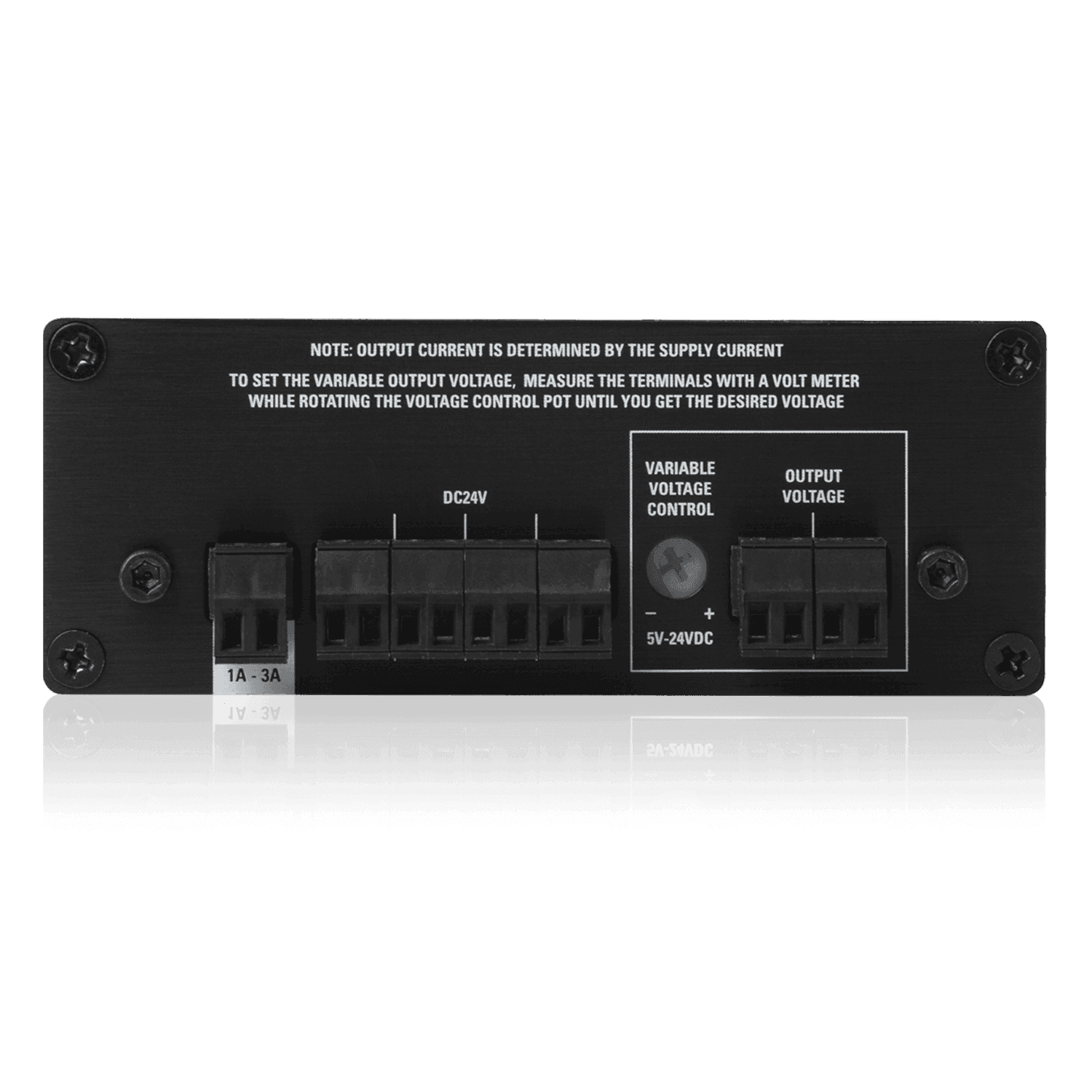

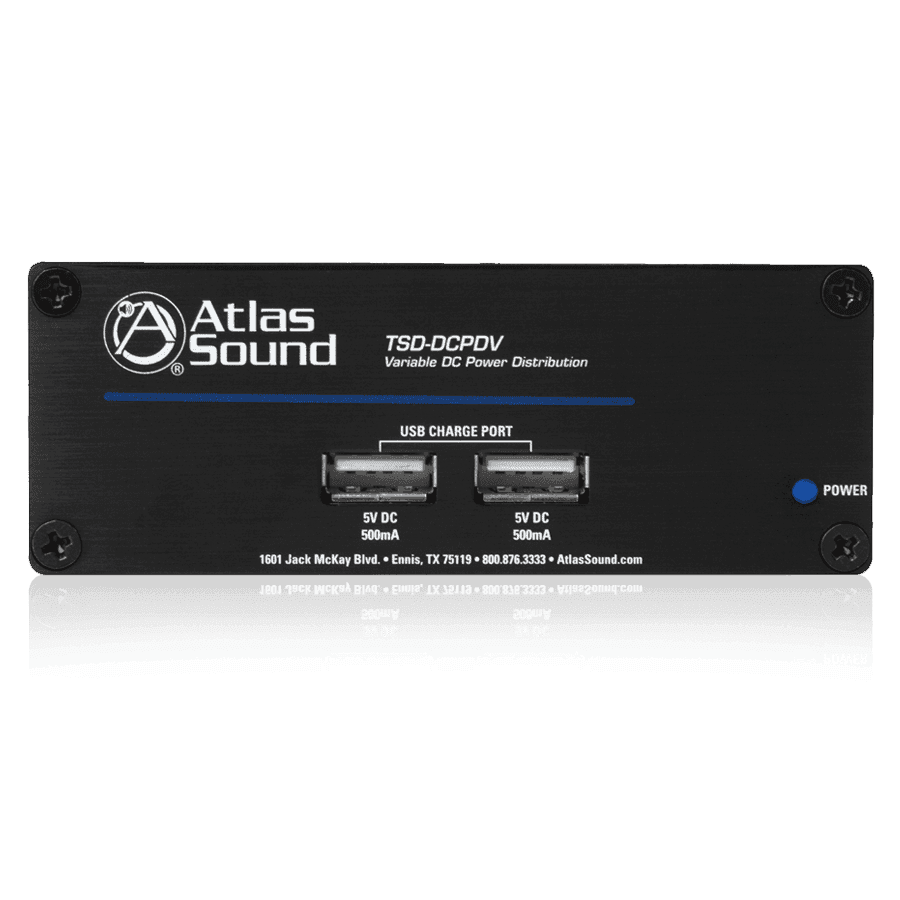

The Atlas Sound TSD-DCPDV Variable DC Power Distribution is designed to distribute power to TSD devices or other equipment requiring DC power without the need for separate power supplies. The TSD-DCPDV can help remove rack clutter and free up power strip space. It can also be used with wireless microphones that typically require 12-18 VDC PSUs. Its rear panel includes one 9-24V input for a user selectable power supply up to 2500mA, four fixed 24V outputs, and two 5-24V variable outputs. Voltage for variable outputs is adjusted from a secure trim pot. In addition, two front panel USB ports are available for charging other devices or for USB style rack lighting. The TSD-DCPDV requires a power supply (available separately) for operation.
Features
-
Power Distribution for Multiple TSD's From a Single Power Supply
-
1 in 6 Out Configuration
-
Four (4) Independent 24V Outputs
-
Two (2) 5V to 24V Variable Outputs
-
Two (2) 5V DC USB Charge Ports
-
DC Filtering and Isolation Per Channel
-
Output Voltage - Variable & Fixed Ports
-
Output Current: Power Supply Current Selection is Dependent on the Number of Devices Connected to the DCPDV and Their Accumulative Current Consumption. Use the TSD Power Calculator for Total Current Required.
-
Separate Ground Connections
-
Energy Efficient
Specs
| DC Voltage Input | 1A-3A, 24V DC, 3A Max |
| DC Voltage Output Fixed USB | 5V DC, 1A Each Power Supply and Load |
| DC Voltage Output Fixed USB | 24V DC, Power Supply Current Selection is Dependent on the Number of Devices Connected to the DCPD and Their Accumulative Current Consumption. Use the TSD Power Calculator for Total Current Required. |
| DC Voltage Variable | Qty 2, Ports 1 Adjustable Voltage, Variable DC Output 5V - 24VDC |
| Height | 1.5" (3.81 cm) |
| Width | 4" (10.16 cm) |
| Depth | 2.5" (6.35 cm) |
| Weight | 6oz., .165kg |
