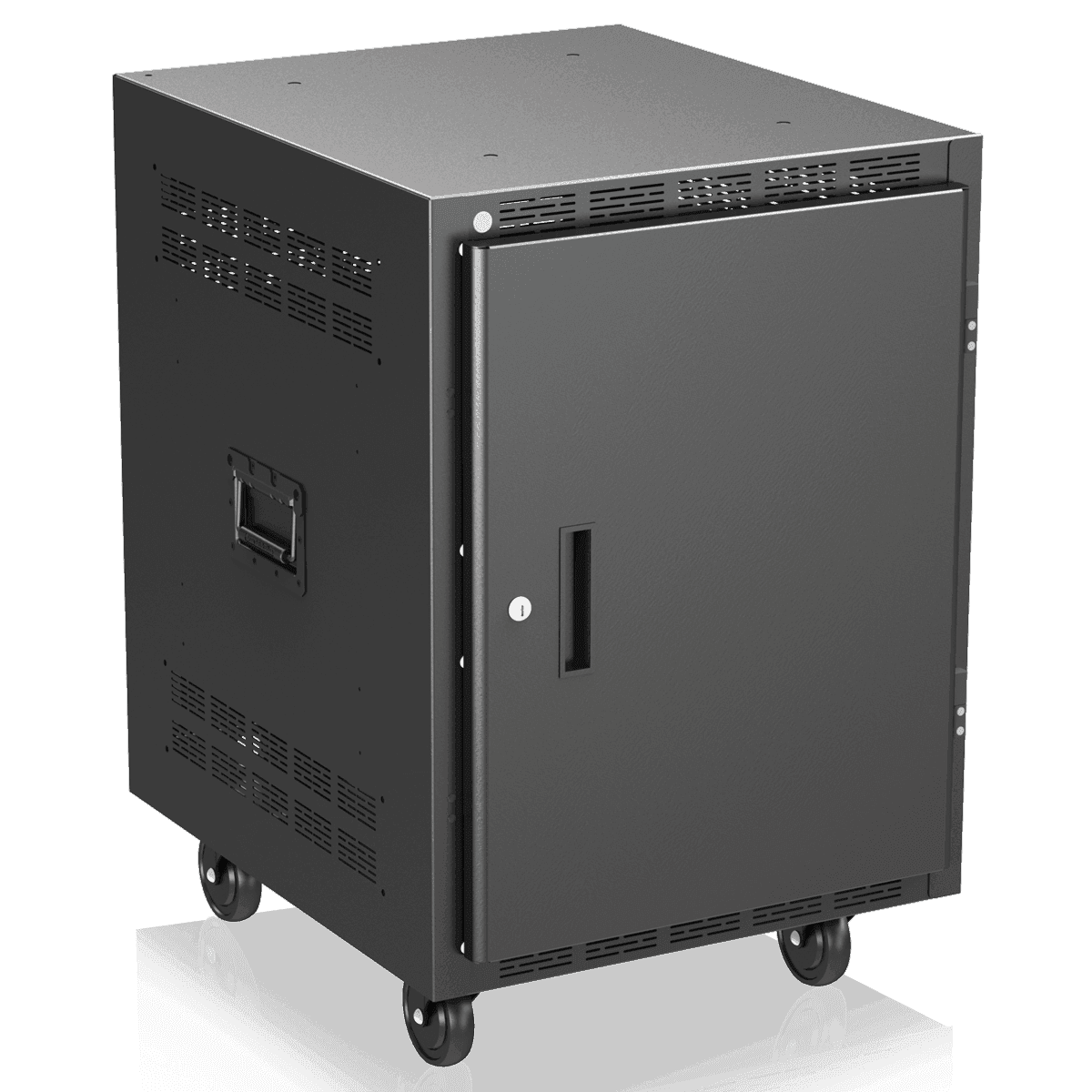

Atlas Sound RX14-25 25" Deep, 14RU Mobile Equipment Rack Includes: Casters, and Side Handles

$972.99 $1,211.99

Shipping calculated at checkout.

AtlasIED | SKU: RX14-25

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

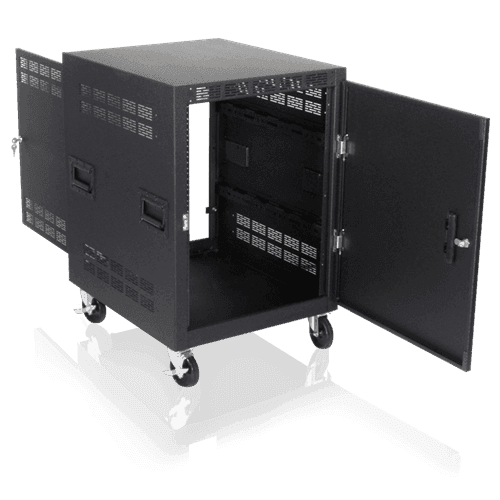

14RU mobile equipment rack includes casters and side handles. The RX14-25 mobile cabinet is ruggedly constructed of 16-gauge CRS and includes heavy-duty casters. Equipped with a front pair of 11-gauge, CRS adjustable mounting rails tapped 10-32 on standard E.I.A. 5/8"- 5/8"-1/2" spacing.Optional RR14 rear mounting rails are available for additional support. Front-to-rear mounting rail supports have slotted cutouts to easily adjust rail depth and to provide open raceways for containing vertically run wire and cable.Cabinet is 25 1/2" deep and has a vertical panel space height of 24 5/8". It features one pair of recessed, hinged and rubber-padded steel grips on each side (four total) for transport convenience. Easy wiring access is provided through three wire isolation holes (two, 1 1/2" dia. and one oblong 1 1/2" x 3") in the rear base flange.The units four, oversized, heavy-duty casters, two of which are locking, ensure smooth mobility and have a load capacity of 175 lb. each - 700 lb. total weight capacity.

Features

16-Gauge CRS Frame Manufactured to E.I.A. Standards
Four, 4" Heavy-Duty Casters (175 lb. cap./ea.)
Includes 1 Pair Adjustable, 11-Gauge, Front-to-Rear Mounting Rails
Mounting Rail Supports with Slotted Cut-Outs for Vertical Wire Management
Perforated Front and Rear Top Flanges, Sides and Rear Door Provide Ventilation and Dissipation of Equipment-Generated Heat
Optional Removable Front Doors (Right or Left-Hand Hinging) is Available and is Identically Keyed to the Rear Door for Security and Convenience
RR14 Optional Rear Mounting Rails Available
Rubber-Padded Steel Grip "Road Handles" (2 Per Side)
Standard Rack Includes Base, Top Panel, Side Panels, and Casters
Three, Wire Isolation Holes Located on Bottom of Rear Panel for External Wire Access
Welded Frame for Long-Lasting Durability

Specs

General Information
Manufacturer	AtlasIED
Manufacturer Part Number	RX14-25
Manufacturer Website Address	http://www.atlassound.com
Brand Name	AtlasIED
Product Series	RX
Product Model	RX14-25
Product Name	25 inch Deep, 14RU Mobile Equipment Rack Includes: Casters, and Side Handles
Product Type	Rack Cabinet
Technical Information
Rack Type	Enclosed Cabinet
Application/Usage	Electronic Equipment
	A/V Equipment
	Communications System
Features	Rugged
	Adjustable Mounting Rails
	Casters
	Perforated
	Vented
	Cable Management
	Lockable Door
Physical Characteristics
Product Color	Black Epoxy
Product Material	Cold-rolled Steel (CRS)
	Steel
Rack Height	14U
Rack Depth	24"
Miscellaneous
Assembly Required	No
TAA Compliant	Yes
