Atlas Sound IP-22SYSP Indoor 2' x 2' 80 Suspended Ceiling Mount Extension Speaker
Atlas Sound IP-22SYSP Indoor 2' x 2' 80 Suspended Ceiling Mount Extension Speaker is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Atlas Sound IP-22SYSP Indoor 2' x 2' 80 Suspended Ceiling M...

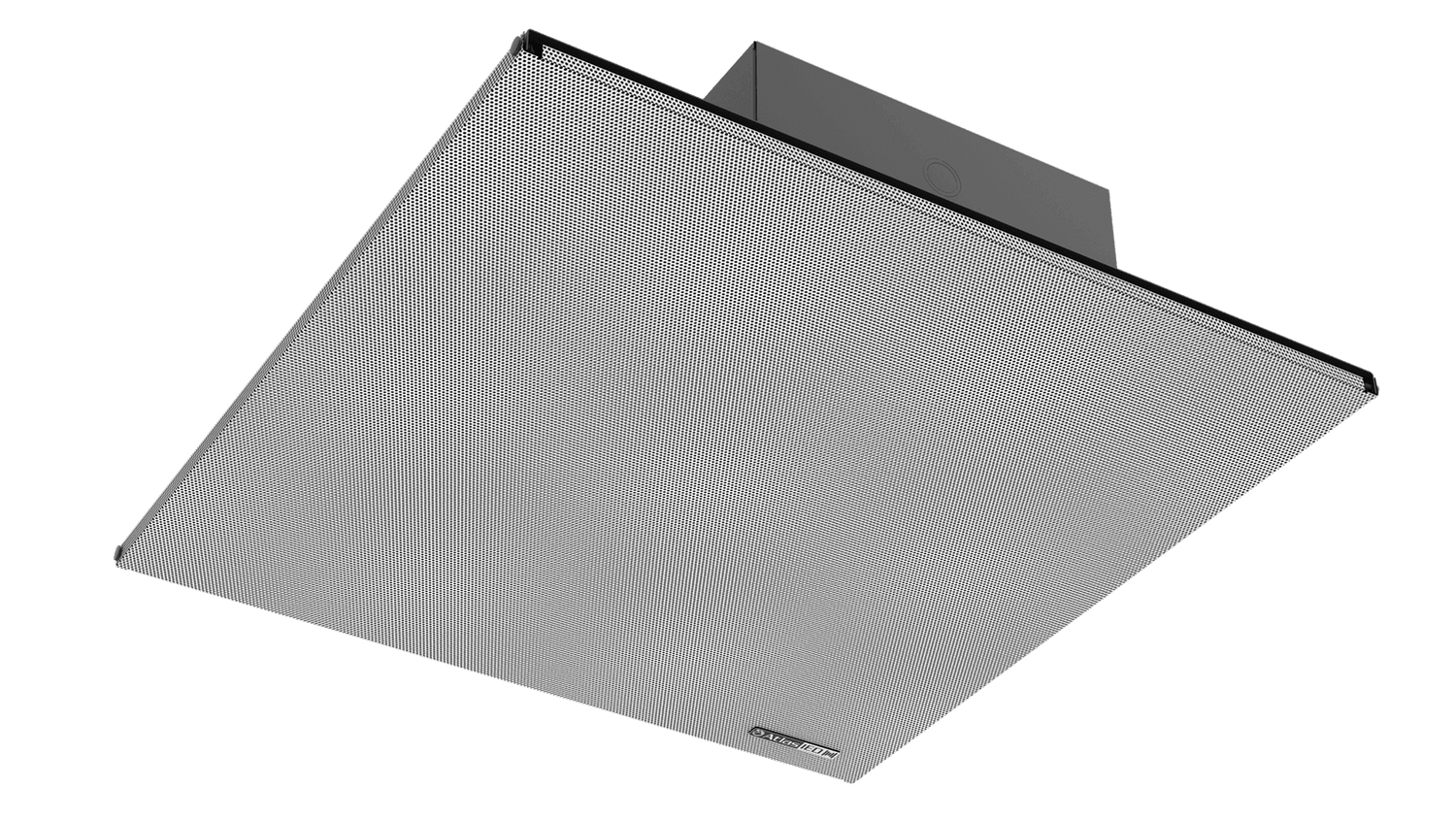

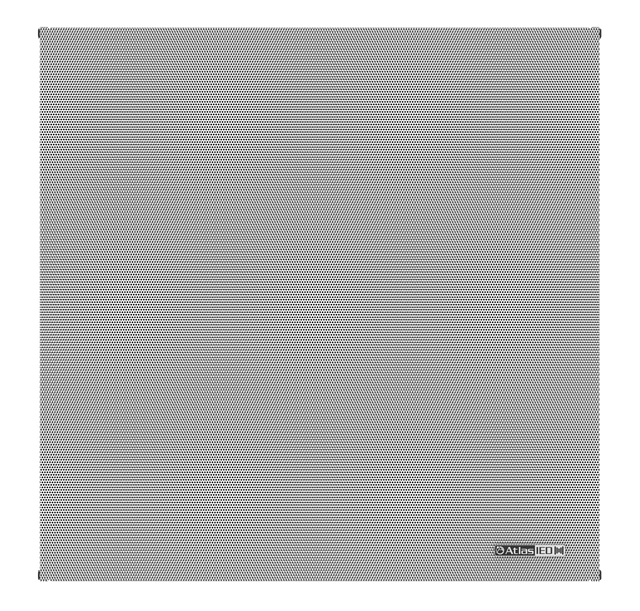

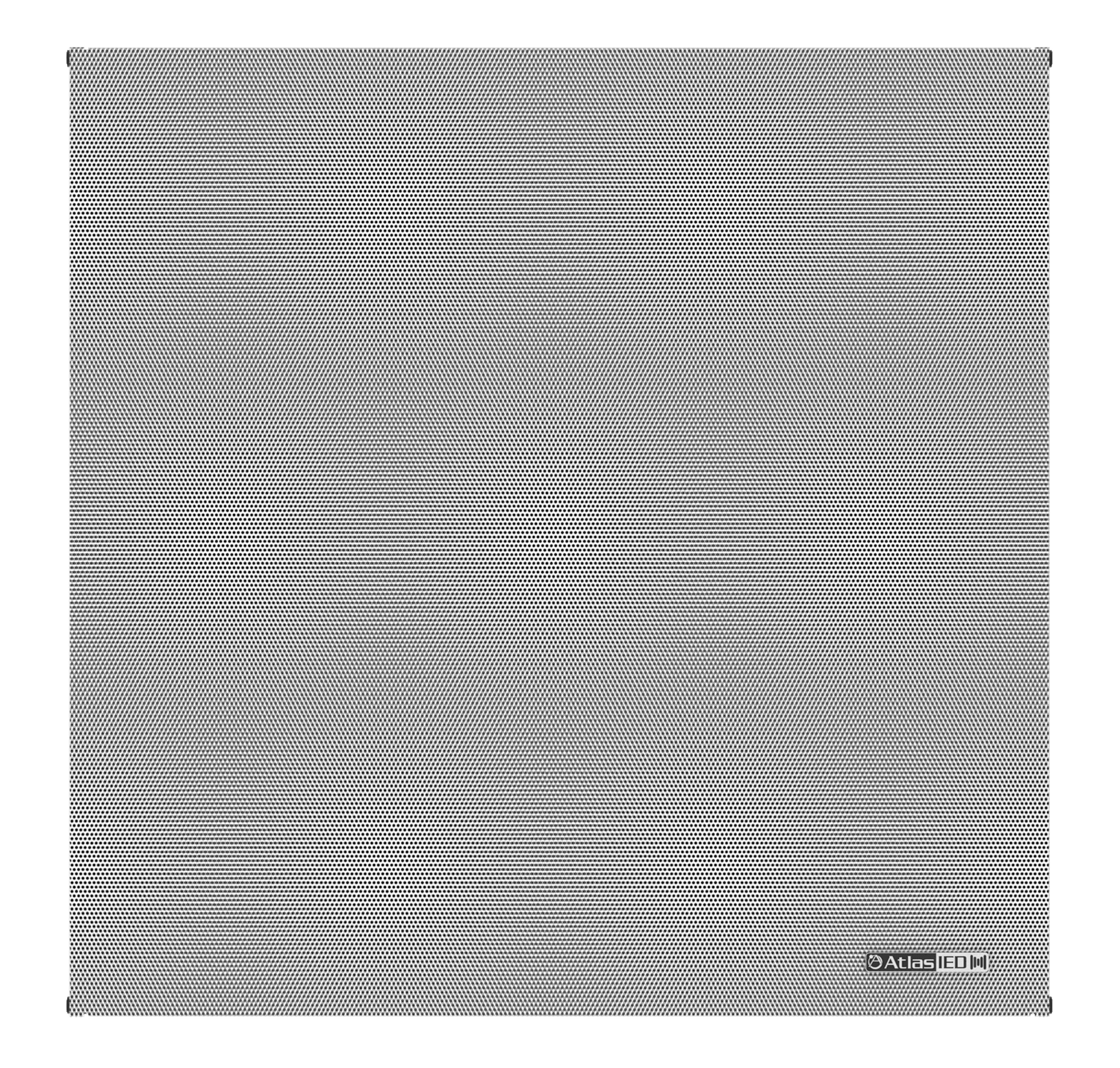

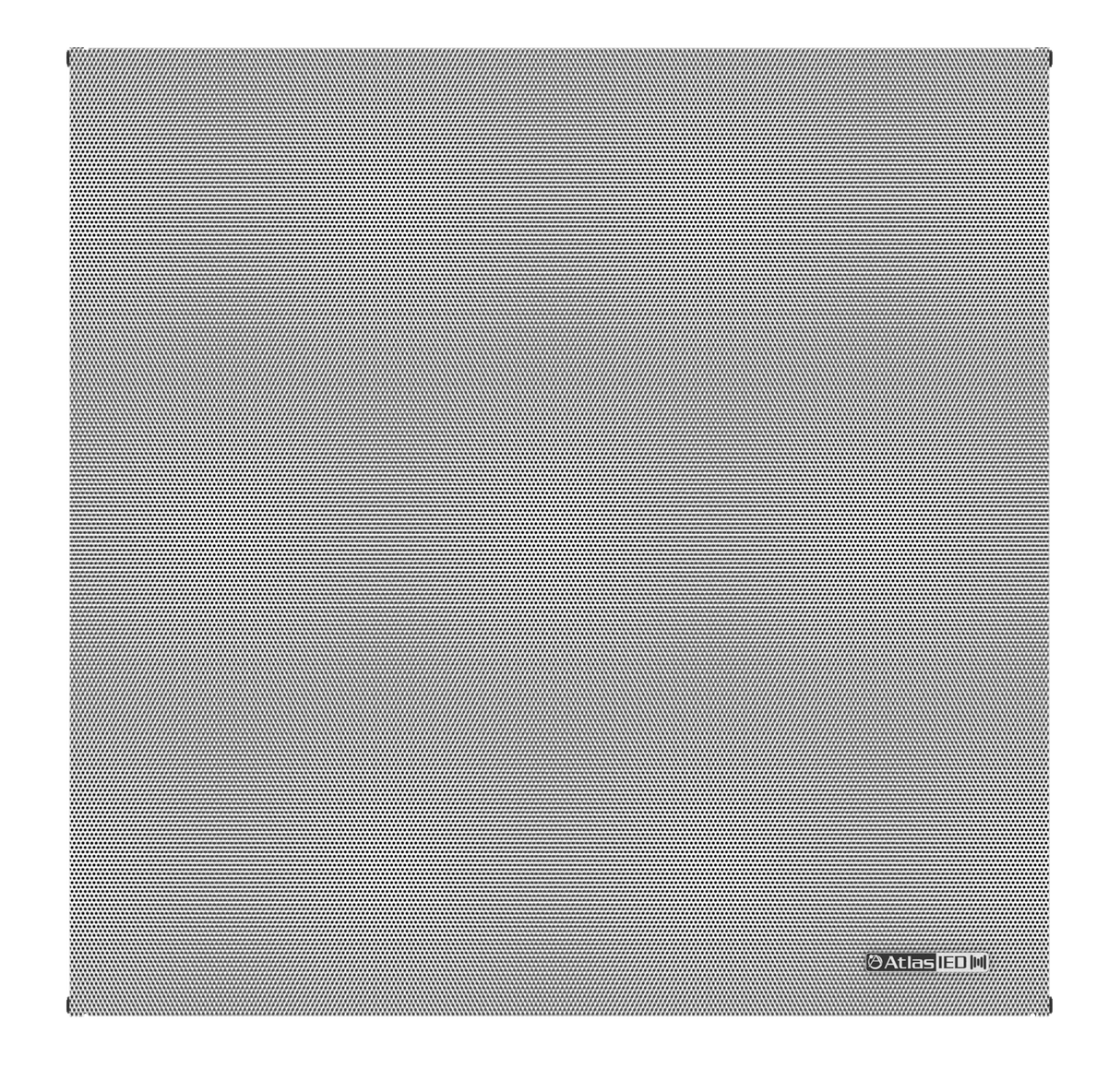

The IP-22SYSP is an installer friendly 2' x 2' suspended ceiling mount passive speaker designed to be used with other powered IPX products. The IP-22SYSP is the perfect companion product to expand announcement and background music coverage in large spaces. With the same industrial design as the popular IP-22SYSM, mixed systems of passive and active speakers are now visually seamless.
Specifically designed as an accessory to the existing IPX products the IP-22SYSP is designed as an 8Ω only speaker avoiding the cost and complexity of traditional 70/100V speakers.
The IP-22SYSP is an accessory product to the PoE+ powered IPX products that can be used to increase audio coverage. By using the secondary speaker output of an active IPX the IP-22SYSP acts as a direct extension of the IPX. Beyond IPX the IP-22SYSP can be used in applications where low impedance (8Ω) speakers are needed and the complexity of 70/100V wiring is unwanted.
The IP-22SYSP is a great option for but is not limited to school, corporate, governmental, house of worship, and light commercial installations.
Features
Specs
| Speaker Type | Indoor 2' x 2' Suspended Ceiling Mount Passive Speaker |
| Frequency Response | 110Hz - 6kHz |
| Sensitivity | 95dB SPL |
| Maximum SPL (1M) | 105dB SPL Calculated |
| Dispersion | 120˚ Horizontal x 100˚ Vertical |
| Connector Type | 22 GA. DQSK Bare Wire Leads |
| Dimensions (HxWxD) | 5.01" x 23.69" x 24.10" (127mm x 602mm x 612mm) |
| Weight | 14.15 lbs (6.42kg) |
| Shipping Weight | 21.65 lbs (9.82kg) |
| Safety Listed | UL1480 / UL2043 Certified |
