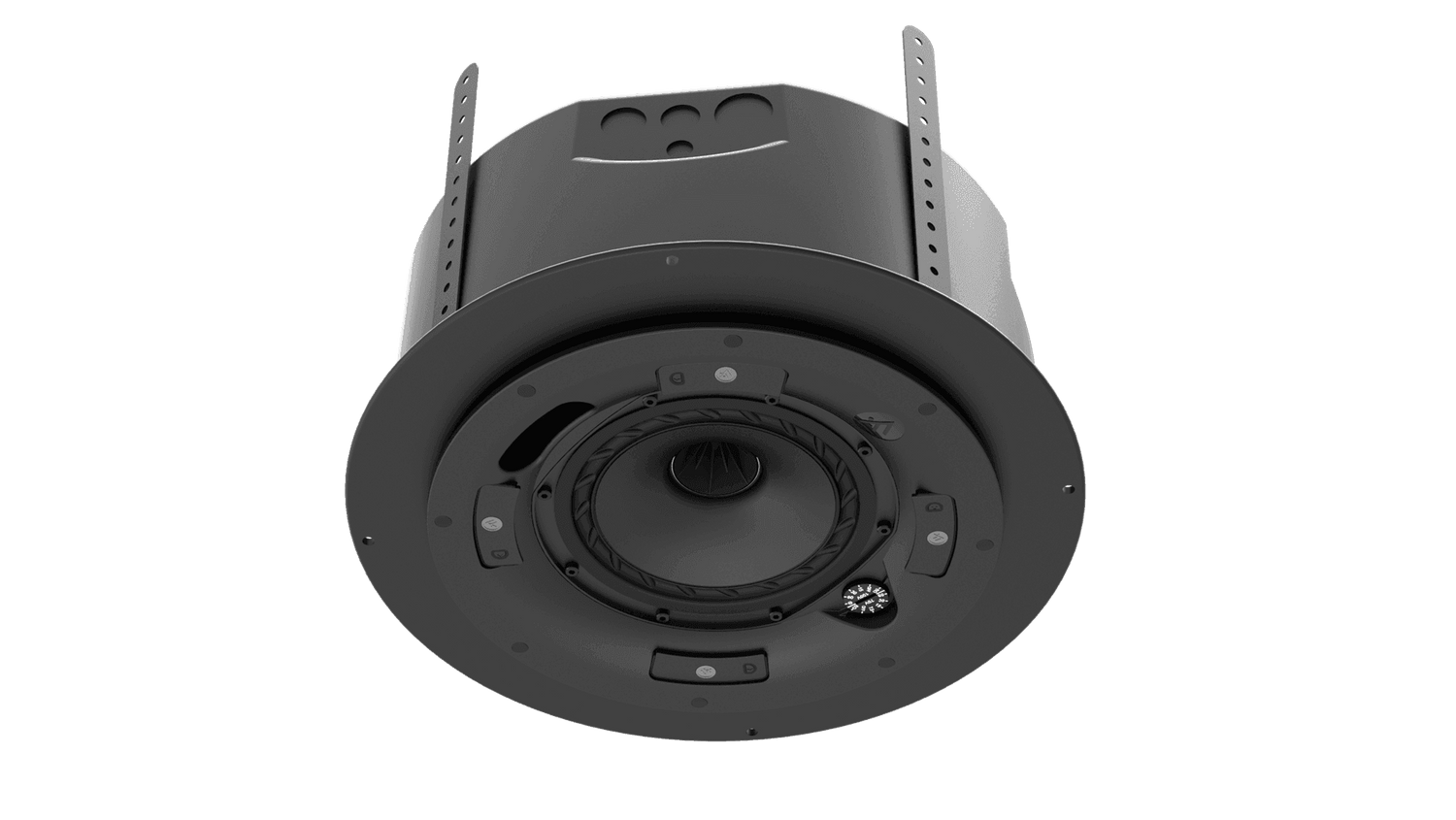

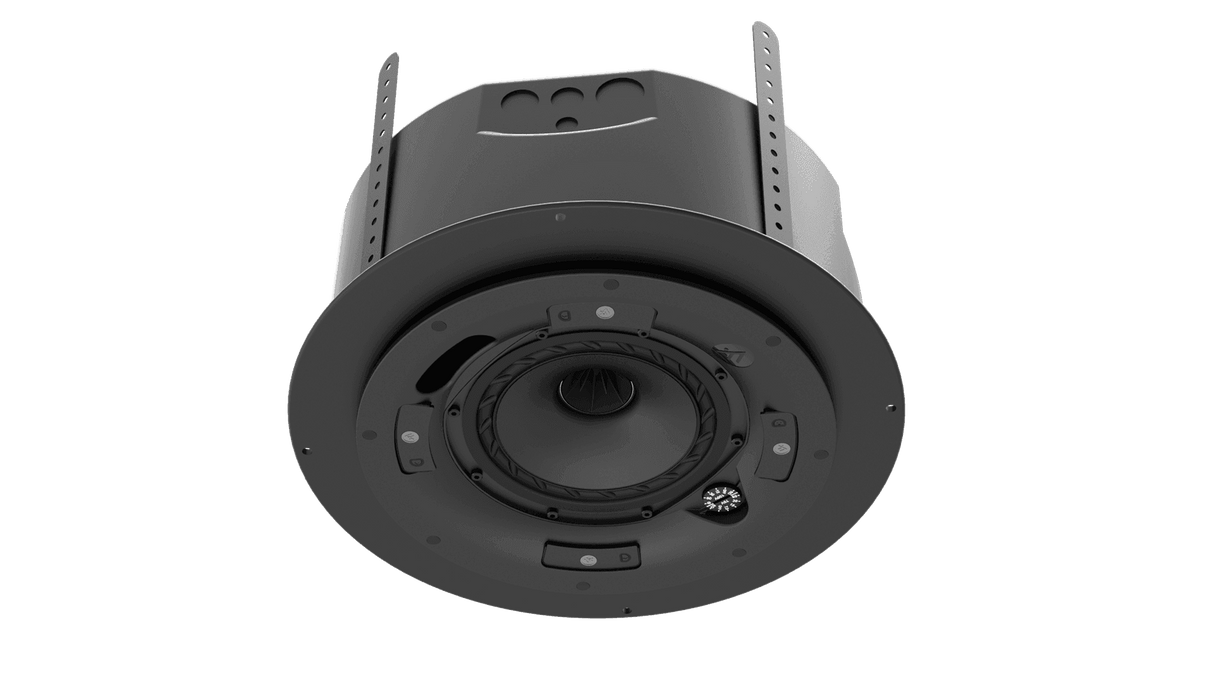

Atlas Sound FC-6DRV 6" Premium Ceiling Speaker Pre-Install Driver

The IsoFlare™ FC-6T Pre-Install is a wide bandwidth, high sensitivity ceiling loudspeaker designed for the ultimate in fidelity, coverage, and aesthetics.

The IsoFlare™ FC (in-ceiling) range is the new benchmark in point source technology for prestigious commercial environments. Leveraging years of engineering experience and the very latest in design & engineering techniques, IsoFlare™ brings performance and premium commercial audio to any space. FC models are available in a variety of sizes and with different installation methods to provide versatility for architects, designers, and installers.

Unlike most ‘coax’ offerings, the IsoFlare™ driver exhibits excellent harmonic alignment between HF and LF sources, the effect of which is to deliver accurate and natural reproduction with superb tonal balance.

Propagating a spherical wavefront, homogeneously aligned on all axes, the IsoFlare™ point source driver yields an even response throughout the listening area; a constant time delay over the entire frequency spectrum providing exceptional off-axis performance.

The FC-6T is designed for applications requiring a combination of premium sonic quality for music and speech reinforcement with exceptional reliability, in an architect/designer/installer friendly solution.

Low frequency enhancement can be augmented with the FC-8ST ceiling subwoofer

Two IsoFlare 6” variants are available to satisfy most installation scenarios:

• IsoFlare™ FC-6T (Blind Mount) - supplied with an integral back can, C-Ring, and Tile Bridge.

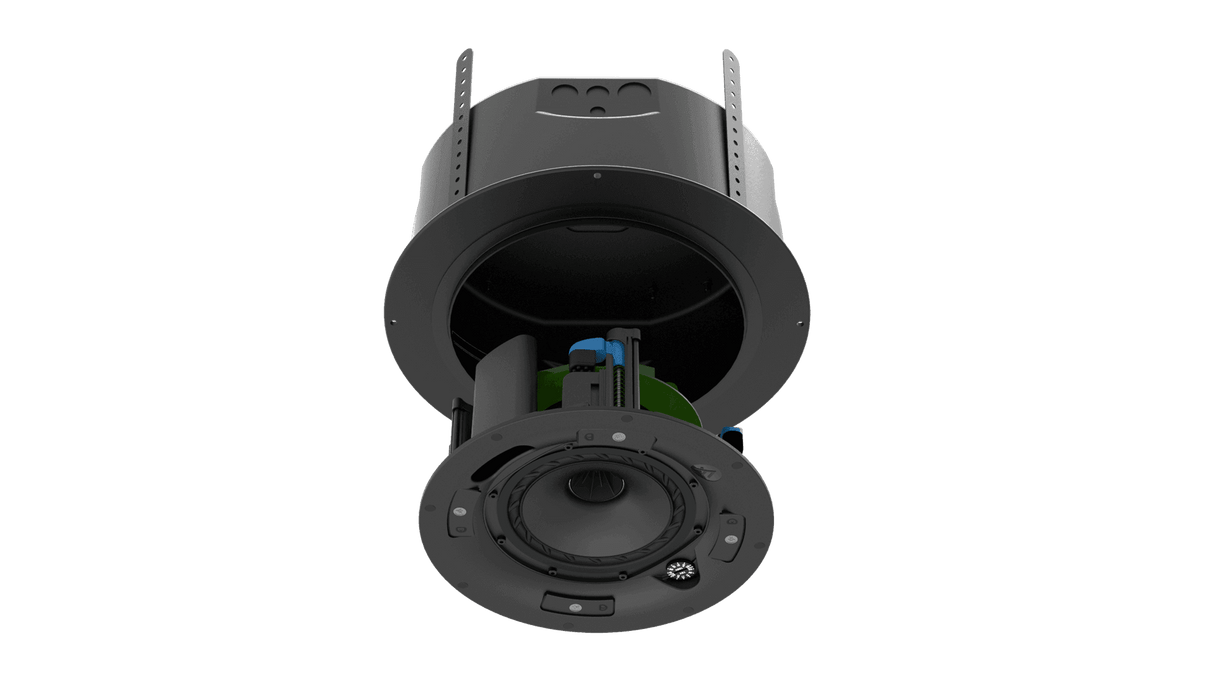

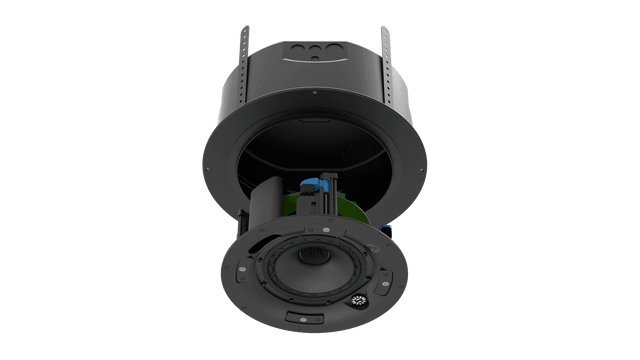

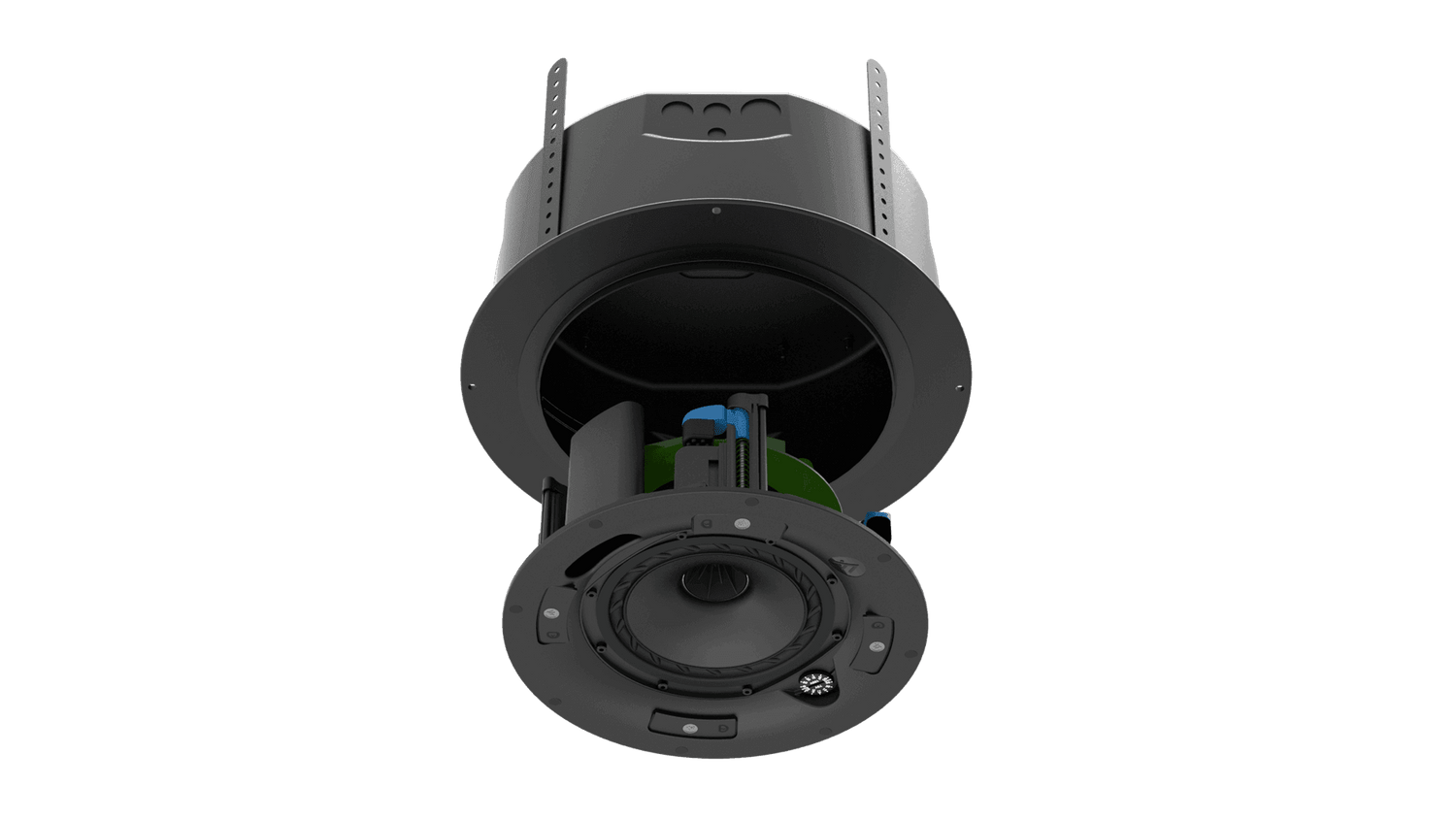

• IsoFlare™ Pre-Install consists of 2 components:
  • FC-6DRV Pre-Install Driver- supplied without a back can.

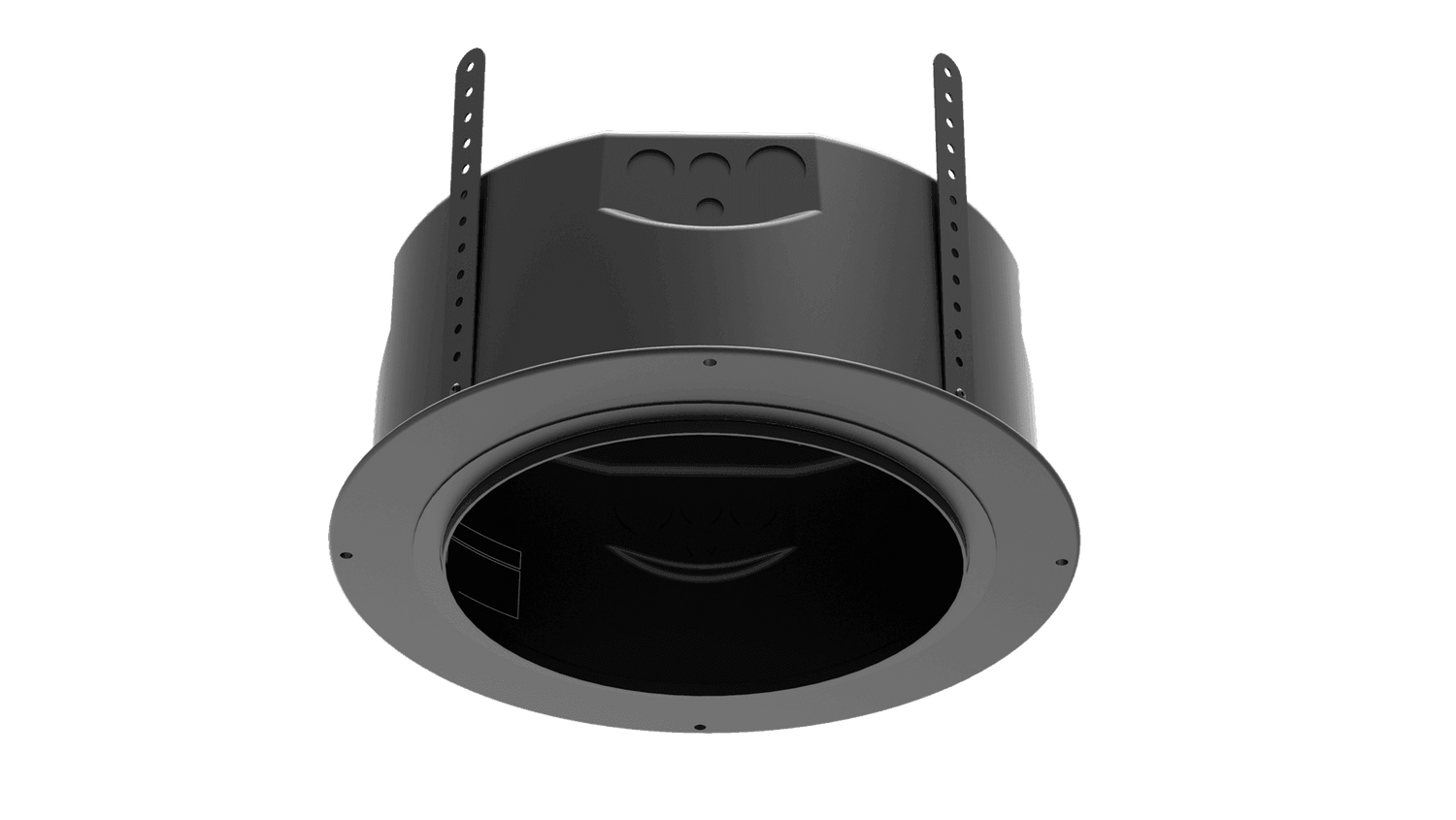

  • FC-6TPIC Back Can (Pre-wired back can) – for separate backcan installation.

Features

• Edgeless grille - magnetically secured. No requirement for adapters to accommodate optional square grilles. Removable logo. Allows for a single step painting process if required. Optional black & white.
• Ferrofluid cooled titanium HF with neodymium magnet system
• Weather treated multi fiber cone; stiffness combined with controlled top end roll off, for an accurate mid-range.
• Fluted Surround Technology – Conventional driver surround profiles can reflect energy back down the cone causing coloration
• Optimized smooth transition baffle (no sharp edges which cause diffraction)
• Full bandwidth very low insertion loss 30W 70/100V transformer
• High-current premium crossover components (Air Core Inductors & Polypropylene Capacitors)
• Easy Access Tap Selector Switch
• Enhanced voicing presets available via AtlasIED Atmosphere platform
