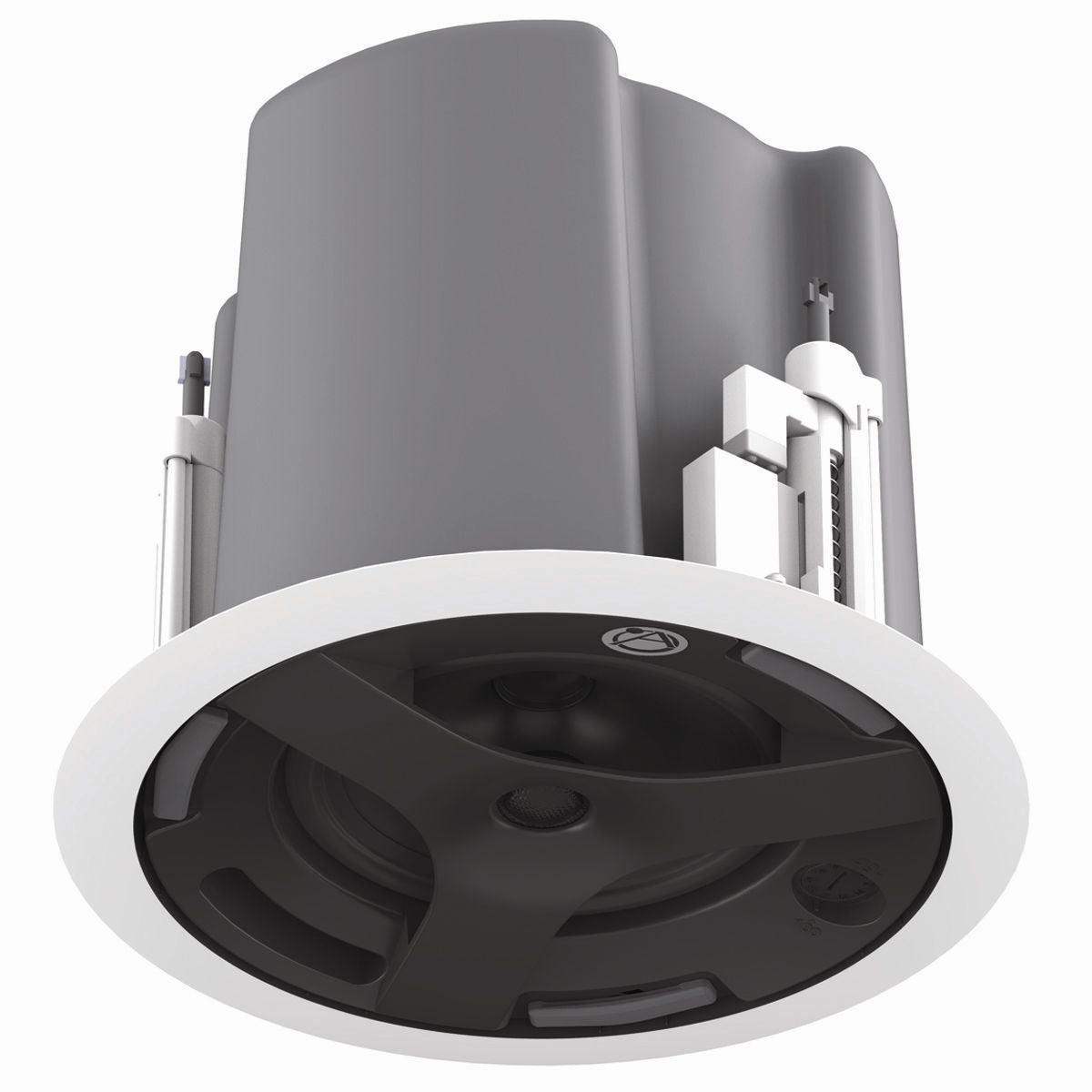

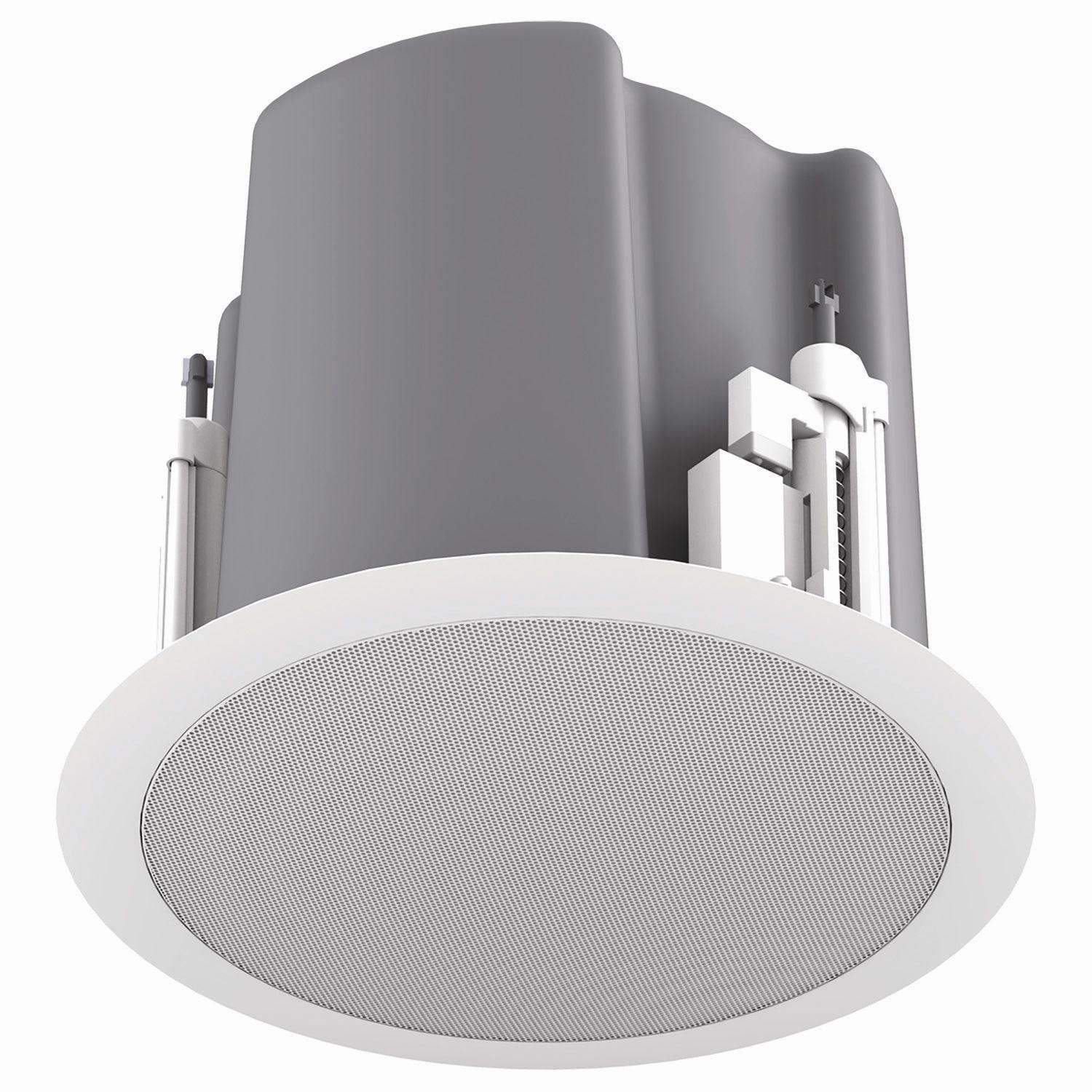

Atlas Sound FAP63T-WEGR 6.5" Coaxial In-Ceiling Speaker with 32-Watt 70V/100V Transformer, Ported Enclosure, Safety First Mounting System and Round White Edgeless Grille (Pair, White)
Atlas Sound FAP63T-WEGR 6.5" Coaxial In-Ceiling Speaker with 32-Watt 70V/100V Transformer, Ported Enclosure, Safety First Mounting System and Round White Edgeless Grille (Pair, White) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Retail stores, restaurants, recreational facilities, and even hotels, convention centers, and casinos have all changed their thinking on how an in-ceiling speaker should perform. For many years, good enough was a speaker that just played dull and lifeless sound. In today's world, good enough is no longer accepted because building owners want to increase their customer's experience by providing them the best of everything - including superb sound. The improved waveguide design provides wider coverage than previous models. The benefit is cost savings due to fewer speakers required, while still maintaining uniform sound throughout. To enhance our low-frequency response and provide deeper bass definition, we optimized the low frequency tuning port. Additionally, the FAP63T is safety listed to both UL1480 and UL2043.
In-ceiling speakers are subjected to various climate and humidity environments. Competitive offerings use steel screws that can easily rust and fail due to humidity exposure. The FAP63T-WEGR provides corrosion-free, no-worry operation, since it has no metal screws holding the doglegs in position.
Features
- SFMS - Safety First Mounting System Patented Design Allows for Quick, Easy Installation
- Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss
- Increased Dispersion with Improved Waveguide
- Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for Direct Coupled Operation
- 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining of Additional Speakers
- Unique "Trap Door" Input Section Allows for Through Conduit Runs with Rigid or Flex Conduit

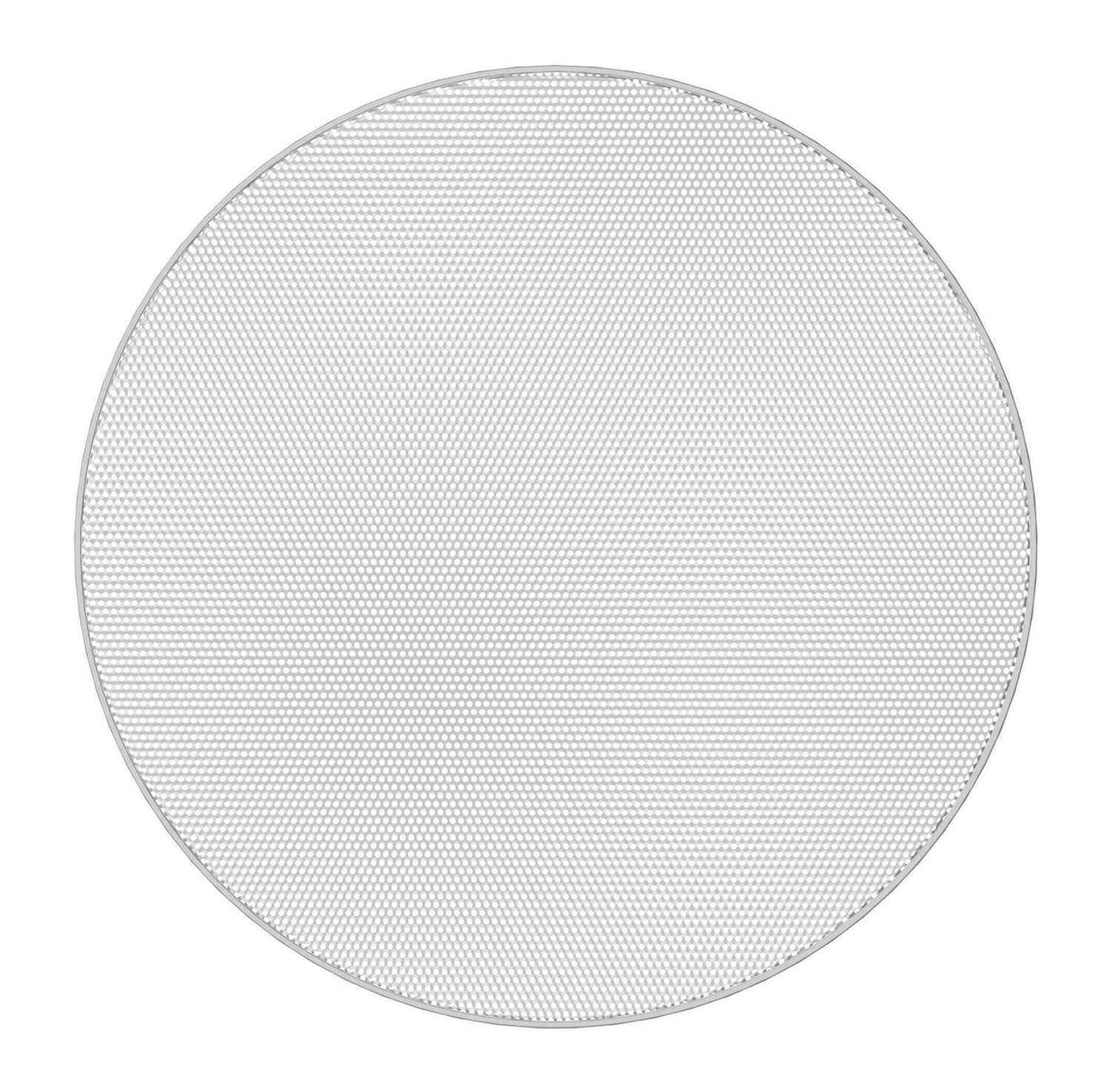

- Press Fit Edgeless Grille Provides Improved Aesthetics
Specs
General Information | |
Manufacturer | AtlasIED |
Manufacturer Part Number | FAP63TWEGR |
Manufacturer Website Address | http://www.atlassound.com |
Brand Name | AtlasIED |
Product Model | FAP63T-WEGR |
Product Name | FAP63T-WEGR Speaker |
Product Type | Speaker |
Technical Information | |
RMS Output Power | 75 W |
PMPO Output Power | 150 W |
Minimum Frequency Response | 50 Hz |
Maximum Frequency Response | 20 kHz |
Impedance | 8 Ohm |
Sensitivity | 90 dB |
Ingress Protection (IP) Rating | IP21 |
Physical Characteristics | |
Product Color | White |
Enclosure Type | Ported |
Form Factor | In-ceiling |
Ceiling Mountable | |
Durability | Corrosion Resistant |
Humidity Resistant | |
Miscellaneous | |
Application/Usage | Retail Store |
Restaurant | |
Recreation | |
Hotel | |
Convention Center | |
Casino | |
Warranty | |
Limited Warranty | 60 Month |
