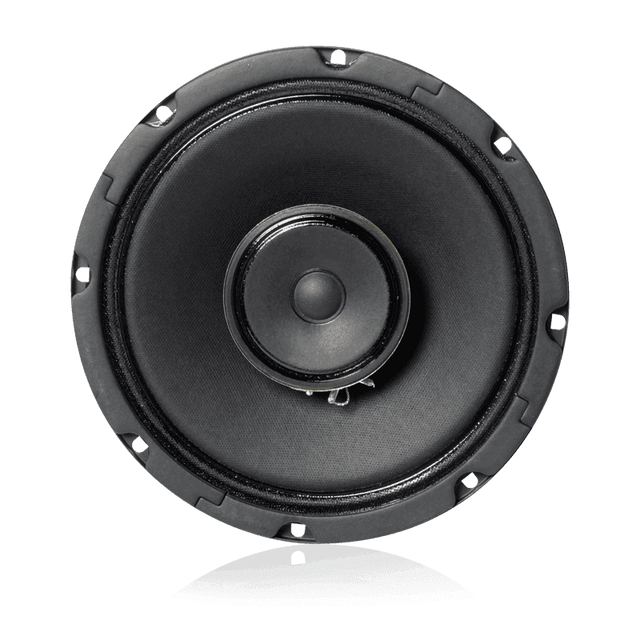

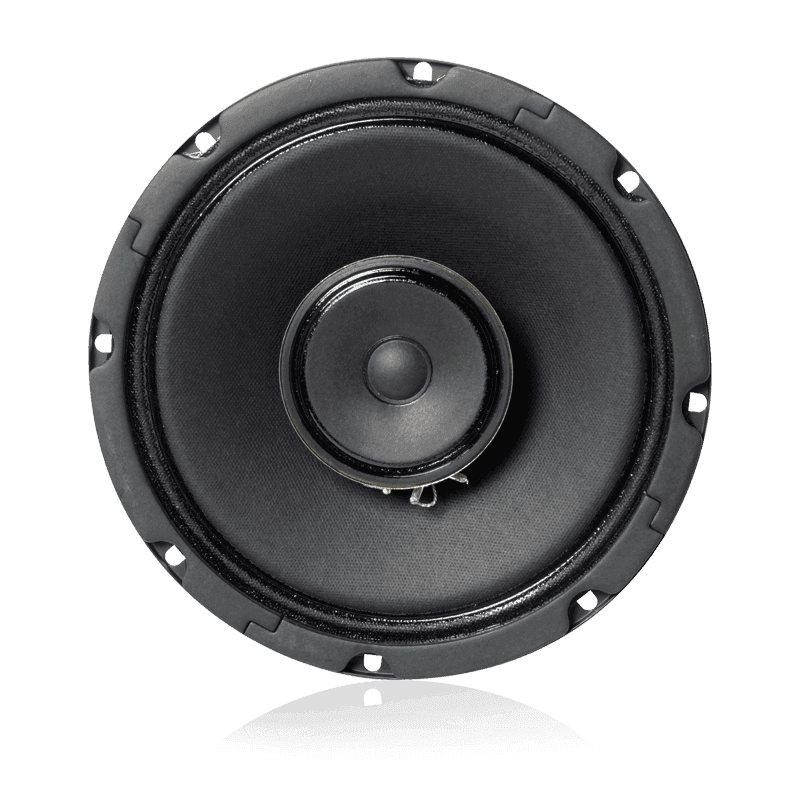

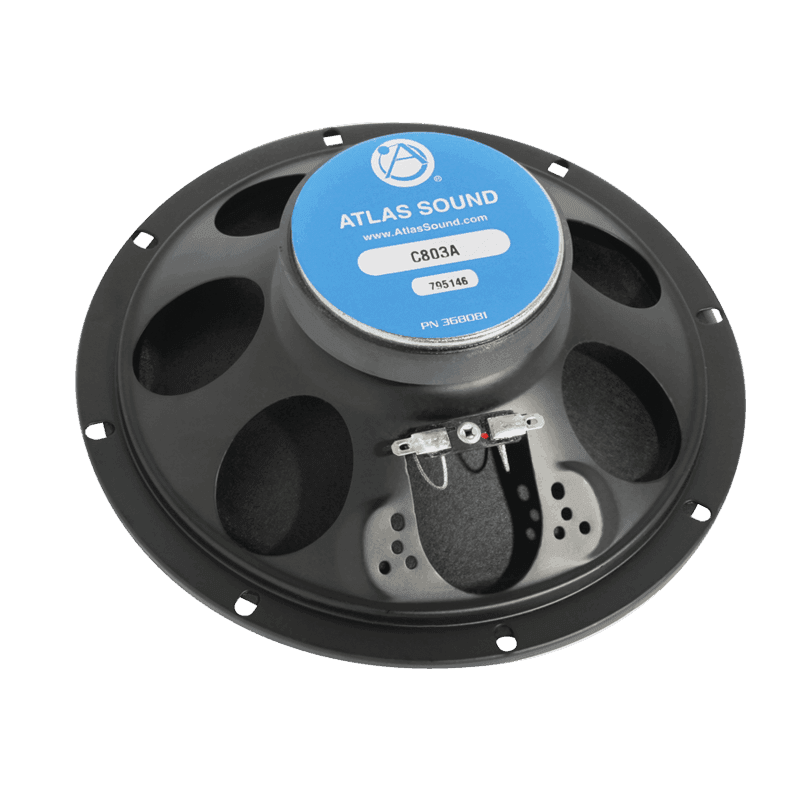

Atlas Sound C803AT167 8" In-Ceiling Coaxial Speaker with 16-Watt 70V Transformer
Atlas Sound C803AT167 8" In-Ceiling Coaxial Speaker with 16-Watt 70V Transformer is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Atlas Sound C803AT167 8" In-Ceiling Coaxial Speaker with 16-W...
Model C803A. High-quality, 16 Watt model C803A utilizes a post-mounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial loudspeaker features a 70Hz-15.5kHz, (±5dB) frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems. The C803A combines a full-size 8" (203mm) diameter low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10oz. (260g) ceramic magnet; the tweeter has a 2.35oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1W/1M).
The loudspeaker is available with six different factory-installed line-matching transformers to meet a variety of project requirements. Model C803A mounts a wide variety of Atlas Sound baffles and enclosures, with the optimum sealed enclosure size being .36 ft.
Features
- Industry Standard 8" (203mm) Coaxial, 16 Watt Loudspeaker
- Offers Proven Performance with Wide Frequency Response
- Post-Mounted Tweeter Adds Strength and a More Attractive Appearance
- Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use
Specs
| Speaker Type | Treated Paper |
| Sensitivity | 98dB (peak), 95dB (avg) |
| Frequency Response | 40Hz - 15kHz |
| Power Taps | 4, 8, & 16 Watts |
| Dispersion | 120° |
| Depth | 5 1/8" (13.0302 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 4.75 lbs (2.15 kgs) |
| Safety Listed | 1480 |
