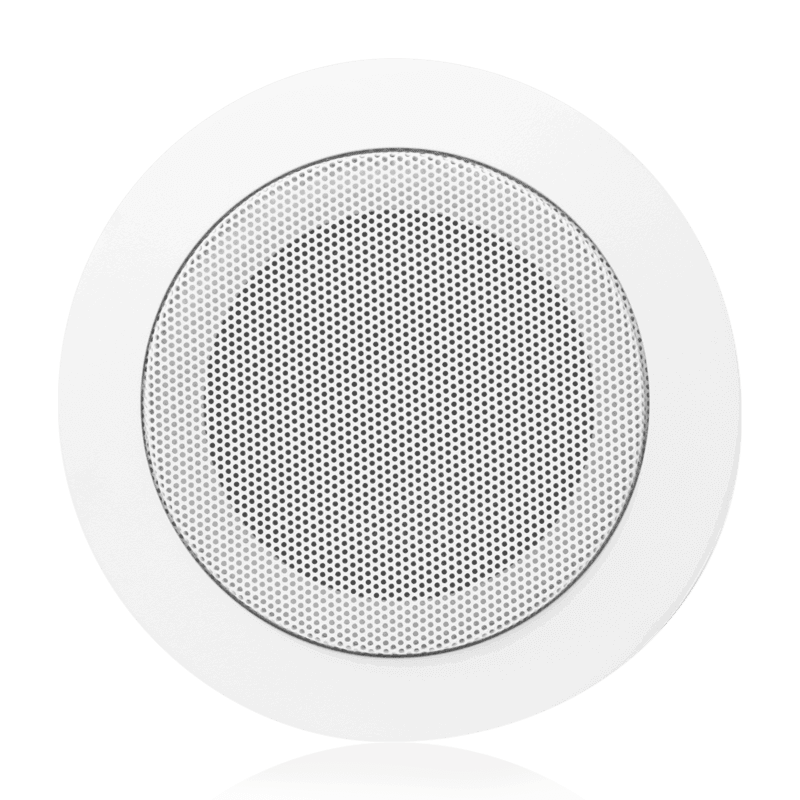

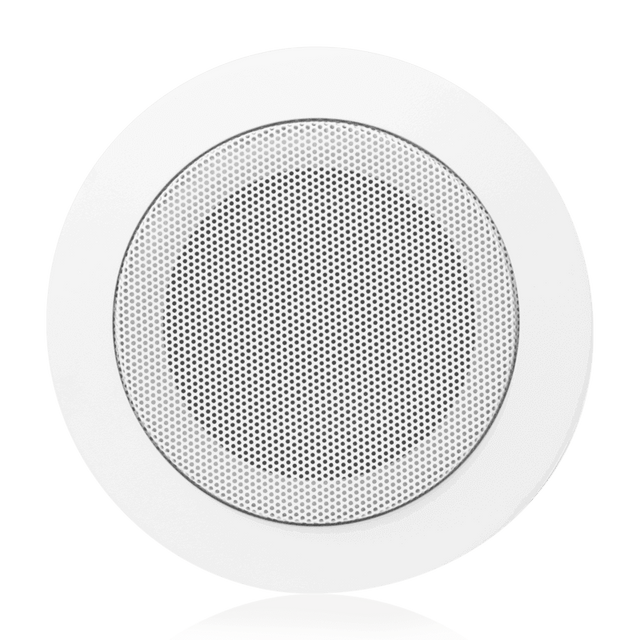

Atlas Sound BT720-4-T47 4" In-Ceiling Speaker with 4-Watt 70V Transformer and T720-4 Baffle
Atlas Sound BT720-4-T47 4" In-Ceiling Speaker with 4-Watt 70V Transformer and T720-4 Baffle is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Atlas Sound BT720-4-T47 4" In-Ceiling Speaker with 4-Watt 70V ...
Attractive B Series loudspeaker assemblies combine the sound performance of a full range 4" high compliance loudspeaker with the job site convenience and economy of a factory-assembled loudspeaker, transformer, and baffle. Models incorporate the popular AtlasIED FC104 high performance loudspeaker, recognized for full-range voice and music reproduction. Unit provides wide-angle sound dispersion to achieve desired coverage with fewer loudspeakers in distributed systems.
Each loudspeaker employs a 10 ounce ceramic magnet and a damped, high-compliance cone to provide excellent low-frequency reproduction with smooth extended response. Package includes factory-mounted, dual-voltage 25V/70.7V or 70.7V transformer and round or square grille with screw mount or torsion spring (T) installation where noted.
One model is equipped with the patented EZ-Mount support system. EZB Model is designed for application in suspended ceiling tile installations which do not require a protective enclosure. Assemblies include pre-mounted EZ brackets which are slotted to accept EZ mount support rails (provided). Rails attach with wingnuts and adjust vertically to accommodate varying ceiling depth requirements (Note: No tile bridge is required). All B Series packages are shipped assembled and ready for installation.
Features
- High compliance 4" loudspeaker for full-range audio reproduction in background music and paging systems
- Easy to install torsion spring grille
- 60Hz to 12kHz frequency response
- .5, 1, 2, and 4 Watts power taps
- 88dB (at 1W/1m) sensitivity
- Factory-assembled loudspeaker packages save time and money
Specs
| Speaker Type | 4" (102mm) High Compliance Loudspeaker Transformer / Baffle Assemblies |
| Sensitivity | 94db (1W/1M) |
| Frequency Response | 150Hz - 17kHz |
| Power Taps | .5, 1, 2, & 4 Watts |
| Dispersion | 135° / -6db, 2kHz Octave Band |
| Depth | 3.64" (63mm) |
| Diameter | 4" (10.16 cm) |
