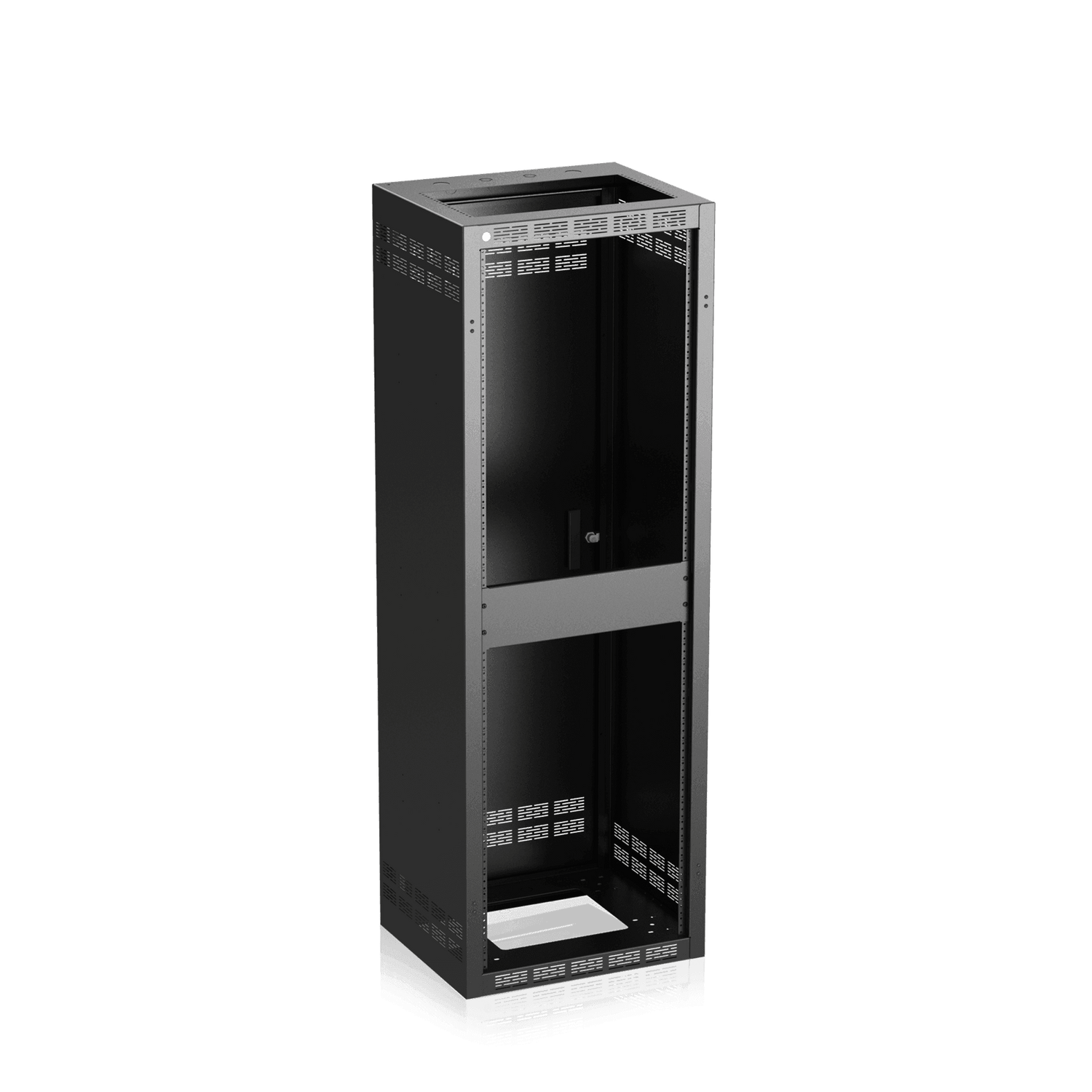

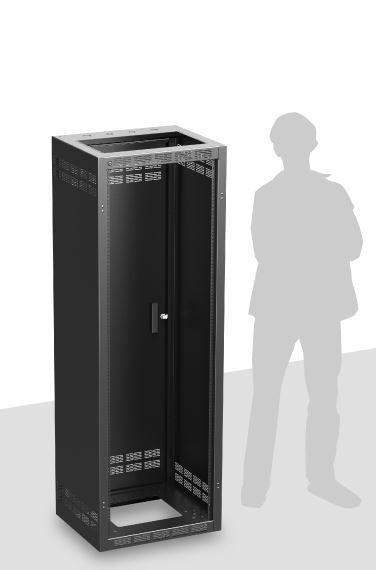

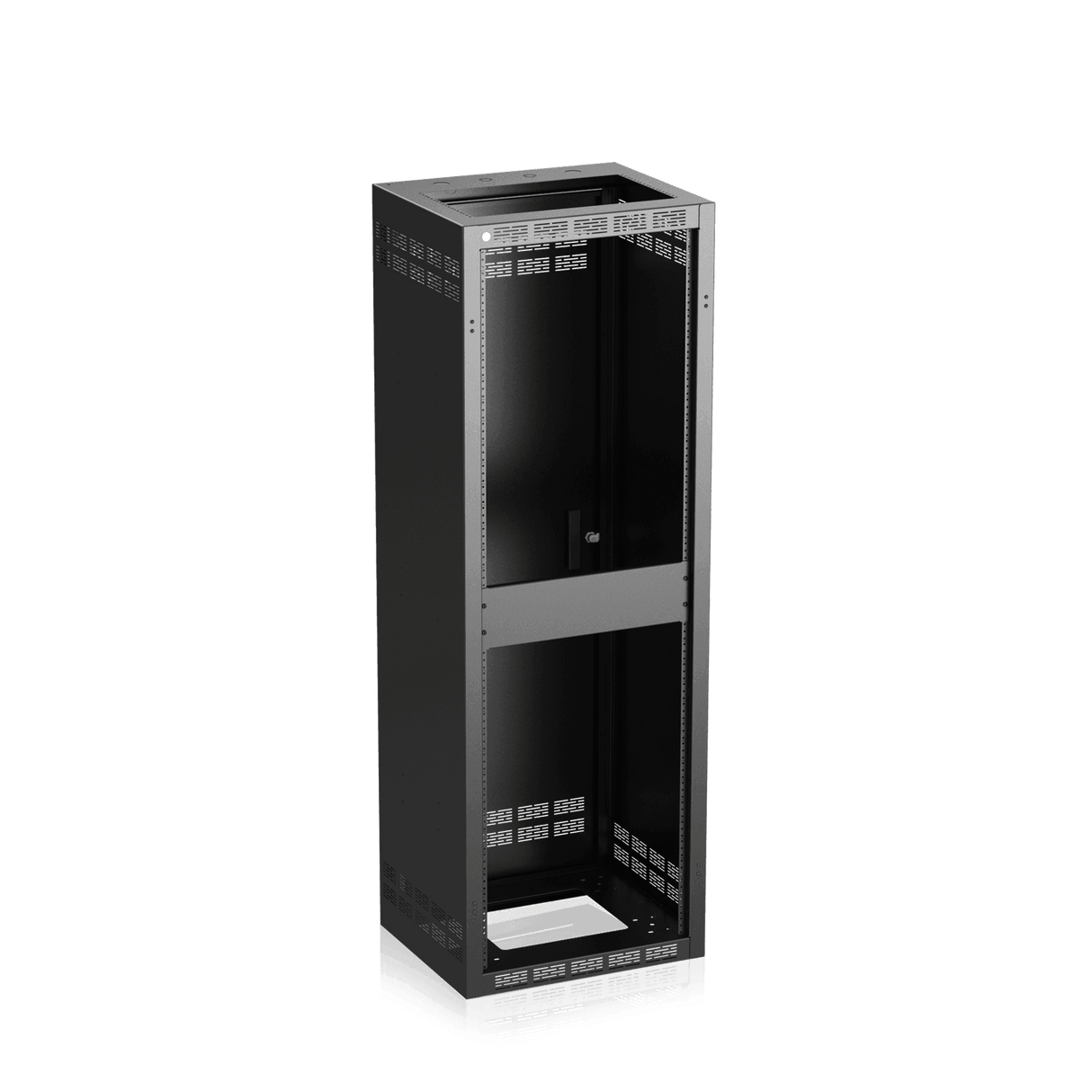

Atlas Sound 135-18 Stand-Alone Floor Rack with Fixed Rails 18.5 inch Deep, 35RU

The economical Atlas Sound 135-18 cabinet is 22 5/16" wide, 18 1/2" deep, and contains 35RU vertical panel spaces. The 135-18 cabinet includes one pair of 11 ga. CRS fixed mounting rails.

The serie is constructed of 16 ga. CRS and include base, top panel, side panels, mounting rails, a removable rear door with cylinder lock and flush door pull handle.

Offers several installer-friendly advantages, including an expanded 6RU opening in the cabinet top and bottom which can be left open for wire access and/or ventilation, or closed using a standard vent or solid panels. Rear doors (included with all models) are hung with quick-release spring hinges which allow them to be rotated 180° for right or left-hand opening. If a front door is ordered, it will be keyed differently than the rear door for security.

Rack rails are precision tapped 10-32 and recessed 11/16" (17.5mm). These plated rails include convenient RU indicator hash marks to aid in equipment alignment. Rails are standard E.I.A. 5/8"-5/8"-1/2" spacing.

Features

• 21RU to 44RU Heights, 18 1/2" Depth
• Fixed Rack Rails
• The Best Value in the Industry
• Locking Rear Door Offers Right- or Left-Hand Hinging Capability
• Increased Opening in Base Facilitates Wiring to Conduit or Below Floor Raceways
• Manufactured to E.I.A. Standards
• Includes Perforated Front, Rear and Side Vents for Heat Dissipation
• UL 1678 Listed

Specs
