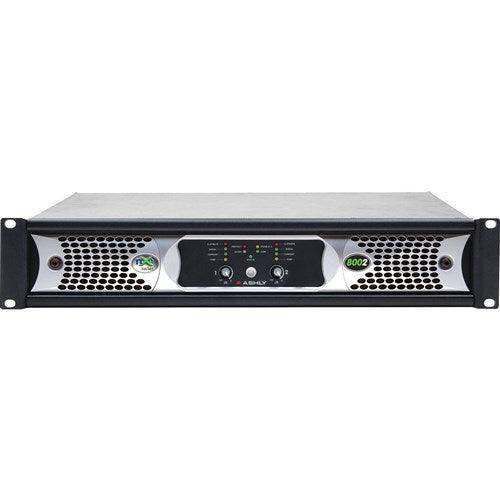

ASHLY NXE8002 Network Multi-Mode Power Amplifier 2x800 Watts at 2/4/8 Ohms or 25V/70V
ASHLY NXE8002 Network Multi-Mode Power Amplifier 2x800 Watts at 2/4/8 Ohms or 25V/70V is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
ASHLY NXE8002 Network Multi-Mode Power Amplifier 2x800 Watts at 2/4...

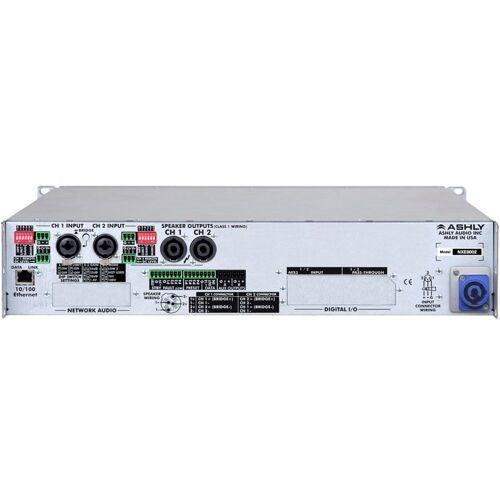

The rear panel has DIP switches for programming each channel output for either High-Z or Low-Z operation. This amplifier can be connected to a network with Ethernet control and features serial data control, aux preamp outputs, instant standby mode, preset recall, fault condition logic outputs, and optional network audio and digital audio capability, all controlled using the Protea Software Suite (not included).
Features
- Ethernet Control and monitoring of amplifier functions, with front panel COM activity LED
- Serial data port for use with Ashly remote control devices, or optional RS- 232 converter for third party controllers (INA-1)
- Use Protēa™ Software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation
- Real-Time Clock with Event Scheduler
- Instant Standby Mode 30% reduction in power consumption with on/off and Preset Recall, both via contact closure, software control, or event scheduler
- Programmable power-on delay
- Aux preamp outputs, and fault condition logic outputs
- Optional Cobranet® or Dante® and AES3 digital audio input with pass thru
- Rear panel DIP switches select low impedance (2, 4, and 8 Ohm), constant voltage (70V or 100V), high pass filter, limiter and input gain on each channel
- Ashly Energy Management System (EMS) for increased efficiency) automatic <1Wsleep-mode (defeatable)
- Switch mode power supply automatically detects 120V or 240V AC operation
- Extensive protection circuitry
- Continuously variable cooling fans
- Front panel power switch and level controls (can be disabled for security)
- Multiple internal power supplies provide increased channel separation and reliability
- Remote DC level control on each input channel (2 RU models only)
- Genuine Neutrik® connectors on 2 RU models for security, safety, and reliability
- Safety / Compliance: cTUVus, CE, FCC, RoHS
- Made in USA
Specs
| General Information | |
| Manufacturer | Ashly Audio, Inc |
| Manufacturer Part Number | NXE8002 |
| Manufacturer Website Address | http://www.ashly.com |
| Brand Name | Ashly |
| Product Series | NXE |
| Product Model | NXE8002 |
| Product Name | NXE8002 Amplifier |
| Product Type | Amplifier |
| Technical Information | |
| Minimum Frequency Response | 20 Hz |
| Maximum Frequency Response | 20 kHz |
| Impedance | 8 Ohm |
| Classification | D |
| Audio | |
| Audio Channels | 2 |
| RMS Output Power | 1600 W |
| Network & Communication | |
| Ethernet | Yes |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Miscellaneous | |
| Form Factor | Rack Mount |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 5 Year |
