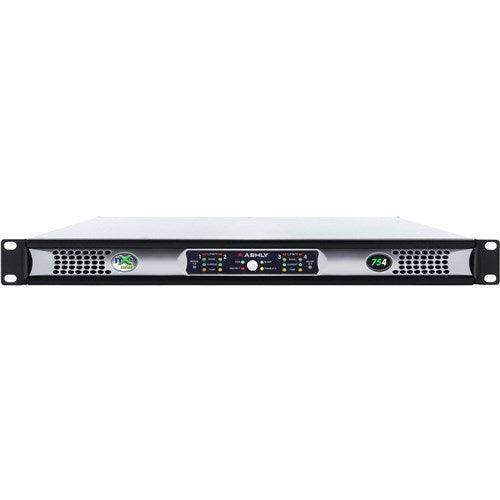

ASHLY NXE754 Network Multi-Mode Power Amplifier 4 x75 Watts at 2/4/8 Ohms or 25V/70V

• Ethernet Control and monitoring of amplifier functions, with front panel COM activity LED
• Serial data port for use with Ashly remote control devices, or optional RS- 232 converter for third party controllers (INA-1)
• Use Protēa™ Software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation
• Real-Time Clock with Event Scheduler
• Instant Standby Mode 30% reduction in power consumption with on/off and Preset Recall, both via contact closure, software control, or event scheduler
• Programmable power-on delay
• Aux preamp outputs, and fault condition logic outputs
• Optional Cobranet® or Dante® and AES3 digital audio input with pass thru

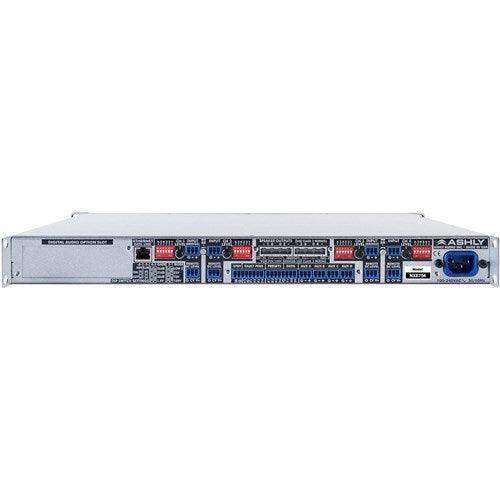

• Rear panel DIP switches select low impedance (2, 4, and 8 Ohm), constant voltage (70V or 100V), high pass filter, limiter and input gain on each channel
• Ashly Energy Management System (EMS) for increased efficiency) automatic <1Wsleep-mode (defeatable)
• Switch mode power supply automatically detects 120V or 240V AC operation
• Extensive protection circuitry
• Continuously variable cooling fans
• Front panel power switch and level controls (can be disabled for security)
• Multiple internal power supplies provide increased channel separation and reliability
• Remote DC level control on each input channel (2 RU models only)
• Genuine Neutrik® connectors on 2 RU models for security, safety, and reliability
• Safety / Compliance: cTUVus, CE, FCC, RoHS

Specs
