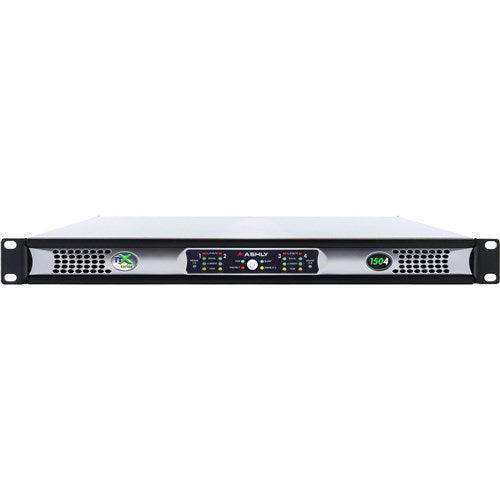

ASHLY NX1504 Power Amplifier 4 x 150 Watts @ 2 Ohms
ASHLY NX1504 Power Amplifier 4 x 150 Watts @ 2 Ohms is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
ASHLY NX1504 Power Amplifier 4 x 150 Watts @ 2 Ohms
Available in three amplifier series, NX offers 2 or 4-channel models as NX (base model series), NXE (networkable), or NXP (networkable + DSP).
All NX Models Include:
Class-D Switching Amplifier Technology.
NX features a universal switch-mode power supply with Power Factor Correction (PFC) that operates from 70VAC to 270VAC.
Multi-Mode Operation.

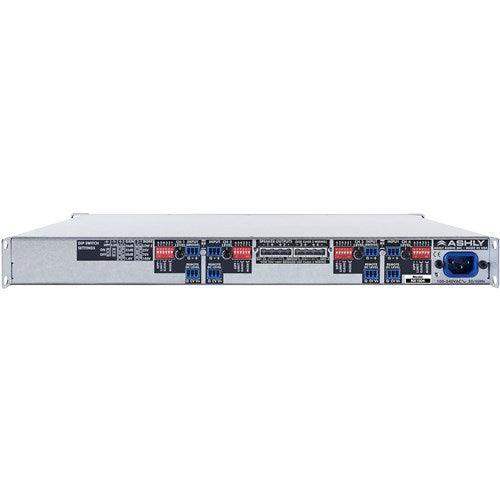

Selectable Outputs allow you to choose the desired output mode on each channel. Set the DIP-switch configuration for Low Impedance (2, 4, and 8 Ohm), or 25V, 70V, or 100V Constant Voltage and you're set to go.
Energy Efficiency.
NX has power-saving Ashly EMS™ (Energy Management System) which provides an automatic sleep-mode drawing less than 1 Watt (defeatable).
Features
- Selectable 80Hz 2nd-order Hi-pass filter, limiter, and input gain per channel
- Remote DC level control per channel
- Extensive protection circuitry, continuously variable cooling fan
- Euroblock input connectors
- Euroblock loudspeaker connectors
- Detachable AC mains line-cord connector
- Safety/Compliance: cTUVus (pending), CE, FCC, RoHS
Specs
| General Information | |
| Manufacturer | Ashly Audio, Inc |
| Manufacturer Part Number | NX1504 |
| Manufacturer Website Address | http://www.ashly.com |
| Brand Name | Ashly |
| Product Series | NX |
| Product Model | NX1504 |
| Product Name | NX1504 Amplifier |
| Product Type | Amplifier |
| Technical Information | |
| Minimum Frequency Response | 20 Hz |
| Maximum Frequency Response | 20 kHz |
| Impedance | 8 Ohm |
| Classification | D |
| Audio | |
| Audio Channels | 4 |
| RMS Output Power | 600 W |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 5 Year |
