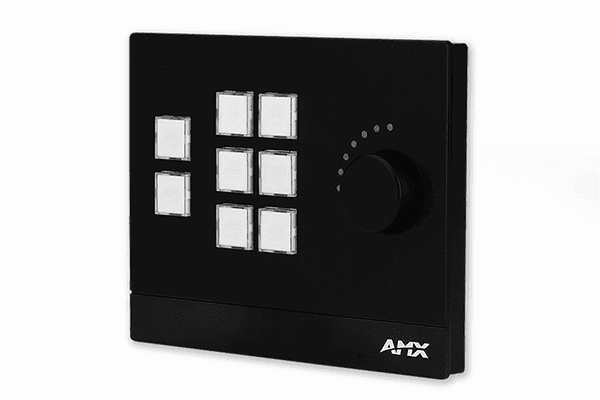

The MKP-108 / 8-Button Massio Keypad with Knob is a keypad-only version of the MCP-108 Massio ControlPad. The MKP-108 provides sleek Massio styling in any room, serving as a second user interface or as a primary UI in spaces that already contain a separate controller. The MKP-108 includes large, easy-to-read buttons and a smooth, responsive dial/knob in a stylish design that makes it simple for users to manage complex tasks with a single button press during meetings or classes. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.
1
of
2
Loading...
Product Questions? Ask Our Experts!
888.230.3661
sales@creationnetworks.net
Contact us today for your best package pricing and product availability.
AMX MKP-108L-BL Massio Keypad 8-button (Black) - FG5793-08L-BL
Regular price
$705.55
Unit price
/
Unavailable
Shipping calculated at checkout.
AMX | SKU:
FG5793-08L-BL
AMX MKP-108L-BL Massio Keypad 8-button (Black) - FG5793-08L-BL is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
AMX MKP-108L-BL Massio Keypad 8-button (Black) - FG5793-08L-BL
Regular price
$705.55
Unit price
/
Unavailable
Common Applications
- Ideal for small spaces utilizing NetLinx control, providing the ability to utilize customized code and additional ports of NetLinx Controllers, while maintaining a consistent user experience as the RPM-enabled Massio ControlPads.
- Perfect for Massio rooms requiring a second user interface in the same form factor to act as a client keypad to the Massio ControlPad.
Features
- Consistent Massio Aesthetics & Form Factor – Provides consistent look-and-feel in existing installations with Massio, with the same models and sizes as the Massio ControlPads
- Massio Styling in Customized Rooms – Provides Massio-style UI in rooms that require a separate controller
- Connects Via Standard Protocols (PoE) – Simplifies cabling and installation by minimizing cable runs and eliminates the need for power at the keypad location
Specifications
| Dimensions (HWD) | 4 11/16" x 6" x 1" (119 mm x 152.5 mm x 26 mm) |
| Weight | Approximately .41 lbs (.19 kg) |
| Mounting | Mount onto standard 2 gang US, UK, or EU back boxes |
| Power Consumption | Typical: 5 Watts, Voltage, DC (Typical): PoE (37V-57V), Voltage DC Range: 37 V-57 V per 802.3af spec, Power Connector: (1) RJ-45 Ethernet |
| Memory | Flash: 4 GB, Memory Card: 4 GB SD, DDRAM: 256 MB |
| Program Port | (1) USB Mini-B, USB |
| ID Pushbutton | Reset factory settings, reset factory image, toggle between DHCP or static IP addressing mode |
| FG Numbers | FG5793-08L-W (Landscape, White) FG5793-08L-BL (MKP-108L-B, Landscape, Black) |
