Allen & Heath AH-DLIVE-S7 dLive S Class 36 Fader Surface, Dual 12" touchscreens, 2 option I/O port, Hot Swap PSU, 27 SoftKeys

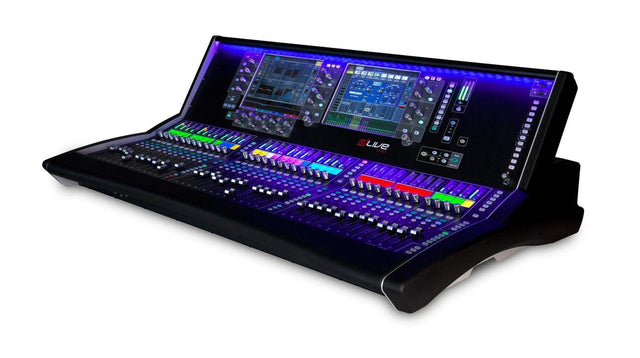

 The largest control surface in Allen & Heath's dLive family, the S7000 comes with a whopping 216 assignable fader strips. It features 36 faders over 6 layers, with dual 12" capacitive touchscreens and the innovative Harmony UI for the fastest workflow in the industry.

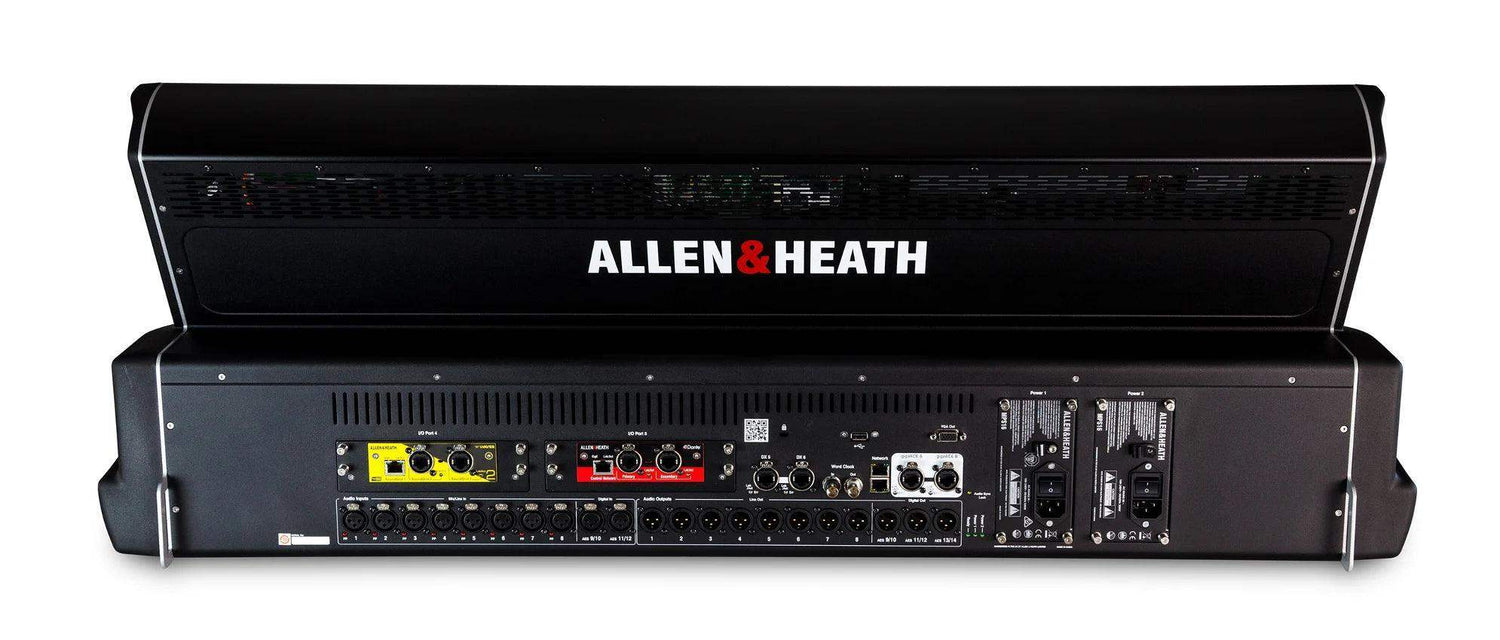

Built for professional touring, broadcast and prestige installations, the S7000 can be connected with a single CAT5e cable or a dual redundant mode Cat5e cable to the Mixrack/Mainframe. Two 128x128 channels option slots are also available on the back. With the S7000 surface you can choose the control for the end-user through custom layouts and user permissions.

Harmony User Interface: Where many digital consoles try to recreate the experience of using an analog mixer, dLive is a true digital native, drawing on Allen & Heath's familiarity with the ubiquitous smartphones and tablets that we all use without thinking. The single or twin 12" capacitive touchscreens on the dLive consoles feel instantly familiar, responding to every pinch, swipe, drag and drop exactly how you’d expect them to. Bespoke ‘widget’ areas can also be set up on the screens to keep track of scenes, meters, FX and other custom controls. The screen is framed by a set of one knob / one function rotary controls, allowing the creativity and immediacy of tactile control over key processing functions, working in harmony with the visual feedback displayed on the screen. The rotary knobs have been prototyped 20+ times to achieve optimal grip and precision control, and feature RGB illumination, with colors mapped to functions for instant visual orientation.

Transparent Workflow: As systems become ever more complex and as I/O counts grow exponentially, engineers can find themselves feeling increasingly removed from the action on stage as they are drawn more and more into managing the arsenal of technologies at their disposal. Throughout the dLive design process A&H's guiding aim has been to create fast and transparent workflows that allow the engineer to focus on the mix, not the mixer. The dLive layout is fully customizable, allowing the user to create a mixing interface that matches their own mental map of the show. Every input or mix can be assigned to any and every bank and / or layer, virtual scribble strips allow inputs and mixes to be clearly named and color coded for at-a-glance navigation, and the engineer has no less than 26 assignable SoftKeys at their disposal, plus 3 pages of 6 assignable rotaries per screen.

Features

• 36 faders
• Fully assignable layout – 216 fader strips
• Harmony UI integrates screen and wrap-around controls:
  • Dual 12” capacitive touchscreens
  • Gesture control – pinch, swipe, drag ‘n drop
  • Dedicated multi-mode EQ view
  • Configurable widget areas for Scenes, meters, FX and more
  • 3 pages of 6 assignable rotaries per screen
• 26 assignable SoftKeys
• Engineer’s Wedge and IEM fader strips
• Comprehensive multi-point metering
• Daylight visibility
• USB stereo recording and playback
• 8 XLR mic/line in, 8 XLR line out
• 2 digital st AES3 in, 3 digital st AES3 out
• Connection hub:
  • Dual redundant GigaACE gigabit link to MixRack
  • 1x redundant DX link for I/O expansion
  • 2x I/O Ports – 128 ch 96 kHz each
  • 2x Network ports
  • Wordclock BNC I/O
  • Video output
• Dual redundant, hot swappable power supply

Specs

• INPUTS:
  • Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
  • Mic/Line Preamp: Fully recallable
  • Input Sensitivity: -60 to +15dBu
  • Analog Gain: +5 to +60dB, 1dB steps
  • Pad: -20dB Active PAD
  • Maximum Input Level: +30dBu (PAD in)
  • Input Impedance:
    • >4 kOhm (Pad out)
    • >10 kOhm (Pad in)
  • Mic EIN: -127dB with 150 Ohm source
  • Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at 24V
  • Digital Inputs:
  • AES3 2Ch XLR, 2.5Vpp balanced; terminated 110 Ohm
  • SRC on each pair, range 32k-192kHz, with bypass option
• OUTPUTS:
  • Analog XLR Outputs: Balanced, Relay protected
  • Output Impedance: < 75 Ohm
  • Nominal Output: +4dBu = 0dB meter reading
  • Maximum Output Level: +22dBu
  • Residual Output Noise:
    • -92dBu (muted, 20-20kHz)
    • -90dBu (muted, 20-40kHz)
  • Digital Outputs:
  • AES3 2Ch XLR, 2.5Vpp balanced; terminated 110 Ohm
  • 96kHz sampling rate, switchable to 48kHz, 44.1kHz
• SYSTEM:
  • Dynamic Range: 110dB
  • System Signal to Noise: -92dB
  • Frequency Response: 20Hz - 30kHz ±0/-0.8dB
  • THD+N (analog in to out): 0.0015% @ +16dBu output, 1kHz; 0dB gain
  • Headroom: +18dB
  • Internal operating level: 0dBu
  • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
  • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
  • Meter Peak Indication: -3dBFS (+19dBu at XLR out)
  • Sampling Rate: 96kHz ± 20 PPM
  • ADC: 24-bit Delta-Sigma
  • DAC: 24-bit Delta-Sigma
  • Latency:
    • + 5 samples, Suface to Mixrack (GigaACE hop)
    • + 8 samples, DX32 to Mixrack (DX hop)
  • Operating Temperature Range: 32°F to 95°F (0° to 35°C)
  • Mains Power (MPS16): 100-240V AC, 47-63Hz, 300W max
• DIMENSIONS & WEIGHTS:
  • Unboxed:
  • Dimensions: 52.2" x 28.7" x 16.3" (1325 x 728 x 413 mm)
  • Weight: 90 lbs. (41 kg)
  • Boxed:
  • Dimensions: 58.5" x 36.2" x 22" (1485 x 920 x 560 mm)
  • Weight: 123.5 lbs. (56kg)
