Blackmagic Design HyperDeck Studio HD Mini - HYPERD/ST/DAHM

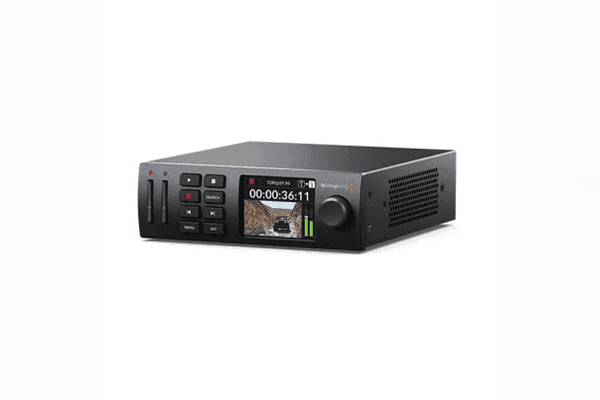

Take a compact broadcast-quality record/playback deck with you on location, in the studio, or built into a rack with the Blackmagic Design HyperDeck Studio HD Mini. The 1 RU tall recorder is 1/3 of a rack wide and powers from 100 to 240 VAC, or via an optional 12 VDC power supply for portability. Featuring one 3G-SDI input, one each HDMI and 3G-SDI output, and a USB Type-C webcam output, the recorder is flexible, enabling you to input, record, and output/stream simultaneously. Supporting both reference and timecode in/out, this unit fits perfectly into a broadcast environment, and you can use one recorder to create an ISO recording of each camera with perfect sync for live and post-production work.

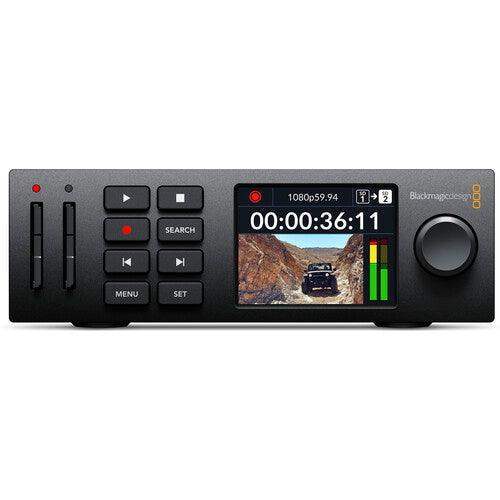

Two SD card slots allow you to capture with virtually unlimited recording time, and the unit also supports recording to USB disks via the USB Type-C output port. The HyperDeck Studio HD Mini features a front-panel button control and a jog/shuttle wheel for an analog scrubbing feel. RS-422 control is supported for external control, and you can also control the unit using either the USB port or over Ethernet at 1G speeds for faster deck control and file transfers via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video.
- ProRes: Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime.
- DNxHD: DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps
- H.264: H.264 SDI 4:2:2 10-bit, H.264 High 420 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60
Features
- 1 x 3G-SDI Input
- 1 x HDMI and 1 x 3G-SDI Outputs
- Records ProRes, DNxHD, and H.264
- Records in H.264 SDI 4:2:2 10-Bit
- Front-Panel Buttons, Jog Wheel, LCD
- Timecode and Reference Input/Output
- 1/3 Rack-Mountable Form Factor
- USB Type-C, 1G Ethernet, RS-422
Specifications
Blackmagic Design HyperDeck Studio HD Mini Specs

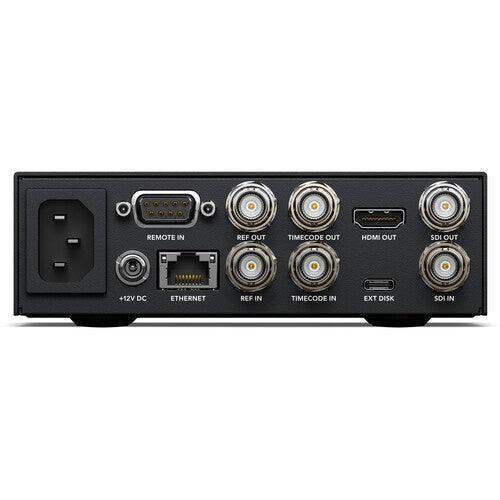

| Video Input | 1 x BNC, 3G-SDI |
| Video Output | 1 x BNC, 3G-SDI 1 x HDMI Type A 1 x USB Type-C (Webcam or External Recording of SD, HD, 2K) |
| Timecode | In: 1 x BNC out: 1 x BNC |
| Reference | Tri-Sync or Black Burst Input Connector: 1 x BNC Output Connector: 1 x BNC |
| Audio Input | None (Embedded Audio Only, 16 Channels) |
| Audio Output | None (Embedded Audio Only, 16 Channels SDI, 8 Channels HDMI) |
| Device Control | 1 x RS-422 Deck Control Port on DB9 Female |
| Ethernet | 1 x RJ45 for Remote Operation |
| Media Interface | 2 x SD Slots Media Type: UHS I and UHS II Format: ExFAT or HFS+ |
| Supported Resolutions | 2K 2048 x 1080p: 30/29.97/25/24/23.98 HD 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50 SD NTSC PAL |
| SDI Compliance | SMPTE 259M//292M/296M/372M/424M/425M Level A and B SMPTE 2084 SMPTE 2108‑1 |
| SDI Metadata Support | HD RP188 and Closed Captioning CEA‑708 HDR Metadata Supported on SDI |
| Video Sampling | 4:2:2 YUV |
| Color Depth | 10-Bit |
| Color Space | REC 601 REC 709 REC 2020 |
| HDR Support | Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
| Multi Rate Support | Autodetection of SD and HD |
| Audio Sampling | Television Standard 48 kHz, 24-Bit |
| Supported Codecs |
ProRes
DNxHD
¿H.264
|
| Operating System | macOS: 10.15(Catalina), 11.5 (Big Sur) or Later Windows: 10 64-Bit |
| Rack Height | 1 RU |
| Power Supply | AC 100 to 240 VAC, 50/60 Hz DC 12 VDC; 1 x Locking 5.5 mm Barrel |
| Operating Temperature | 41 to 122°F / 5 to 50°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Relative Humidity | 0 to 90% Non-Condensing |
| Dimensions | 6.96 x 5.51 x 1.74" / 17.68 x 14 x 4.42 cm |
| Weight | 1.8 lb / 0.82 kg |
| Package Weight | 2.3 lb |
| Box Dimensions (LxWxH) | 11.6 x 7 x 2.6" |
