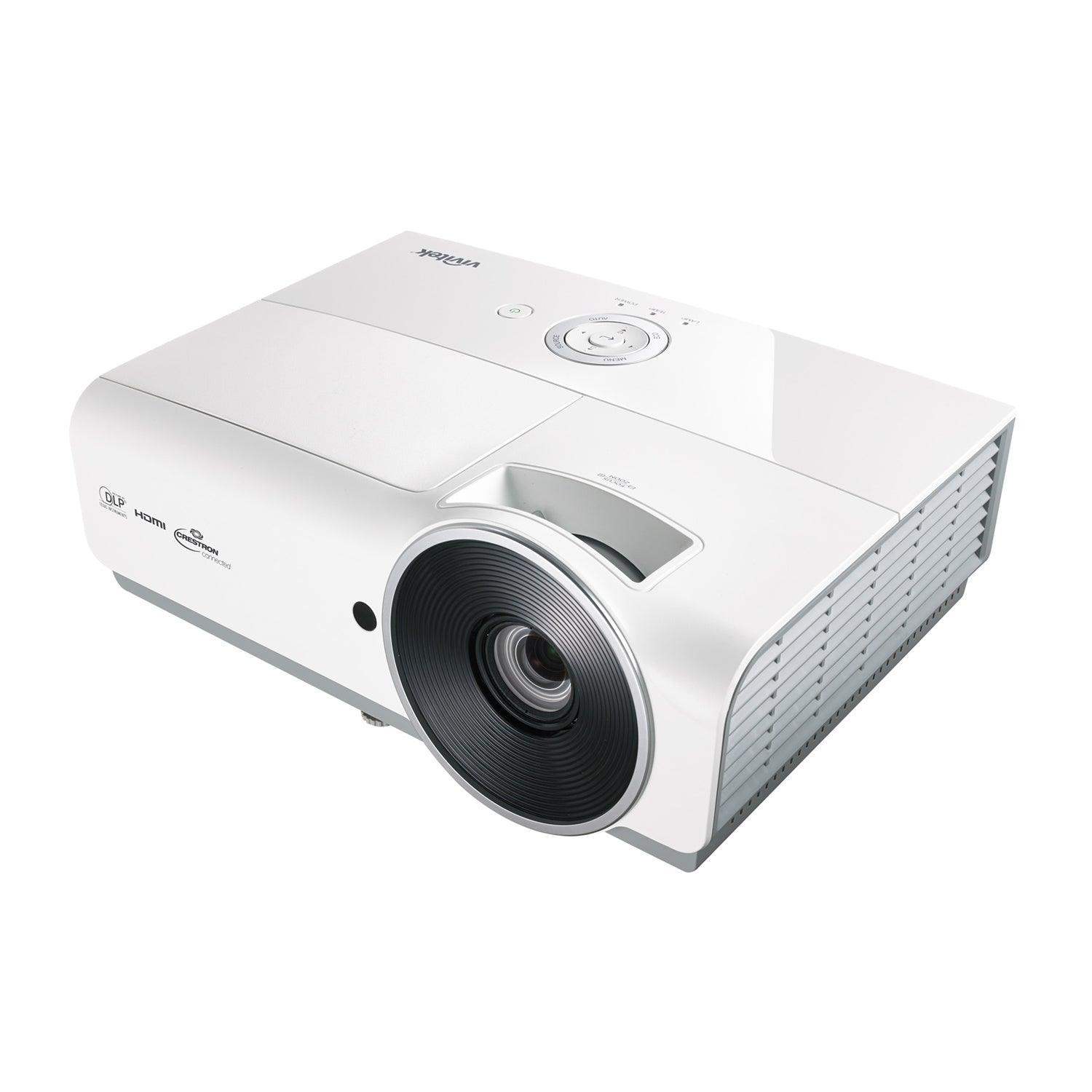

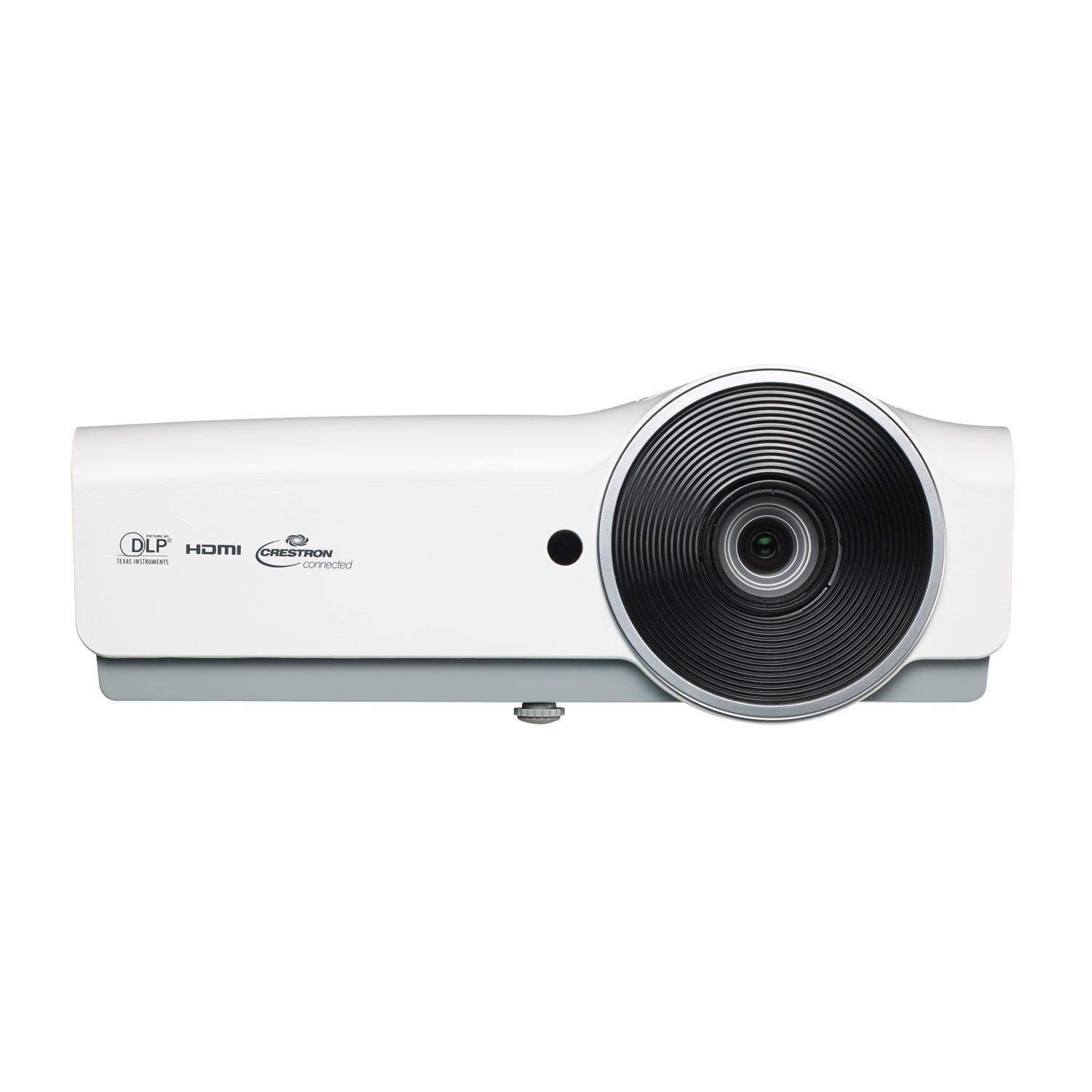

Vivitek DX813 XGA 3800 Lumens 3500/5000 (White)

$1,099.00

Shipping calculated at checkout.

Vivitek | SKU: 814964339898

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

The Vivitek DX813 XGA 3D digital projector combines the best in performance, versatility and value. Featuring DLP® and BrilliantColor™ technologies from Texas Instruments, the DX813 displays bright, brilliant images. With extensive connectivity options and a rapid startup/shutdown function, the DX813's ease-of-use comes in handy when sharing multimedia presentations.The Vivitek DX813 is the projector you want for widescreen versatility: Mini USB service connection, USB Type A (Power only), DC-12V, LAN for internet, Video for everyday video devices, Right and Left Audio, VGA-Out, Rs232c, VGA-In, Audio-Out, Audio-In, Microphone-In, S-video, and HDMI v1.4.

Features

Native XGA resolution and displays up to WUXGA
3600 lumens of brightness with a 15,000:1 contrast
3D-Ready via DLP® Link™, Full 3D from Blu-Ray or broadcasted via cable or satellite
6-segment colorwheel for accurate and detailed images
Sealed optical engine to keep dust out and improve performance
High-efficiency lamps that last up to 7000 hours (in Dynamic Eco mode)
Rated intensive use for color consistency over time* (*12 hours per day without yellowing or discoloration of image)
VGA-out for display on a secondary monitor
Keypad lock prevents accidental system adjustments
Enhanced color and display adjustments
Top-loading, sliding cover for quick and easy lamp replacement
RJ45/RS-232c for integration and system administration. Integrated network monitoring and management solutions (product certified) including Crestron® RoomView™, Extron, AMX SSDP, and Telnet
12V trigger for simple screen/projector automation
Anti-theft security features include: Kensington® security slot, and security bar

Specs

Brightness	3600 Lumens
Native Resolution	XGA (1024 x 768), 4:3 Format
Max. Resolution	WUXGA (1920x1200) @60Hz
Contrast Ratio	15,000:1 Contrast Ratio (Full on/off)
Lamp Life and Type	3500/5000/7000 Hours (Standard/Economy/Dynamic Mode), 240W
Lamp Part #	5811119560-SVV
Display Type	Single 0.55" DLP® Technology by Texas Instruments
Throw Ratio (±3%)	1.6 to 1.92:1 (Distance/Width)
Image Size (Diagonal)	25.6" - 256.4" (0.65 - 6.5 m)
Projection Distance	3.28' to 32.8' (1 to 10m)
Projection Lens	F=2.5~2.72, f=17.81~21.35mm
Zoom Ratio	1.2:1 Manual Zoom/Focus Lens
Aspect Ratio	4:3 Native, 16:9 Compatible
Offset	113.9%
Keystone Correction	±40° Vertical; ±40 Steps
Color Spectrum	1.07 Billion
Horizontal Scan Rate	15, 31 to 91.4 KHz
Vertical Scan Rate	24 ~ 30Hz, 47 ~ 120Hz
Speaker	10 Watt Mono
Remote Control	Full Featured IR Remote with Laser Pointer
Projection Method	Table Top or Ceiling Mount (Front or Rear)
Uniformity	85%
Computer Compatibility	WUXGA, UXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible
Video Compatibility	SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
3D Compatibility	Yes (DLP® Link™, Full 3D from Blu-Ray or broadcasted via cable or satellite)
3D Video Compatibility	720p 50/60 Frame Packing, 1080i 50/60 Side-by-Side, 1080p24 Frame Packing

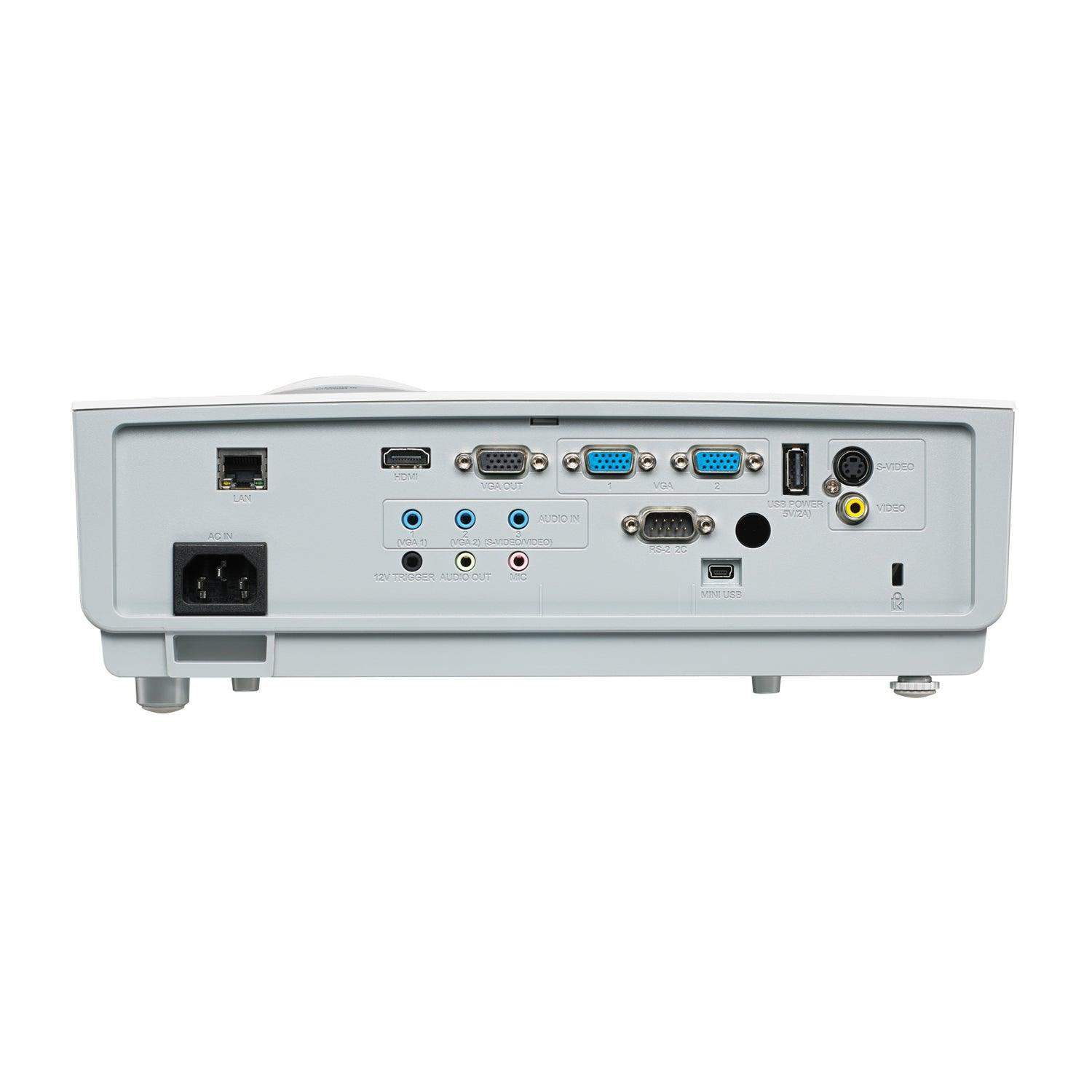

I/O Connection Ports	HDMI v1.4, VGA-In (X2), S- Video, Composite Video, VGA-Out, Audio-In (Mini-Jack) x3, Audio-Out (Mini-Jack), Microphone-In (Mini-Jack), RJ45, RS-232c, 12V Trigger, USB Type A (Power only), Mini USB (Service)
Security	Kensington® Lock Port
Weight	6.75lbs (3.06kg)
Dimensions (W x H x D)	12.36" x 8.50" x 4.96" (314 x 216 x 126 mm)
Noise Level	36dB/32dB (Standard/Economy Mode)
Power	Supply: AC 100-240V, 50/60Hz Consumption: 310W (Normal Mode), 250W (Economy Mode), <0.5W (Standby Mode)
Operating Temperature	41 to 104°F (5 to 40°C)
Warranty	5-Year Limited Parts/Labor, 1-Year Lamp
Standard Accessories	AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, Carrying Case, User Manual (CD), Lens Cap, Warranty Card
