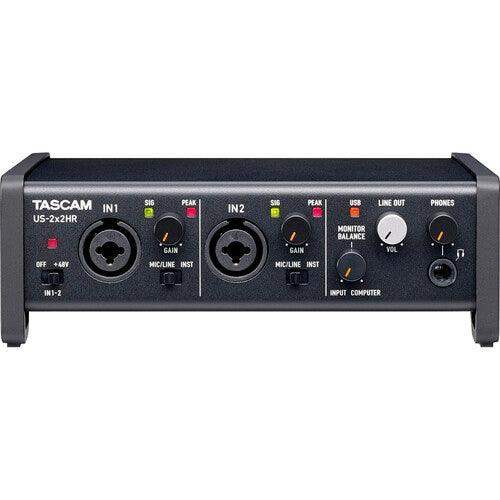

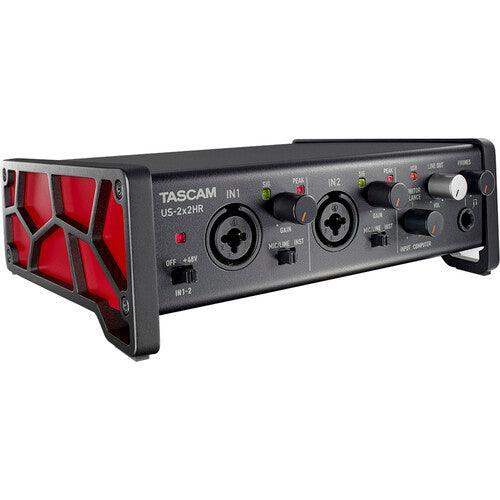

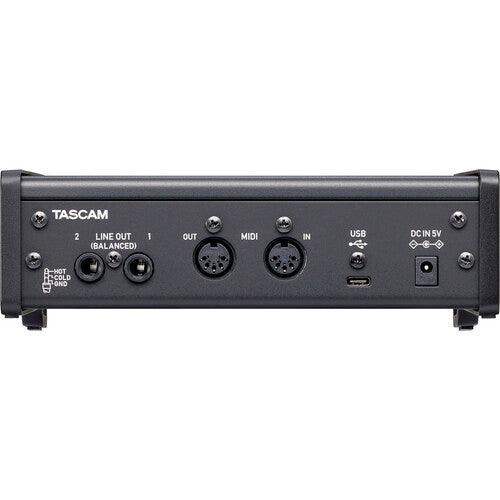

Tascam US-2X2HR Desktop 2x2 USB Type-C Audio/MIDI Interface

Authorized Dealer

$199.00 $319.00

Shipping calculated at checkout.

Tascam | SKU: US-2X2HR

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

Record or livestream songs, podcasts, and commentary in high resolution to your Mac/Windows computer or iOS mobile device with the TASCAM US-2x2HR, a desktop 2x2 USB Type-C audio/MIDI interface designed to deliver comfortable, user-friendly operation, clean audio quality, and simultaneous input of two mics or instruments for home recordists and traveling content creators. The inclusion of MIDI ports gives producers an easy way to integrate MIDI gear into their music production setups.

With its two Ultra-HDDA mic/line/instrument preamps, the US-2x2HR allows you to track or overdub two different sources at the same time. Phantom power is onboard for condenser mics and LED signal/peak indicators are provided to help you properly set levels. The stereo balanced 1/4" line outs and 1/4" headphone output enable monitoring through speakers, headphones, or both, each with its own level control. Additional feature enhancements include virtual loopback for podcasting and livestreaming, zero-latency adjustable direct monitoring, and an empowering software bundle.

Ultra-HDDA Mic Preamps

Ultra-HDDA (High Definition Discrete Architecture) mic preamp design developed in-house and combined with a newly improved audio circuit for enhanced audio performance and transparency
Low noise level with EIN rating of -128 dBu and signal-to-noise ratio of 110 dB
Microphone preamps with phantom power and gain range of 56 dB supports dynamic, condenser, and ribbon microphones

Front-Panel Mic/Line/Instrument Inputs

Two microphone/line/instrument inputs feature XLR-1/4" combo connectors and switchable +48V phantom power for condenser microphones
Line / Hi-Z switching to accommodate balanced line-level signals from professional processors and synthesizers or high-impedance signals for direct recording of electric guitar and bass

High-Resolution Recording

Records at up to 192 kHz / 24-bit resolution
Mic preamps and A/D converters work together to capture the clearest signal path, at 192 kHz or at lower sampling rates

Compatible with Computers and iOS Mobile Devices

USB Type-C 2.0 computer connection (includes USB Type-C to USB Type-A cable) supplies appropriate bandwidth, even for multichannel 192 kHz recordings
Works with ASIO, WDM, or Core Audio drivers
USB bus-powered for mobile recording with computer
Connects with iPad, iPhone, and other iOS devices (requires separately available 5 VDC power adapter; Apple Camera Connection Kit required for use with Lightning-equipped devices)

Zero-Latency Monitoring

Direct monitoring path provides zero-latency monitoring of the input signal before it is sent to the computer
Adjustable monitor mix blend between input and computer via the front panel

Monitoring Options

Balanced stereo 1/4" output suitable for connection to powered monitors
Standard 1/4" TRS headphone output jack
Separate controls for line and headphone output volumes
Input monitoring can be set to stereo or mono via the software settings panel

Sleek Industrial Design

Solid and practical design intended to withstand long hours of hard use
Robust metal jacket improves durability and combines with diecast aluminum side panels to provide a sleek, eye-catching design
Angled design is optimized for desktop viewing and operation
LED indicators for phantom power, USB connection, signal presence, and peak

Loopback for Podcasting and Livestreaming

Loopback function allows the audio from the computer to be returned to the streaming software for playback during livestreams
Selectable mono/stereo audio mode via software settings panel
Supports OBS (Open Broadcaster Software) for easy recording and streaming

MIDI I/O

Standard 5-pin DIN MIDI input and output connectors
Allows MIDI external devices such as keyboards, drum machines, and controllers to be synchronized and controlled

Enhanced Audio Engine

Increased stability in native driver
Audio buffer size can be as low as 4 samples (Windows only) to give the best performance

Bundled Software

Cubase LE: Compact Mac/Windows DAW with the basic tools for recording, editing, and mixing everything from the initial musical idea to the final track
Cubasis LE: Compact version of Steinberg’s streamlined, multitouch sequencer for the iPad
IK Multimedia SampleTank SE: Virtual instrument with a massive 30GB sound library encompassing more than 2000 different musical instruments
Auto-Tune Unlimited (3-Month Subscription): Comprehensive suite of industry-standard pitch correction and vocal effects

Features

Musicians, Podcasters, and Producers
USB Type-C / USB Type-A Connectivity
2 Mic/Line/Instrument Preamps
1 Headphone Out, Stereo 1/4" Line Out
24-Bit / 192 kHz AD/DA Converters
Bus Powered / Mac, Windows, iOS
Phantom Power, Direct Monitor, MIDI I/O
LED Signal/Peak Indicators
Virtual Loopback for Livestreaming
DAWs, Virtual Instrument, Auto-Tunex

Specifications

TASCAM US-2X2HR Specs

Form Factor	Desktop
Display	None
Channels of I/O	Analog: 2 Inputs / 2 Outputs
Maximum Sampling Rate	192 kHz / 24-Bit
Number of Microphone Preamps	2 Preamps
Input Level Adjustment	2 x Knob
Expansion Slots	None

Signal Processing

Pad	None
Gain/Trim Range	Mic/Line/Hi-Z Inputs: 56 dB
High-Pass Filter	None
Solo/Mute	None

Connectivity

Analog Audio I/O	2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel) 2 x 1/4" TRS Balanced Line Output 1 x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Phantom Power	48 V, Selectable On/Off (Applied to All Inputs)
Digital Audio I/O	None
Host Connection / USB	1 x USB-C
Host Connection Protocol	USB 2.0
USB (Non-Host)	None
Sync I/O	None
Network I/O	None
MIDI I/O	1 x DIN 5-Pin Input 1 x DIN 5-Pin Output
Wireless Connectivity	None

Performance

Frequency Response	Mic, Line Inputs: 20 Hz to 20 kHz +0/-0.4 dB (at 44.1/48 kHz, JEITA) 20 Hz to 40 kHz +0/-0.4 dB (at 88.2/96 kHz, JEITA) Line Outputs: 20 Hz to 20 kHz +0.2/-0.1 dB (at 44.1/48 kHz, JEITA) 20 Hz to 40 kHz +0.2/-0.4 dB (at 88.2/96 kHz, JEITA)
Maximum Input Level	Mic Inputs: +9 dBu Line Inputs: +20 dBu Hi-Z Inputs: +10 dBV
Maximum Output Level	Line Outputs: +20 dBu
Headphone Output Power	18 mW per Channel into 32 Ohms (0.1% THD)
Impedance	Mic Inputs: 2.2 Kilohms Line Inputs: 10 Kilohms Hi-Z Inputs: ≥ 1 Megohm Line Outputs: 210 Ohms
SNR	Mic Inputs: 110 dB (A-Weighted, Min Gain) Line Inputs: 108 dB (A-Weighted, Min Gain) Line Outputs: 110 dB (A-Weighted, Max Gain)
THD+N	Mic Inputs: 0.0013% (1 kHz, Min Gain) Line Inputs: 0.0011% (1 kHz, Min Gain) Line Outputs: 0.0012% (1 kHz)
Crosstalk	≥ 95 dB (1 kHz)
EIN	-128 dBu

Digital Audio

Sample Rates	44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Sample Rate Conversion	None
Bit Depths	24-Bit
Sync Sources	Internal

Audio Storage & Playback

Memory Card Slot

None

Compatibility

OS Compatibility	macOS 10.13 macOS 11 or Later Windows 7 or Later iPadOS 13 or Later iOS 11 or Later *As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Included Software	Cubase LE
Compatible Software (Not Included)	Any Core Audio (Mac) Compliant Software
Included Plug-Ins	Virtual Instruments: SampleTank SE
Supported Drivers/API & Plug-Ins	Core Audio (Mac) ASIO WDM
Processor Requirement	2 GHz or Better
RAM Requirements	2 GB
Mobile Device Compatibility	iPad iPhone
Required Hardware	Available USB 2.0 Port USB Cable (Included)
Internet Connection	Required for Registration, Software/Driver Download

Power

Power Requirements	AC/DC Power Adapter (Not Included) or USB Bus Power
AC/DC Power Adapter	5 VDC, Center-Positive (Not Included)
Power Consumption	1.75 W

Physical

Operating Temperature	41 to 95°F / 5 to 35°C
Dimensions	7.3 x 6.3 x 2.6" / 18.6 x 16 x 6.5 cm (Including Controls and Protrusions)
Weight	2.4 lb / 1.1 kg

Packaging Info

Package Weight	3.215 lb
Box Dimensions (LxWxH)	8.4 x 8 x 4.1"
