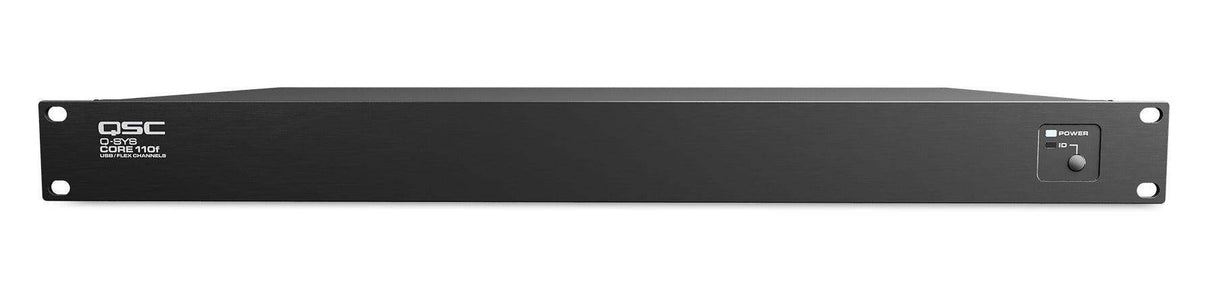

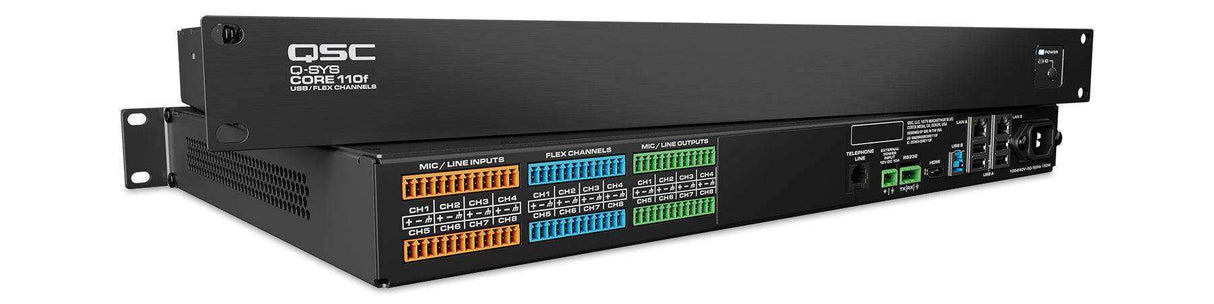

Q-SYS Core 110f v2 Audio, Video & Control Processor

Integrated AV Processing for Scalable Commercial Environments

Fully Integrated AV and Control Platform for Medium to Enterprise Deployments

The Q-SYS Core 110f v2 processor delivers a next-generation audio, video, and control (AV&C) platform for medium-sized rooms to enterprise-wide applications. Engineered for flexibility, scalability, and software-defined functionality, it provides integrators with a robust, centralized solution for managing AV infrastructures across diverse environments.

With 128x128 networked audio channels, 24 analog I/O (including 8 Flex channels), support for up to 4 VoIP instances, and built-in USB AV bridging, the Core 110f v2 streamlines deployment in unified communications, hybrid meeting environments, and mission-critical control spaces.

Key Features & Benefits

• Flexible I/O Options:
  24 analog channels with 8 configurable Flex channels, plus USB, POTS, and VoIP support deliver industry-leading I/O density in a compact chassis.

• Scalable Network Audio:
  128x128 Q-LAN/AES67 audio channels, up to 32x32 Dante (8x8 included), and support for Q-SYS NM-T1 network microphones enable powerful, interoperable configurations.

• 16 AEC Processors:
  Provides advanced acoustic echo cancellation for clear audio performance in conferencing and telepresence environments.

• USB AV Bridging:
  16x16 USB audio channels and native Q-SYS camera support for seamless integration with video conferencing platforms.

• Unified Software Platform:
  Configure, control, and monitor AV systems with a single software design tool — reducing training time and simplifying system design.

• Enterprise-Grade IT Integration:
  Supports Layer 3 routing, SNMP monitoring, LDAP integration, and software-based security including encrypted transport and cryptographically signed firmware.

• No GPIO or OLED:
  Updated hardware streamlines manufacturing while preserving critical functionality, improving product availability and sustainability.

Applications

Ideal for:

• Boardrooms

• Conference rooms

• Houses of worship

• Government facilities

• Commercial meeting spaces

• Multi-purpose rooms

• Training centers

• All-hands spaces

• Higher education AV deployments

• Enterprise-level AV integration

Competitive Advantages

• Class-Leading Cost-to-I/O Ratio:
  Delivers unmatched input/output capacity in a single SKU chassis, minimizing install complexity and cost.

• Near Card-Based DSP Flexibility:
  The 8 Flex Channels offer modular adaptability similar to card-based systems—without needing custom hardware orders.

• Software-Based Conferencing Suite:
  Built-in SIP softphones, automixers, gain sharing, and role-based access controls – no external appliances required.

• True IT-Friendly OS:
  Unlike fixed hardware systems, Q-SYS OS allows AV infrastructure to evolve via firmware, minimizing hardware dependencies.

• QIO Series Expansion Compatibility:
  Easily expand your system with purpose-specific QIO models (mic/line, GPIO, IR, Serial) as needed.

Technical Specifications Summary

Audio Performance

• Input Frequency Response: 20Hz–20kHz @ +21dBu

• Input THD+N: <0.0006% (depending on sensitivity/input)

• Dynamic Range: Up to 109.5 dB

• AEC Channels: 16

• Output THD: 0.003%

• Sampling Rate: 48kHz

Connectivity

• Networked Audio: 128x128 Q-LAN / AES67

• Dante: Up to 32x32 (8x8 included)

• USB Audio: 16x16

• VoIP Instances: Up to 4

• External USB Device Support: Yes

• Compatible with Q-SYS Control and NM-T1 mics

Dimensions & Power

• Size (HxWxD): 1.75 in x 19 in x 11.12 in

• Weight: 11 lbs (Shipping: 12.4 lbs)

• Power Consumption: 60W typical / 120W max

• Thermal Load: 205 BTU/hr

Certifications

• FCC, CE, UL, RoHS, RCM, EAC, and more (full list available on request)

Competitor Comparison

Why Choose the Q-SYS Core 110f v2 Over Other DSP Platforms?

• Higher channel density at a similar price point

• Software-driven adaptability with fewer physical limitations

• Better scalability with a single design ecosystem (Q-SYS Designer Software)

• No licensing lock-in for core audio and control features

• Designed for IT convergence, unlike legacy hardware-bound AV systems

• Greater VoIP and USB audio flexibility, supporting hybrid conferencing setups

Comparison Table

Additional Notes

• Software-Based Dante Licensing tiers available: 8x8 | 16x16 | 32x32

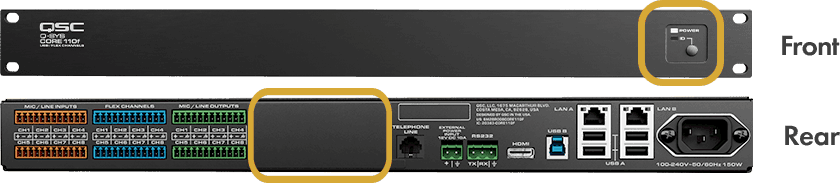

• Updated Model Notice: The V2 revision removes GPIO and OLED display to ensure better availability amid global supply chain fluctuation
