Netgear GSM4212PX-100NAS M4250-10G2XF-POE+ AV Switch

NETGEAR NMS-NG10GPX SWITCH

Introducing the NETGEAR AV Line of M4250 Switches, developed and engineered for audio/video professionals with dedicated service and support.
M4250 has been built from the ground up for the growing AV over IP market, combining years of networking expertise in AV with M4300 and M4500 series with best practices from leading experts in the professional AV market. AV codecs generally use 1Gbps or 10Gbps per stream and the AV Line of M4250 targets the widespread 1Gbps codecs. PoE+, Ultra90 PoE++ and rear-facing ports ensure a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an
AVB license sold separately. For video the M4250 offers profiles for NVX, AMX, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When
multiple switches are used, NETGEAR IGMP PlusTM brings automation for you to just connect them together, or with M4300 and M4500 switches.

Features

• Dedicated AV web-based GUI
• interface for more specific AV installations
• Color-based AV profiles can be applied to the different ports
•  Dante, Q-SYS, AES67 and AVB audio profiles
• AVB requires a license (sold separately)
• NVX, SVSI, Q-SYS, NDI and Dante video profiles
• Audio / video / control mixed profiles
• Automatic switch interconnect with NETGEAR Auto-Trunk, Auto-LAG and IGMP Plus
• Common Layer 2 and Layer 3 switching engine across all M4250 models
• Built-in IT web GUI, console, telnet and SSH consistent with other
• NETGEAR M4300 and M4500 series Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2

Audio Video Bridging (AVB) services

• AVB is one of the many features designed into the M4250 product line
• AVB is an industry standard for transporting content over a network
• AVB is used most often when very low latency is required such as in live
• performances when lip sync is critical
• All of the AV Line M4250 switches can be optionally licensed for AVB support

Other IT use cases

• Standard or recessed mounting with all ports in the back, or all ports in the front
• Fully featured L2/L3/L4 platform for midsize Enterprise campus networks, IoT and IPTV

Industry standard management

• Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI), SNMP, sFlow and RSPAN
• Single-pane-of-glass NMS300 management platform with centralized firmware updates and massconfiguration support

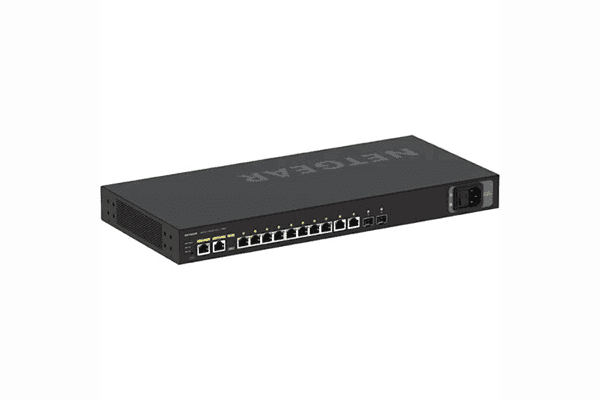

M4250-10G2XF-PoE+ AV Switch

• 8-port 10/100/1000BASE-T (RJ45) PoE+ with 240W PoE budget
• 2-port 10/100/1000BASE-T (RJ45)
• 2-port 1000/10GBASE-X (SFP+)
• 60 Gbps non-blocking fabric across 12 ports
• Out-of-band 1G Ethernet management port
• USB-C and RJ45 RS232 console ports and USB-A storage port

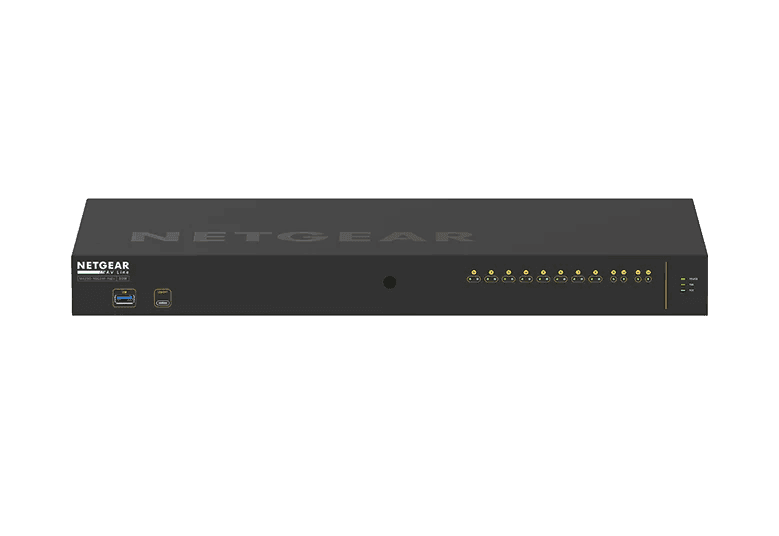

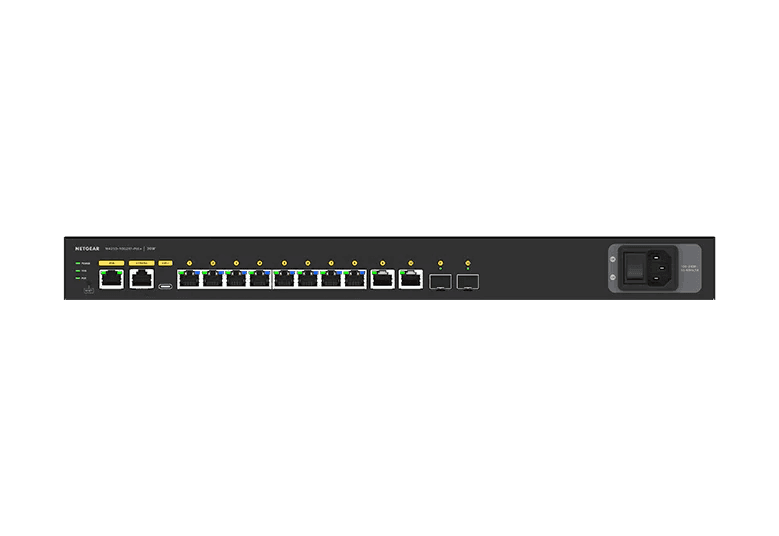

• Front black display panel and all ports in the back
• Possible reversed mounting with ports in the front
• Rack-mounting standard brackets
• Longer brackets for recessed mounting (2 inches / 5 cm)
• Threaded hole in front (1xM10) for clamps
• Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
• Selectable fan modes for fanless, quiet, or cool operation

Specifications
