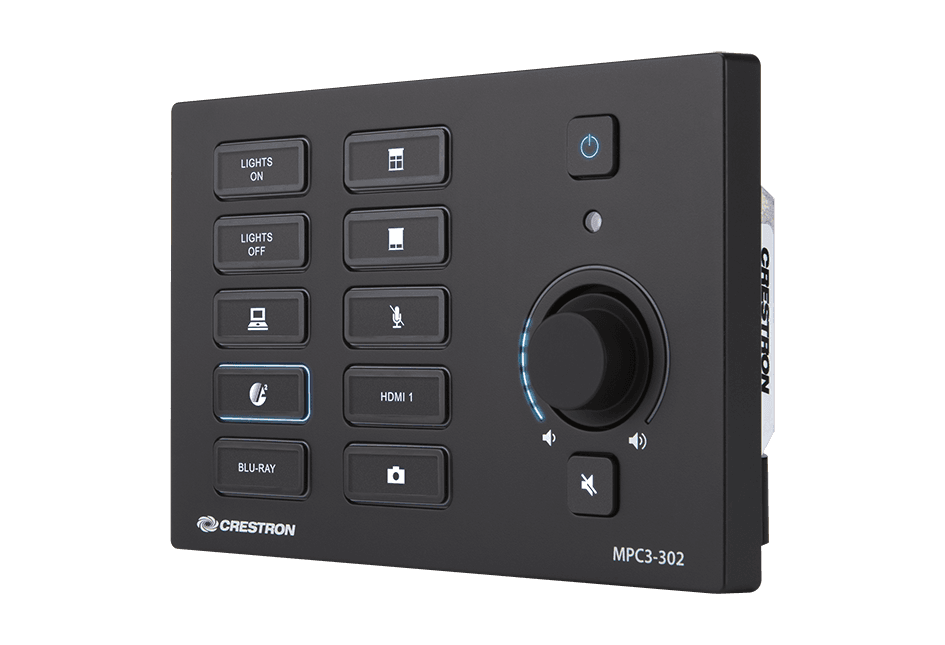

Crestron MPC3-302-B 3-Series® Media Presentation Controller 302 (Black)

A wall-mounted, PoE+ powered 3-Series Control System® automated processor and control panel in one. Features a modern appearance with customizable backlit buttons and volume knob—mounts in a 3‑gang U.S. electrical box or tabletop enclosure.

The 3-Series® Media Presentation Controller 302 (MPC3-302) is a wall-fully programmablered 3-Series Control System® automated processor and control panel in one. Its modern appearance and customizable backlit buttons provide an ideal user interface for controlling AV and other functions. The controller offers fully‑programmable functionality, supports web and cloud‑based configuration and management, and integrates with Crestron Fusion® software as part of a complete managed enterprise solution.

Crestron® MPC3 series controllers are perfect for classrooms, meeting rooms, lecture halls, and training facilities. Use the MPC3-302 to control a video display or AV system, adjust lighting and window shades, or any other custom application. The MPC3-302 is designed for flush‑mount installation in a wall using a 3‑gang U.S. electrical box (not included). It can also be installed in a podium with no back box or placed on a table using the optional tabletop kit.

NOTE: The MPC3-302 series fits all the same mounting options as previous generation PC‑Mcustom-labeledPC‑M25,laser-engravedies products, providing an easy retrofit upgrade for older systems.

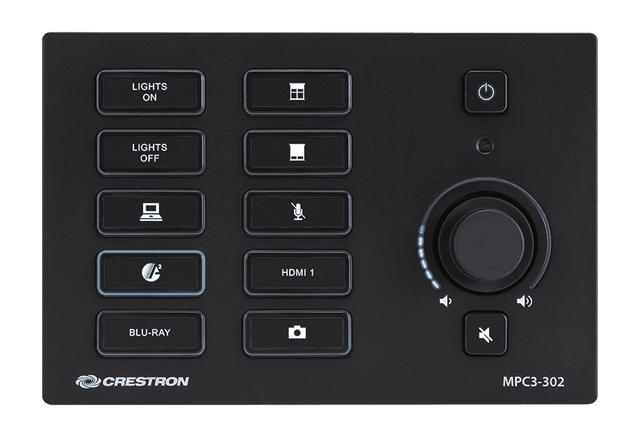

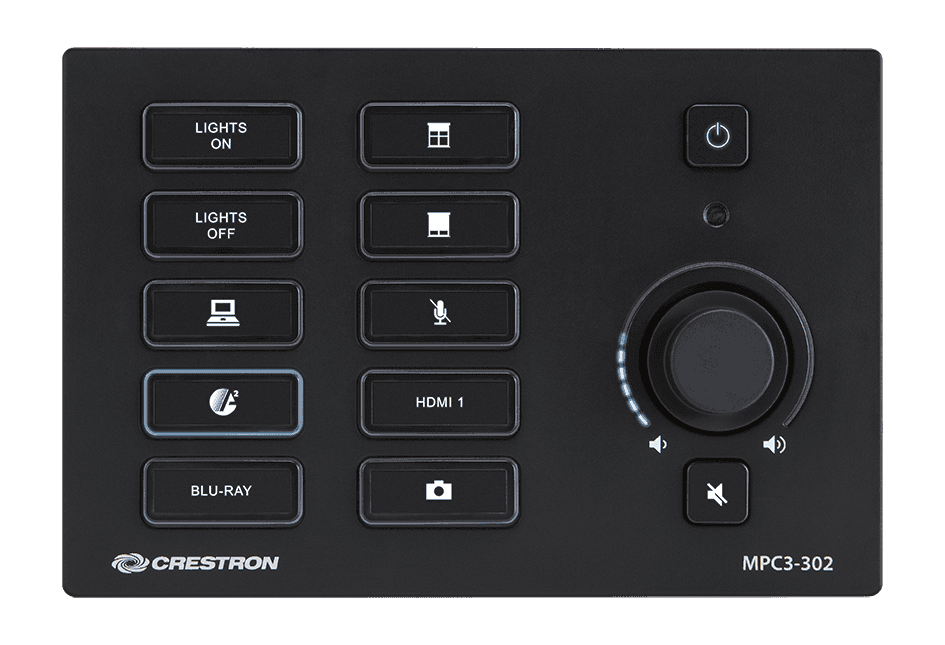

Customizable Backlit Buttons
The MPC3-302 features ten backlit buttons, which can each be labeled using ta he peel‑off labels provided, or custom labeled using laser‑engravable labels (sold separately). Elegant backlighting surrounds each button and illuminates the labels. Each button is backlit blue when active and white when inactive to provide clear indication of what media source or lighting scene is currently selected. A volume knob is included, encircled by a blue volume gauge to indicate the audio volume setting. Additional buttons are provided for power and mute control.

All buttons and controls on the MPC3-302 are custom programmable to control any device or function. Autobrightness control of the backlighting ensures optimal visibility under varying lighting conditions.

Expanded connectivity is available using a C2N‑IO control port expansion module, CEN‑GWEXER or CENI‑GWEXER infiNET EX® network wireless gateway, DIN‑CENCN-2 or DIN‑CENCN‑2‑POE Ethernet to Cresnet Bridge, CEN‑CI3‑1 or CEN‑CI3‑3 control card interface, or CEN‑IO‑COM‑102, CEN‑IO‑DIGIN‑104, CEN‑IO‑IR‑104, or CEN‑IO‑RY‑104 wired Ethernet module.

3-Series Control Engine
The MPC3-302 features an integrated, enterprise‑grade 3‑Series control processor. Built-in Modular Programming Architecture (optional 1) allows the MPC3-302 to run multiple programs simultaneously for increased efficiency and flexibility. Rock solid networking and IP control afford seamless integration with othe systems and devices, with add‑on control capability using Crestron touch screens, keypads, wireless remotes, and mobile device apps with remote management through Crestron Fusion and the XiO Cloud® service.

No Progamming Required!
Built-in .AV Framework™ technology delivers a fully functional AV presentation system with simplified web‑based configuration and a choice of control options and add‑ons. For complete details on the capabilities supported by .AV Framework, visit www.crestron.com/avframework.

Key Features

• Crestron® 3-Series Control System® automated processor ad control panel
• Mounts flush on a wall or lectern and fits in a 3‑gang U.S. electrical box
• Ten buttons customizable with replaceable labels, plus rotary volume control with circular volume gauge and additional power and mute buttons
• Built-in .AV Framework™ software

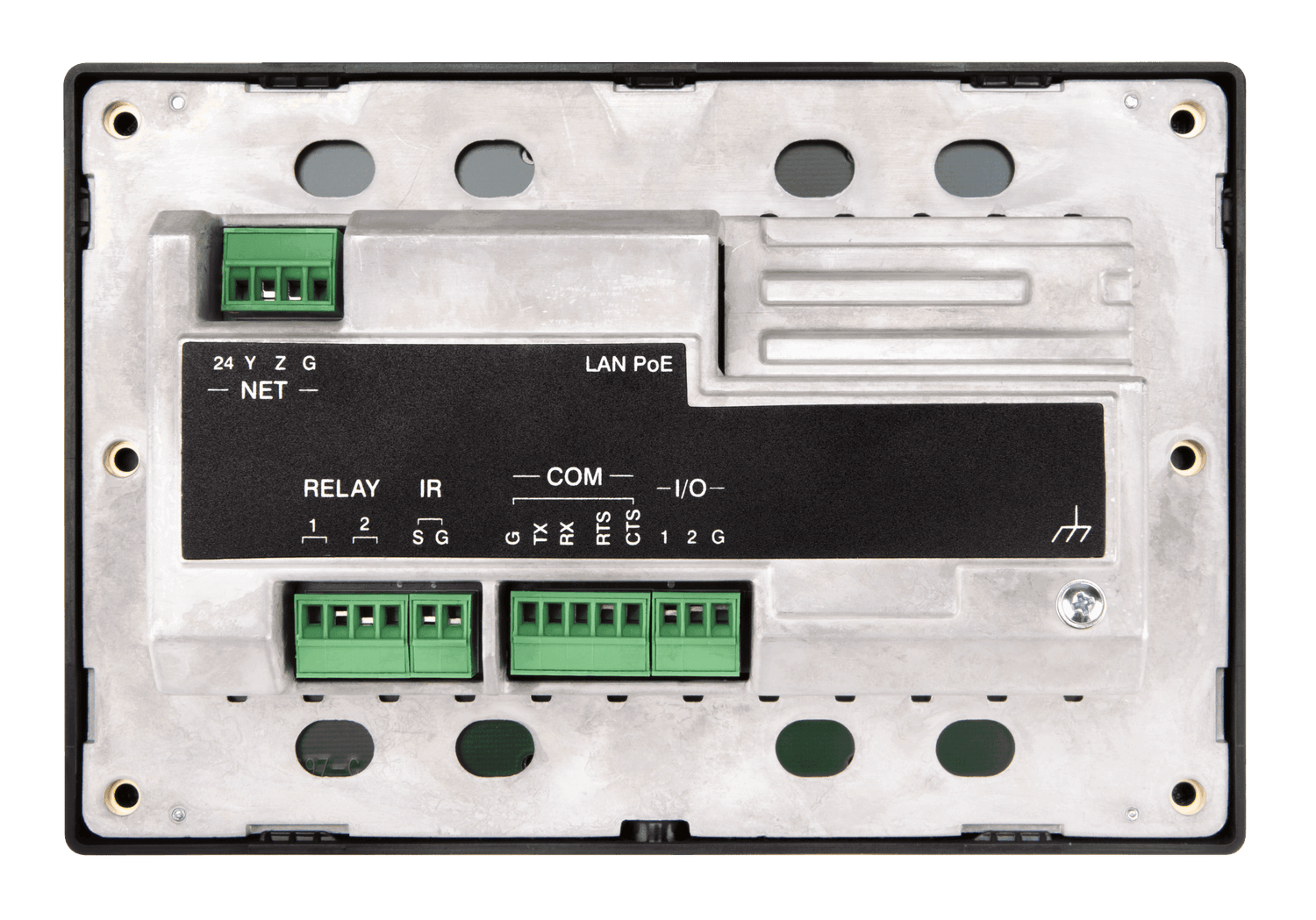

• Ethernet LAN port and Cresnet® network port
• Onboard RS‑232, IR, relay, and Versiport control ports
• iPhone®, iPad®, and Android™ device control app support
• XPanel computer and web‑based control
• Native BACnet™ network and IP support
• Installer setup via software, web browser, or cloud
• Drag-and-drop, C#, and symbol based programming environments with full Unicode (multilanguage) support
• Enterprise-grade security and authentication
• IPv6 ready
• PoE+ network powered
• Upgrade for legacy 2‑Series MPC controllers (fits same mounting options as MPC‑M10, MPC‑M20, MPC‑M25, and MPC‑M50)
