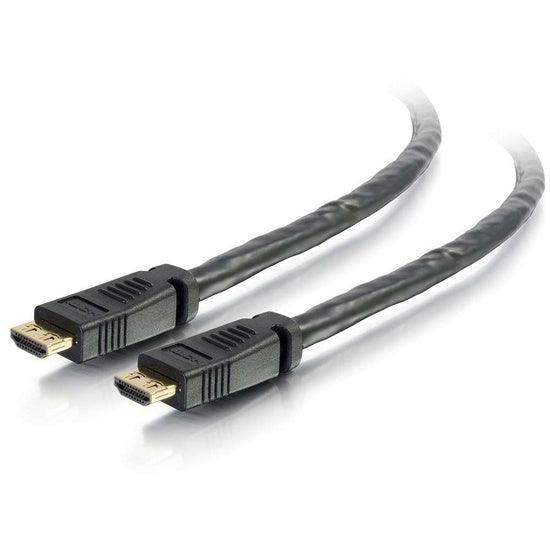

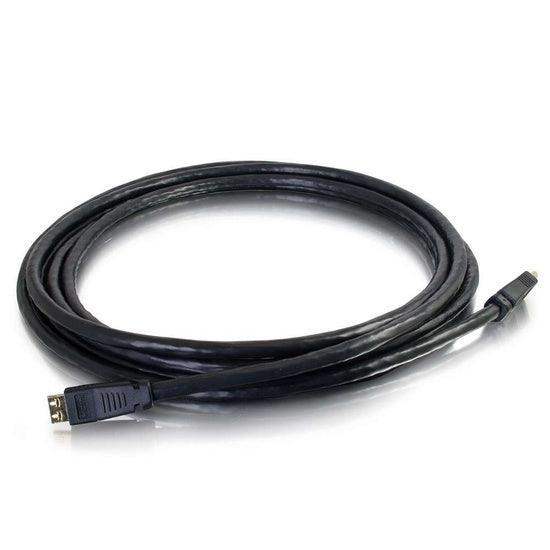

C2G CG42532 50ft Gripping HDMI Cable CL2P Plenum

Regular price $379.99
Shipping calculated at checkout.
C2G  |  SKU: CG42532

Shipping Now*

Free Ground Shipping over $250.00

This standard speed HDMI CL2P plenum rated cable with gripping connectors is designed for connecting multimedia devices in an office, meeting room, or in other commercial environments. This cable can be installed in Audio/Video applications requiring HDMI features while meeting building codes that require CL2P plenum rated cables to be installed. Ensure that your most critical equipment maintains signal with the gripping connectors which provide greater port retention than a standard HDMI connector.

Follow the code
Strict building code requirements for cabling in plenum spaces have created installation challenges in settings such as schools, hospitals and other commercial buildings. This CL2P rated cable meets all requirements for commercial, industrial, hospital, and school spaces that require CL2P plenum cable to be installed.

Powerful visuals
Make every presentation count by delivering crisp audio and pristine high definition video to any audience. Whether streaming video or displaying a presentation this cable is an ideal solution to deliver audio/video content in demanding environments.

Get a grip
Ensure that your most critical equipment maintains signal with the gripping connectors which limit the chance that the cable could be accidently disconnected causing detrimental downtime. There is no need for special locking sockets tie downs or screws that take up extra space and have a higher cost.


Features
  • CL2P plenum rated jacket
  • Gripping connector
  • Designed to support standard speed HDMI features
  • Supports up to 1080i video resolution
  • Gold plated connectors
  • TAA compliant
  •


    Additional Technical Specifications
    Specs
    Electrical Specifications

  • Conductor Resistance: 24AWG 94.2
  • /Km Mat at 20°C
  • FEXT: -26dB at 0.3 to 5.10Ghz
  • Impedance: 100±10
  • Attenuation (Max): 0.3~825MHz <(><<)>5dB/Cable, 0.825~2.475GHz <(><<)>5~12dB/6m, 2.475~4.125GHz <(><<)>12~20dB/6M, 4.125~5.1 GHz <(><<)>20~25dB/6M
  • Time Delay Skew: Within a pair <(><<)>/=112ps/6M, Between Pairs <(><<)>/=1.78ns/6M

    Physical Specifications

  • Operating Temperature: 0° to 50° C
  • Storage Temperature: -25° to 70° C
  • Cable Outer Diameter: 6mm
  • Shield: Aluminium Foil - 100% Coverage / Braid - Tinned Copper (24/7/0.12mm)

    Conductor 1 (Twisted Pair)

  • Material: Tinned Copper
  • Size: 24AWG (7/0.2mm)
  • Insulation: FM-FEP (ID 1.55±0.10)
  • Drain: 24AWG Tinned Copper (7/0.2mm)

    Conductor 2 (5 Conductors)

  • Material: Tinned Copper
  • Size: 24AWG (7/0.2mm)
  • Insulation: FEP (ID 0.95±0.08)

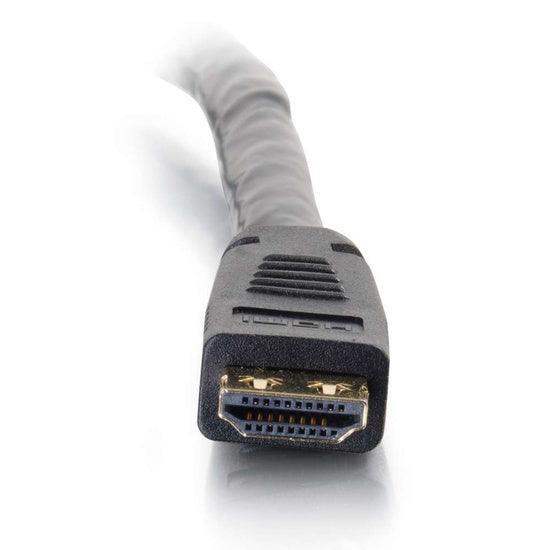

    HDMI Connector

  • Gender: Male x2
  • Port Retention: 6.6lbs Minimum Withdraw Force
  • Insulation: Black
  • Contact Material: Gold Flashing
