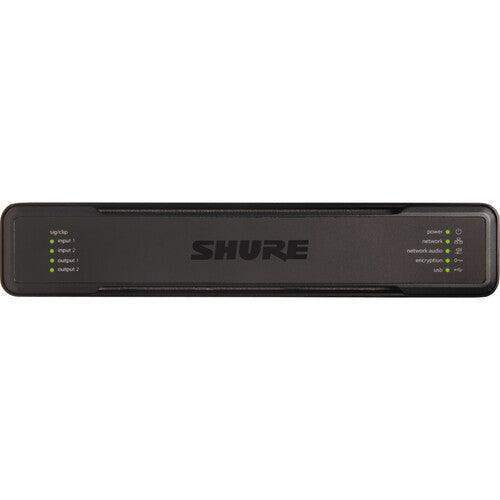

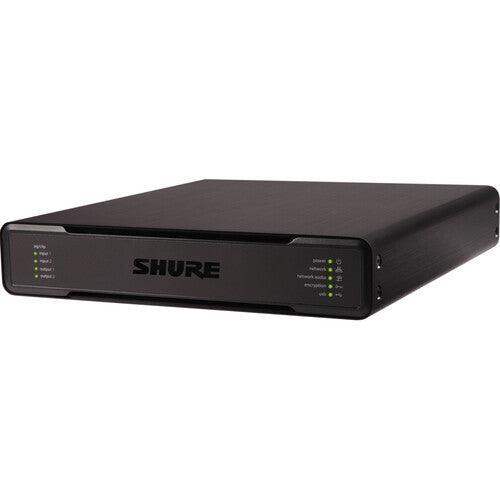

Shure P300-IMX-TA IntelliMix Audio Conferencing Processor (TAA-Compliant)

Sale price $2,238.50 Regular price $3,133.90
Shipping calculated at checkout.
Shure  |  SKU: P300-IMX-TA

Shipping Now*

Free Ground Shipping on Orders Over $250.00

The Shure P300 IntelliMix Audio Conferencing Processor is designed to work with the Microflex Wireless (MXW) system to deliver eight channels of acoustic echo cancellation, DSP-processing, and level control for conference rooms and meeting spaces. The processor supports Microflex wireless microphones while also offering versatile input and output connectivity options that allows users to incorporate loudspeakers, computers, mobile devices, and other audio components.

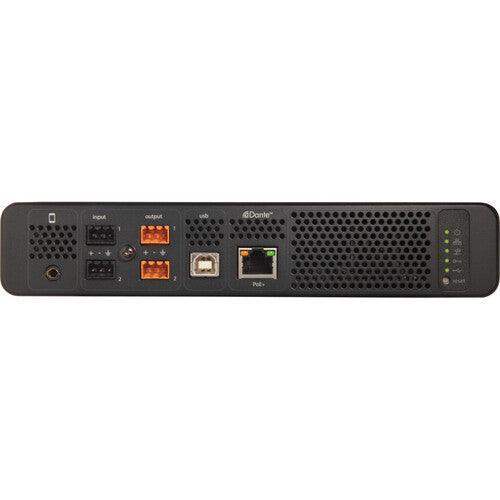

The P300 provides Dante (10 in/8 out), and to connect analog devices, the unit provides two 3-pin block connector inputs and two 3-pin block connector outputs along with a 3.5mm input jack for mobile devices. The USB Type-B port lets you connect computers and other USB devices, while the RJ45 port supplies the unit with power and connects it to other access points in the conference system network.

*The TAA-compliant models are made-to-order with a typical delivery time of 2 to 4 weeks. The additional cost of producing separate model variations is reflected in higher pricing compared to standard SKUs.

Features
  • Integrates Audio Sources for Conferences
  • Use with Microflex Advance/Wireless Mics
  • Use Phones, Video, Speakers & Computers
  • Versatile Connectivity, Powerful DSP
  • 8-Channels with Echo Cancellation
  • Dante, Analog Block, 3.5mm & USB
  • Single Network Cable, PoE+
Specs
Audio
Frequency Response
20 Hz to 20 kHz (+1, -1.5 dB)
Dante Digital Audio
Sampling Rate: 48 kHz
Bit Rate: 24 Bit
USB Audio
Sampling Rate: 48 kHz
Bit Rate: 24 / 16 Bit
Latency
Firmware 4.1 and Newer:
Dante 1-8 In to Dante Out (AEC enabled): 15.4 ms
Dante 1-8 In to Dante Out (AEC disabled): 8.7 ms
Dante 9-10 In to Dante Out: 3.4 ms
Analog In to Analog Out: 3.8 ms

Firmware 3.1 and Older:
Dante 1-8 In to Dante Out (AEC Enabled): 12.5 ms
Dante 1-8 In to Dante Out (AEC Disabled): 5.8 ms
Dante 9-10 In to Dante Out: 1.8 ms
Analog In to Analog Out: 2.2 ms
Acoustic Echo Cancelling
Tail Length: Up to 300 ms
Analog Connections
Block Connectors:

Dynamic Range (20 Hz to 20 kHz, A-Weighted, Typical): Analog to Dante: 113 dB, Dante to Analog: 117 dB

Equivalent Input Noise (20 Hz to 20 kHz, A-Weighted, Input Terminated with 150 Ohms):
Line -86 dBV, Aux -98 dBV

Total Harmonic Distortion at 1 kHz, 0 dBV Input, 0 dB Analog Gain: <0.05%

Common Mode Rejection Ratio (150-Ohm Balanced Source @ 1 kHz): > 50 dB

Input Impedance: 9.6 Kilohms

Input Clipping Level: Line +27 dBV, Aux+15 dBV

Output Impedance: 80 Ohms

Output Clipping Level: Line +20 dBV, Aux +0 dBV, Mic -26 dBV
Mobile
Connector: 1/8" / 3.5 mm

Pin Assignments: Tip: Audio Input (Left), Ring 1: Audio Input (Right), Ring 2: Ground, Sleeve: Audio Output (To Phone)

Dynamic Range (20 Hz to 20 kHz, A-Weighted, Typical): Analog to Dante: 99 dB, Dante to Analog: 90 dB

Total Harmonic Distortion (at 1 kHz, 0 dBV Input, 0 dB Analog Gain): <0.05%

Input Impedance:  3.7 Kilohms

Input Clipping Level: +4 dBV

Output Impedance: 1.4 Kilohms

Output Clipping Level (Output Terminated with 2.2 Kilohms): -20 dBV
General
Analog Input
2 x 3-Pin Block Connector (Active Balanced)
1 x 1/8" / 3.5mm TRRS Input
Control Software
Shure Designer
Analog Output
2 x 3-Pin Block Connector (Impedance Balanced)
USB
USB 2.0, Type B
Single Port Carries 2 Input and 2 Output Channels (Summed Mono)
Network Connection
1 x RJ45
10 x Dante Inputs
8 x Dante Outputs
Networking
Cable Requirements: Cat 5e or Higher (Shielded Cable Recommended)
Polarity
Non-Inverting, Any Input to Any Output
Power Requirements
802.3 at Type 2 (PoE Plus), Class 4
Power Consumption
17.5 W, Maximum
Thermal Dissipation
Maximum: 17.5 W (60 BTU/Hr)
Typical: 14.6 W (50 BTU/Hr)
Operating Temperature Range
20 to 122° F / -6.7 to 50° C
Storage Temperature Range
-20 to 165° F / -29 to 74° C
Dimensions
1.6 x 8.3 x 8.9" / 4 x 21 x 22.6 cm
Weight
3.8 lb / 1.71 kg
