Tascam SB-16D 16 Mic In/16 Line Out Analog/Dante Converter
Audio professionals in search of I/O expansion for the Sonicview digital mixing console will be impressed with the TASCAM SB-16D, a 16-in / 16-out Dante stage box and standalone audio interface with built-in 32-bit / 96 kHz AD/DA converters and Class 1 HDIA (High Definition Instrumentation Architecture) microphone preamps, well suited for touring bands, concert halls, clubs, bars, special events, corporate meetings, and rental houses.

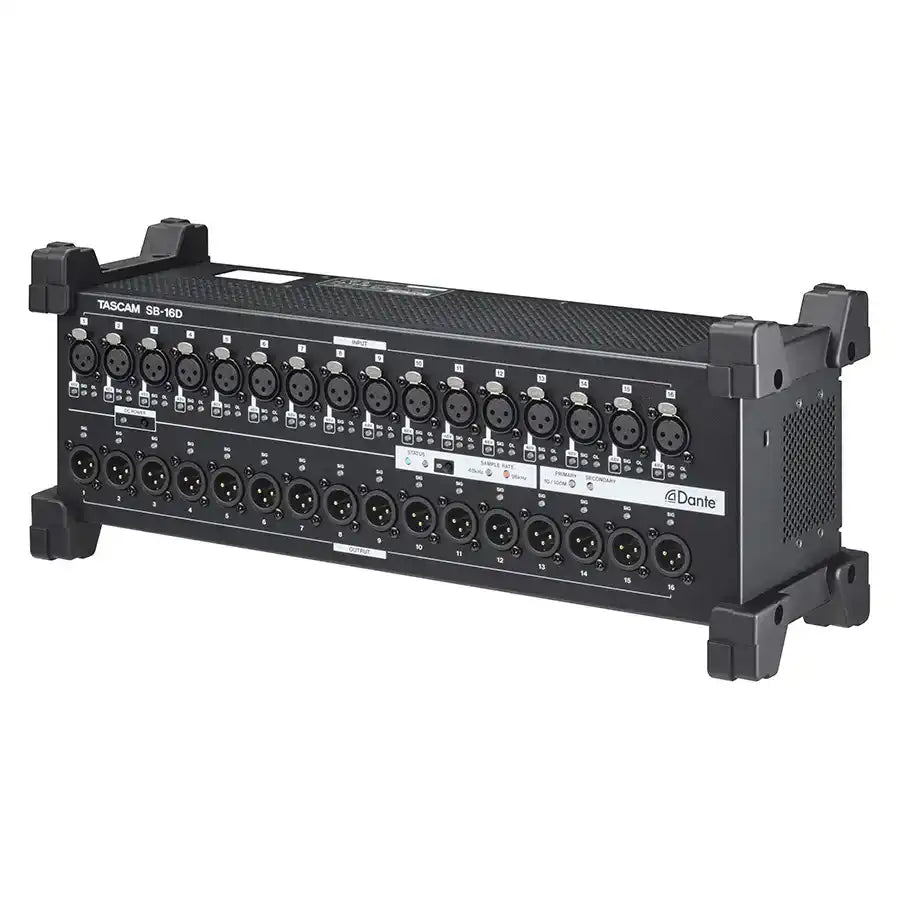

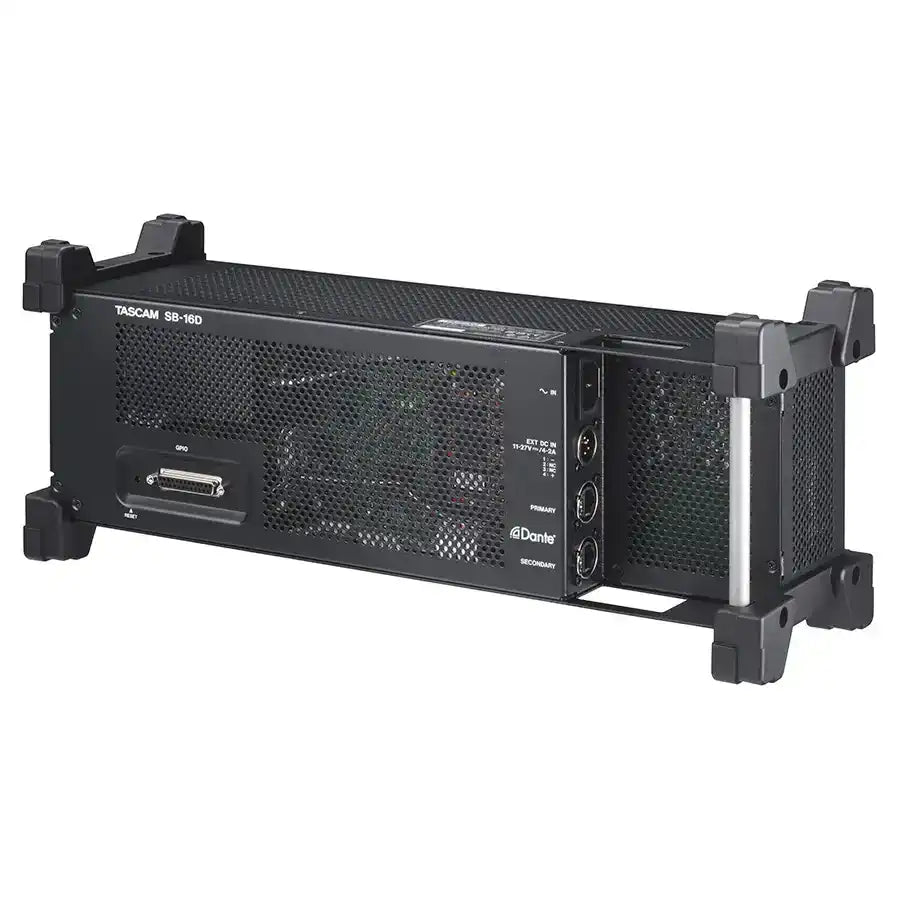

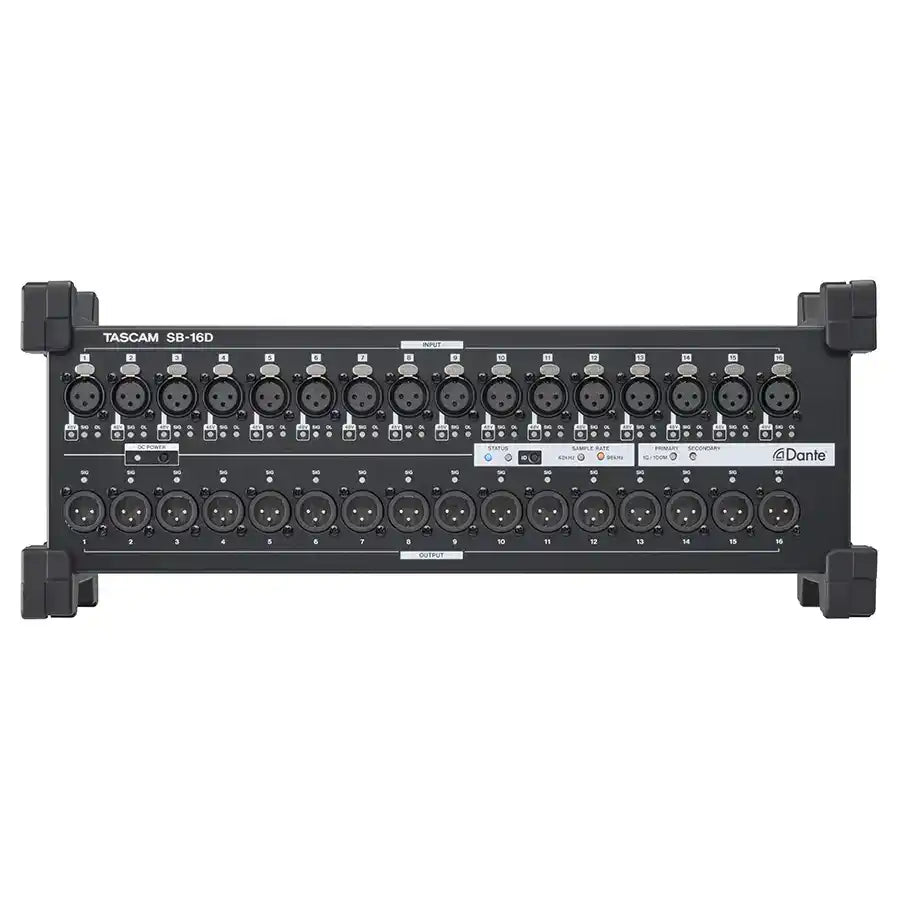

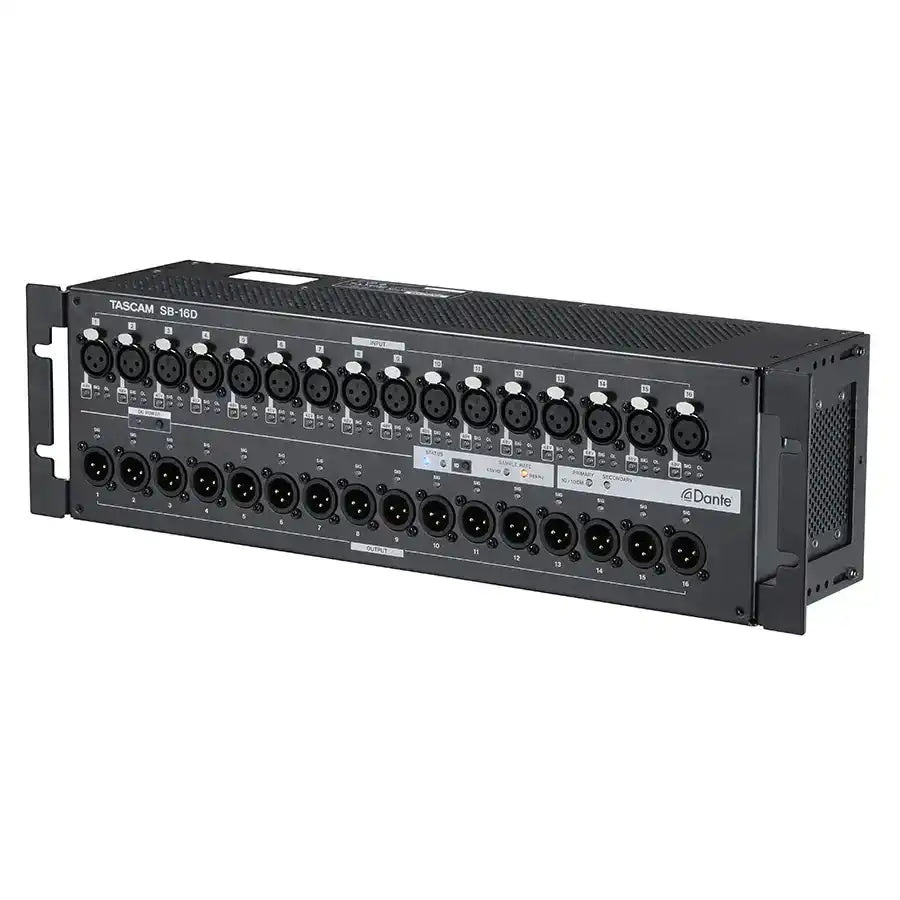

The stagebox includes 16 XLR inputs and 16 XLR outputs plus primary/secondary Dante I/O connectors and a DB-25 GPIO connector for events and relay applications. Control the SB-16D with the TASCAM IO Control app or with Sonicview series mixers. The stage box can be used on the floor, stacked, or racked in a standard 19" rack case (3 RU). The SB-16D ships with a rackmount kit and mounting hardware
Features
- 16 in/16 out Dante enabled stage box with redundancy
- 16 XLR mic/line inputs with +48 phantom power and SIG OL LED input signal/overload indicators
- 16 XLR line outputs with SIG OL LED output signal indicators
- Up to 96 kHz sampling and 32-bit precision
- Supports both floor installation and 3U rack mounting
- Fully controllable from connected TASCAM Sonicview mixers
- Remote control and offline editing using TASCAM IO Control app for macOS, Windows, and iPadOS
Specs
| Analog Audio Inputs and Outputs | |
| MIC/LINE INPUTS (1-16) | |
| CONNECTOR | XLR-3-31 type (1: GND, 2: HOT, 3: COLD) |
| Input Impedance | 5.0kΩ and more |
| Max Input Level | +32dBu (TRIM Min, PAD: ON), +12dBu (TRIM Min, PAD: OFF) |
| Min Input Level | -42dBu (TRIM Max, PAD: ON), -62dBu (TRIM Max, PAD: OFF) |
| Phantom Power | +48V available |
| LINE OUTPUTS (1-16) | |
| CONNECTOR | XLR-3-32 type (1: GND, 2: HOT, 3: COLD) |
| Nominal Output Level | +6dBu (D.ref: -9dB) +4dBu (D.ref: -14dB, -16dB) +4dBu or 0dBu (D.ref: -18dB, -20dB) |
| Max Output Level | +15dBu(D.ref.: -9dBFS, A.ref: +6dBu) +18dBu(D.ref.: -14dBFS, A.ref: +4dBu) +20dBu(D.ref.: -16dBFS, A.ref: +4dBu) +18dBu(D.ref.: -18dBFS, A.ref: 0dBu) +20dBu(D.ref.: -20dBFS, A.ref: 0dBu) +22dBu(D.ref.: -18dBFS, A.ref: +4dBu) +24dBu(D.ref.: -20dBFS, A.ref: +4dBu) *D.ref.: Digital Reference Level, A.ref.: Analog Reference Level *0dBu=0.775Vrms |
| Output Impedance | 100Ω or less |
| Digital Audio Inputs and Outputs | |
| Dante(PRIMARY/SECONDARY) | |
| CONNECTOR | etherCON Cat5e compatible |
| Number of channels | 64 channels (48 kHz), 32 channels (96 kHz) |
| Ethernet | 1000BASE T(IEEE802.3ab) |
| Cable | CAT5e STP |
| Supports redundant mode and Switched mode | |
| Other Inputs and Outputs | |
| GPIO | |
| CONNECTOR | D-sub 25pin (8in/8out, female, inch) |
| Input circuit | pull up (5V) |
| Output circuit | Open corrector |
| Output impedance | 10Ω |
| Withstand Voltage | 20V |
| Maximum current | 35mA |
| +5V Maximum supply current | 50mA |
| General | |
| Dimensions | 454(W) x 140 (H) x 179.6 (D) mm (The original foot is attached) 482.8(W) x 132(H) x 120(D) mm (Rackmount angle is attached) 17.88(W) x 5.52(H) x 7.08(D) inch (The original foot is attached) 19.01(W) x 5.20(H) x 4.72(D) inch (Rackmount angle is attached) |
| Weight | 4.5kg / 9.93 lb |
| AC Power Supply | AC100V 240V 50/60 Hz |
| DC Power Supply | DC11V/4A - 27V/2A |
| Power Consumption | 44W |
| Operating Temperatures | 0 - 40 ℃ |
| Control Software | TASCAM IO CONTROL |
| Included Items | SB 16D x1 Power Code (JAPAN USA/EUROPE/OCEANIA) x1 Rackmount angle (screw) set x1 Rackmount angle screw kit x1 TASCAM ID registration guide x1 Owner's manual with warranty x1 |
Audio Performance
| MIC PRE AMP EIN (Equivalent Input Noise) | -128dBu or less |
| Distortion | 0.002% and less (MIC/LINE > Dante, +4dBu Inputs, PAD=OFF, TRIM MIN, JEITA) 0.002% and less (DANTE > LINE OUTPUT, 0dBFS Outputs, JEITA) |
| Frequency characteristic | |
| 20Hz - 20kHz | +0dB、-0.5dB(48kHz) (MIC/LINE > LINE OUTPUT, JEITA) |
| 20Hz - 40kHz | +0dB、-1.0dB(96kHz) (MIC/LINE > LINE OUTPUT, JEITA) |
| 20Hz - 20kHz | +0dB、-0.5dB(48kHz) (DANTE IN > LINE OUTPUT, JEITA) |
| 20Hz - 40kHz | +0dB、-1.0dB(96kHz) (DANTE IN > LINE OUTPUT, JEITA) |
| Crosstalk | 100dB or more (MIC/LINE > OUTPUT, 1kHz Sine wave, JEITA) |
| Dynamic range | 110dB or more (MIC/LINE > DANTE, PAD=OFF, TRIM MIN, D. 20dBFS, JEITA) 111dB or more (DANTE IN > LINE OUTPUT, Sampling rate: 48kHz) 112dB or more (DANTE IN > LINE OUTPUT, Sampling rate: 96kHz) |
