Tascam DR-70D 6-Input / 4-Track Multi-Track Field Recorder with Onboard Omni Microphones

Authorized Dealer

$349.00 $279.00

Shipping calculated at checkout.

Tascam | SKU: DR-70D

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

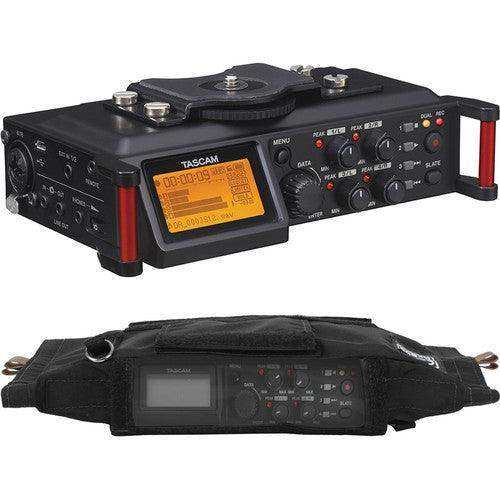

For filmmaking, television, and web broadcast applications where you want to record direct sound and ambience, the TASCAM DR-70D multi-track field recorder is an ideal companion for your DSLR. Capture up to four tracks of high-resolution audio from external sources and the onboard omnidirectional microphones, route audio to and from your camera, and conveniently monitor through headphones. With strap-friendly handles, a tripod mounting socket, and a camera-mount screw attachment, the DR-70D is compatible with a variety of setups and working styles.

Versatile powering methods and remote-control options make the DR-70D ideal for location recording and extended video shoots. Its four balanced XLR-1/4" combo inputs handle mic- or line-level signals (even +4 dBu from high-end sound mixers) and can independently supply phantom power. A 3.5mm mic/line input with selectable plug-in power is provided for situations that require you to record a lavalier microphone or the output of a wireless receiver. Utilize settings such as stereo safety track recording, limiting, and low-cut filtering to achieve a clean, undistorted recording.

Onboard Omnidirectional Microphones

The DR-70D's two onboard condenser microphones empower you to capture stereo sound without external mics. The omnidirectional mics respond to sound from all directions and are permanently spaced apart in an A/B configuration, yielding a broad, sphere-like pickup pattern. Use them in combination with a shotgun, handheld, or lav mic to record direct sound and ambience at the same time.

Four XLR-1/4" Mic/Line Inputs with Independent Phantom Power

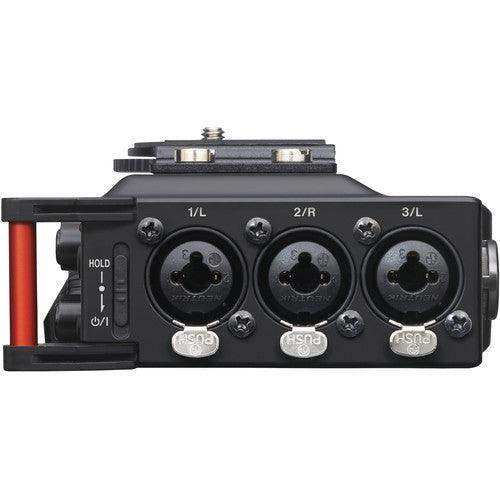

Four locking XLR-1/4" TRS combo jacks support mic level and +4 dBu line level, allowing you to record external microphones or balanced outputs from a professional multichannel mixer. With individually switchable phantom power (24 or 48V) and up to 63 dB of gain, the low-noise HDDA (High Definition Discrete Architecture) mic preamps can serve a variety of microphones such as dynamic, ribbon, or condenser types.

3.5mm Mic/Line Input with Plug-In Power

For maximum intelligibility and optimal vocal tone, recordists often prefer to use lavalier microphones that can be attached to their subject's clothing. The DR-70D's 3.5mm mini-jack input is designed for precisely that situation; clip a lav mic (available separately) to the talent, then plug it into the 3.5mm input on the DR-70D. Knowing that many lav mics require a small amount of voltage called plug-in power, TASCAM offers a selectable setting to supply plug-in power to the 3.5mm input. If you need to record the output of a wireless microphone receiver or an audio mixer, the 3.5mm input can accommodate it because it supports line-level signals and handles a maximum input level of +10 dBV.

Features

Angled 128 x 64 pixel graphic LCD with backlight for easy viewing
Simple, efficient file transfer via USB 2.0 connection to a computer
Adjustable delay function eliminates time lags caused by differences in the distances of two sets of inputs from the sound source
Hold switch prevents accidental operation
MS decoding function allows proper stereo monitoring of a mid-side mic configuration
Automatically creates a new file when the maximum file size is reached
Resume function retains the last stop point even when the DR-70D is powered off/on
Track incrementing function allows a recording to be split by creating a new file when desired
File name format can be set to use a user-defined word or the date
The first six characters of the file name for recording can be set freely

Specifications

TASCAM DR-70D Specs

Portable Recorder

Number of Tracks	4
Maximum Sampling Rate	96 kHz / 24-Bit
Microphone	Built-In Omnidirectional Electret Condenser Stereo Pair, A/B Configuration
Built-In Speaker	No
Display	Monochrome LCD (Backlit)
Memory Card Support	SD (64 MB to 2 GB) SDHC (4 GB to 32 GB) SDXC (48 GB to 128 GB)
Internal Storage	None

Recording

Audio File Formats	BWF, WAV
Sample Rates	WAV: 44.1 / 48 / 96 kHz
Bit Depth	16 / 24-Bit
Signal Processing & FX	Delay, Limiter, Low-Cut Filter
Timecode Support	No
Recording Time	WAV 44.1 kHz/16-Bit: 1 Hr 41 Mins per GB (Stereo) WAV 48 kHz/16-Bit: 1 Hr 33 Mins per GB (Stereo) WAV 96 kHz/16-Bit: 46 Mins per GB (Stereo) WAV 44.1 kHz/24-Bit: 1 Hr 7 Mins per GB (Stereo) WAV 48 kHz/24-Bit: 1 Hr 2 Mins per GB (Stereo) WAV 96 kHz/24-Bit: 31 Mins per GB (Stereo)

Connectivity

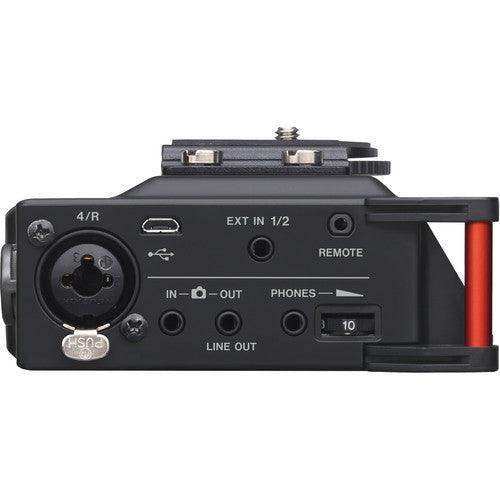

Analog I/O	4 x Combo XLR-1/4" TRS Female Balanced Line/Mic Input (Lockable) 1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Camera/Line Output 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output 1 x 2.5 mm TRS Female Remote Input
Digital I/O	None
Phantom Power	+24 / 48 V ± 4 V (Selectable on Individual Inputs)
Phantom Power Current	10 mA per Channel
Plug-In Power	Yes
System Connection	1 x Micro-USB (2.0)

Performance

Frequency Response	Line Outputs, Mic/Line Inputs: 20 Hz to 20 kHz +0.5/-2 dB (at 48 kHz, JEITA) 20 Hz to 40 kHz +0.5/-3 dB (at 96 kHz, JEITA)
Gain/Trim Range	Balanced Inputs: +21 dB to +63 dB Unbalanced Inputs: +3 dB to +38 dB
Max Input Level	Mic Inputs: 0 dBu Line Inputs: +20 dBu 1/8" Inputs: +10 dBV Camera Inputs: +6 dBV
Max Output Level	Camera Outputs: -24 dBV Line Outputs: +6 dBV
Headphone Output Power	20 mW per Channel
Impedance	Mic Inputs: 2 Kilohms Line Inputs: ≥10 Kilohms 1/8" / 3.5 mm Inputs: 10 Kilohms Camera Outputs: 200 Ohms Line Outputs: 200 Ohms
SNR	≥92 dB
THD	≤0.02%
EIN	-120 dBu

Power

Power Options	Batteries, USB Bus Power, AC/DC Power Adapter
Battery Type	4 x AA (Not Included)
Approximate Battery Life	WAV 44.1 kHz/16-Bit: 6 Hours (AA Alkaline, 2 Channels, Phantom Off, Recording) 3.5 Hours (AA Alkaline, 2 Channels, Phantom On, Recording) 11 Hours (AA Alkaline, Recording, Built-In Mic) 6.25 Hours (AA NiMH, 2 Channels, Phantom Off, Recording) 3.25 Hours (AA NiMH, 2 Channels, Phantom On, Recording) 10.5 Hours (Alkaline, Recording, Built-In Mic)
AC/DC Power Adapter	5 VDC at 1 A (Not Included)

Physical

Mounting Options	1/4"-20 Female, Shoe Mount
Operating Temperature	32 to 140°F / 0 to 40°C
Dimensions	6.7 x 2.2 x 4.2" / 169 x 55.2 x 106.5 mm
Weight	1.2 lb / 530 g (without Batteries) 1.4 lb / 625 g (with Batteries)

Packaging Info

Package Weight	1.8 lb
Box Dimensions (LxWxH)	10.75 x 8.15 x 4.35"
