Tascam DP-03SD Digital Portastudio 8-Track Recorder
Tascam DP-03SD Digital Portastudio 8-Track Recorder is backordered and will ship as soon as it is back in stock.
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Tascam DP-03SD Digital Portastudio 8-Track Recorder

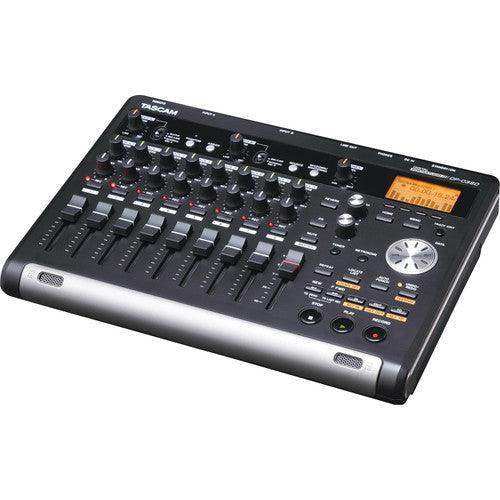

The DP-03SD Digital Portastudio 8-Track Recorder from TASCAM is a multitrack digital recorder capable of recording 2 channels simultaneously for up to 8 channels total. The DP-03SD records 16-bit/44.1 kHz resolution audio to SD/SDHC cards and can export your mix to your computer via USB.

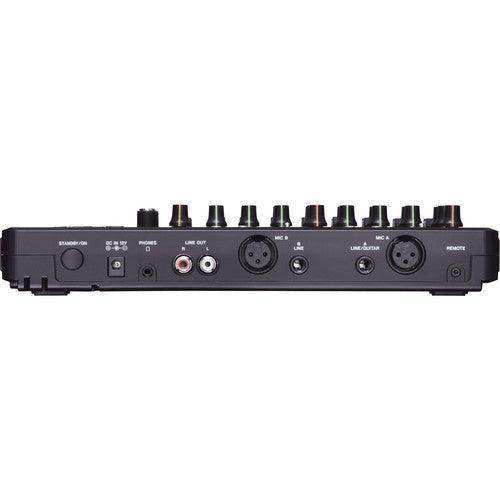

The unit has 2 mic/line selectable XLR inputs in addition to dual 1/4" line ins, one of which can function as an instrument input for direct recording of guitar or bass. 8 channel faders and 1 master fader provide hands-on mixing, while built-in EQ, compression, and reverb help you shape your tracks. Additionally, the DP-03SD has a built-in tuner and metronome. A 4GB SD card and power supply are included.
Features

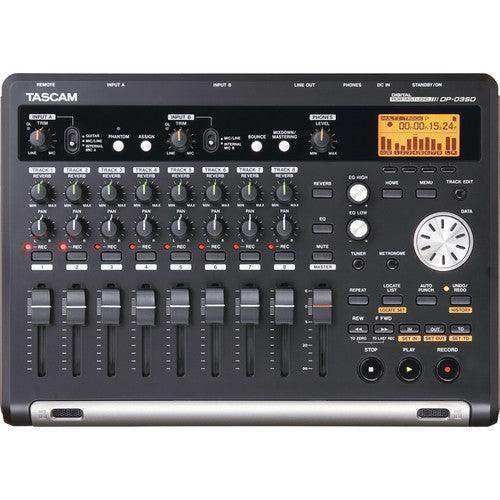

- 8 x Track Faders & 1 x Master Fader
- Records to SD/SDHC Cards
- 2 x Built-In Stereo Condenser Mics
- 2 x XLR Mic/Line Inputs
- 2 x 1/4" Inputs
- Records 2 Tracks Simultaneously
- Built-In EQ, Compression, Reverb
- Includes 4GB SD Card
Specifications
TASCAM DP-03SD Specs
| Form Factor | Desktop |
| Number of Tracks | 8 |
| Maximum Sampling Rate | 44.1 kHz / 16-Bit |
| Built-In Microphone | 2 x Omnidirectional (Stereo Pair) |
| EQ Parameters | High: ±12 dB at 1.7 kHz to 18 kHz (Semi-Parametric) Low: ±12 dB at 32 Hz to 1.6 kHz (Semi-Parametric) |
| Dynamic Processing | Compressor, Multi-Band Compressor |
| Built-In Effects | 6 x Reverb |
| Analog Audio I/O | 1 x 1/8" / 3.5 mm TRS Headphone Output 1 x Stereo RCA Coaxial Unbalanced Line Output 2 x XLR 3-Pin Balanced Input 2 x 1/4" TRS Balanced Input |
| USB (Non-Host) | 1 x Mini-USB (USB 2.0, External Storage) |
| Other I/O | 1 x 2.5 mm TS Remote Input |
| Frequency Response | 20 Hz to 20 kHz +1/-3 dB |
| Maximum Input Level | XLR Inputs: 0 dBu 1/4" Inputs: +24 dBV |
| Maximum Output Level | Line Outputs: +6 dBV |
| Headphone Output Power | 10 mW per Channel into 60 Ohms (Max) |
| Impedance | XLR Inputs: 2.4 Kilohms 1/4" Inputs: 10 Kilohms Hi-Z Inputs: 10 Megohms |
| SNR | ≥ 90 dB |
| THD | ≤ 0.01% |
| Sample Rates | 44.1 kHz |
| Bit Depths | 16-Bit |
| Supported Media | SD Card |
| File System Support | Tascam (MTR), FAT32 |
| OS Compatibility | Windows XP Windows Vista Windows 7 Windows 8 macOS 10.2 macOS 10.3 macOS 10.4 macOS 10.5 macOS 10.6.8 macOS 10.7 macOS 10.8 *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
| Power Requirements | AC/DC Power Adapter (Included) |
| Power Consumption | 5 W |
| Dimensions | 11.4 x 2.1 x 8.2" / 290 x 54.1 x 207.2 mm |
| Weight | 4.0 lb / 1.8 kg |
| Package Weight | 4.5 lb |
| Box Dimensions (LxWxH) | 16.693 x 10.709 x 4.961" |
