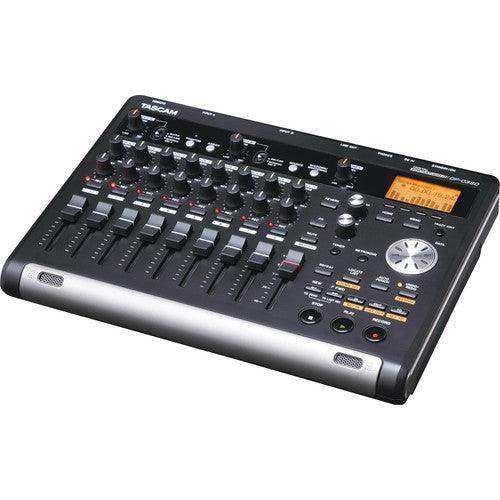

The DP-03SD Digital Portastudio 8-Track Recorder from TASCAM is a multitrack digital recorder capable of recording 2 channels simultaneously for up to 8 channels total. The DP-03SD records 16-bit/44.1 kHz resolution audio to SD/SDHC cards and can export your mix to your computer via USB.

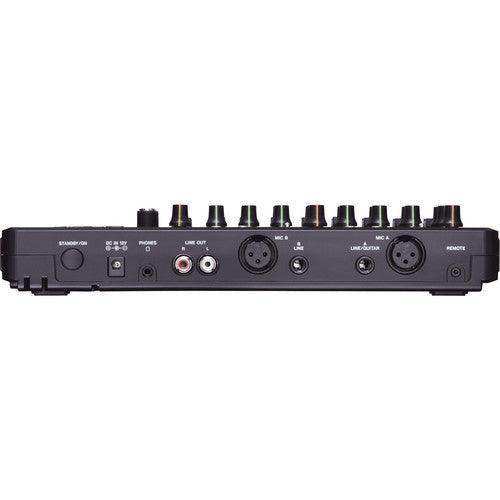

The unit has 2 mic/line selectable XLR inputs in addition to dual 1/4" line ins, one of which can function as an instrument input for direct recording of guitar or bass. 8 channel faders and 1 master fader provide hands-on mixing, while built-in EQ, compression, and reverb help you shape your tracks. Additionally, the DP-03SD has a built-in tuner and metronome. A 4GB SD card and power supply are included.

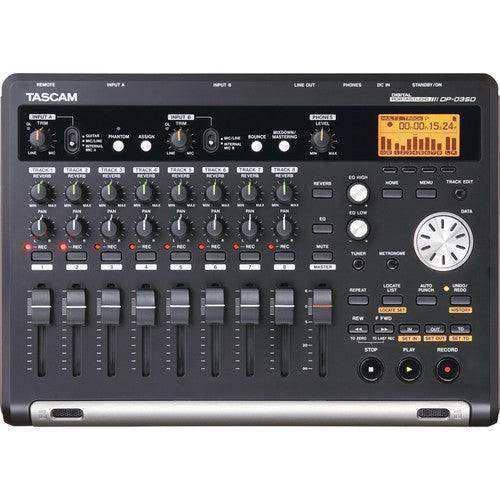

- 8 x Track Faders & 1 x Master Fader
- Records to SD/SDHC Cards
- 2 x Built-In Stereo Condenser Mics
- 2 x XLR Mic/Line Inputs
- 2 x 1/4" Inputs
- Records 2 Tracks Simultaneously
- Built-In EQ, Compression, Reverb
- Includes 4GB SD Card
TASCAM DP-03SD Specs
|Number of Tracks||8|
|Maximum Sampling Rate||44.1 kHz / 16-Bit|
|Built-In Microphone||2 x Omnidirectional (Stereo Pair)|
|EQ Parameters||High: ±12 dB at 1.7 kHz to 18 kHz (Semi-Parametric)
Low: ±12 dB at 32 Hz to 1.6 kHz (Semi-Parametric)
|Dynamic Processing||Compressor, Multi-Band Compressor|
|Built-In Effects||6 x Reverb|
|Analog Audio I/O||1 x 1/8" / 3.5 mm TRS Headphone Output
1 x Stereo RCA Coaxial Unbalanced Line Output
2 x XLR 3-Pin Balanced Input
2 x 1/4" TRS Balanced Input
|USB (Non-Host)||1 x Mini-USB (USB 2.0, External Storage)|
|Other I/O||1 x 2.5 mm TS Remote Input|
|Frequency Response||20 Hz to 20 kHz +1/-3 dB|
|Maximum Input Level||XLR Inputs:
|Maximum Output Level||Line Outputs:
|Headphone Output Power||10 mW per Channel into 60 Ohms (Max)|
|SNR||≥ 90 dB|
|Sample Rates||44.1 kHz|
|Supported Media||SD Card|
|File System Support||Tascam (MTR), FAT32|
|OS Compatibility||Windows XP
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
|Power Requirements||AC/DC Power Adapter (Included)|
|Power Consumption||5 W|
|Dimensions||11.4 x 2.1 x 8.2" / 290 x 54.1 x 207.2 mm|
|Weight||4.0 lb / 1.8 kg|
|Package Weight||4.5 lb|
|Box Dimensions (LxWxH)||16.693 x 10.709 x 4.961"|
