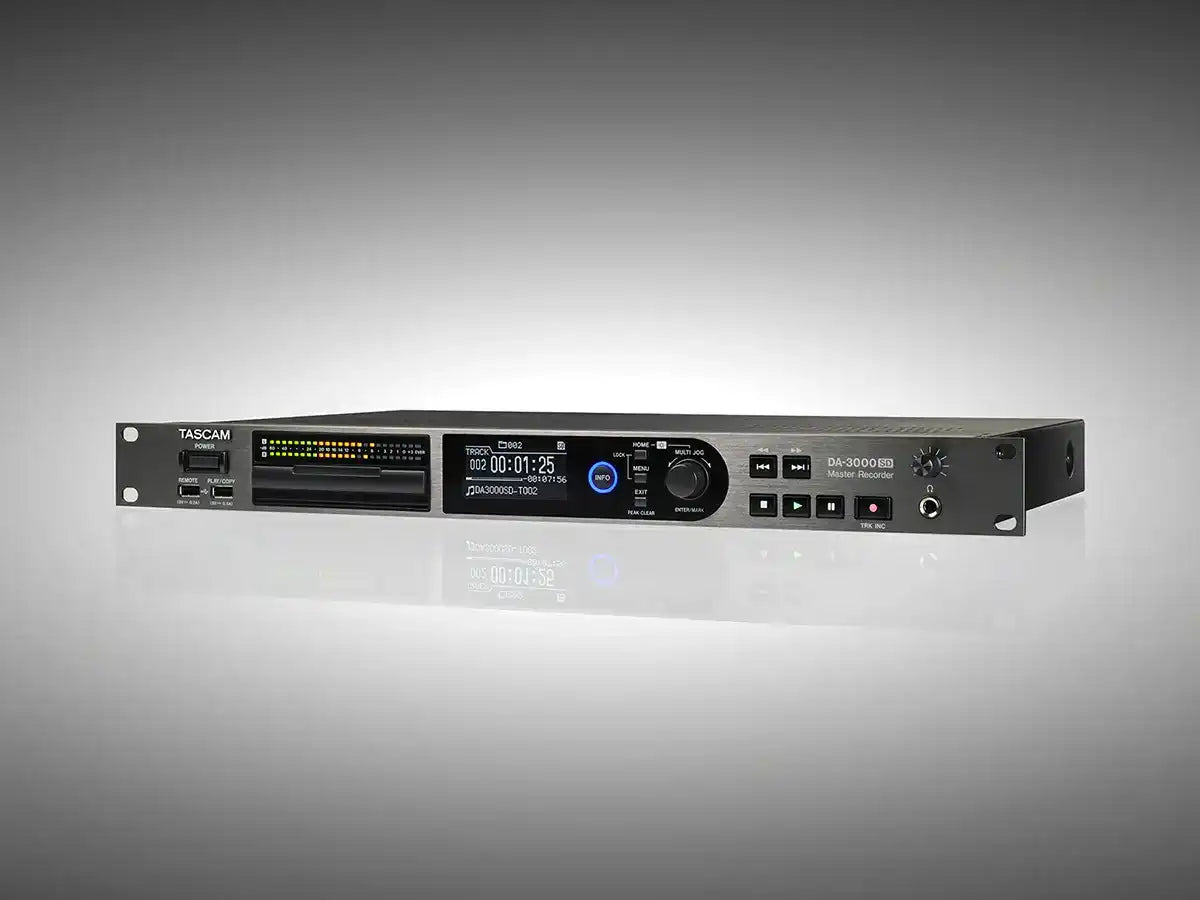

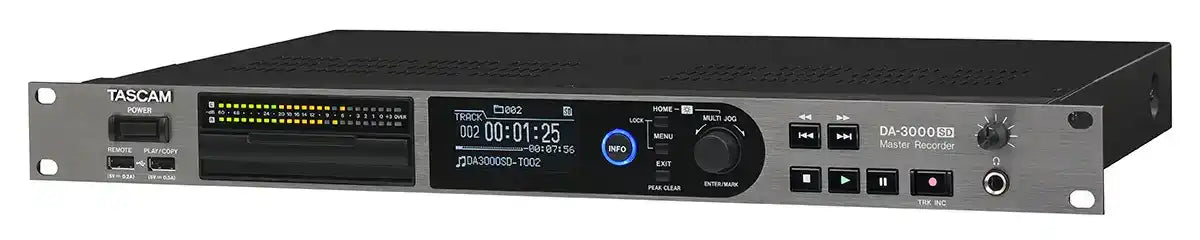

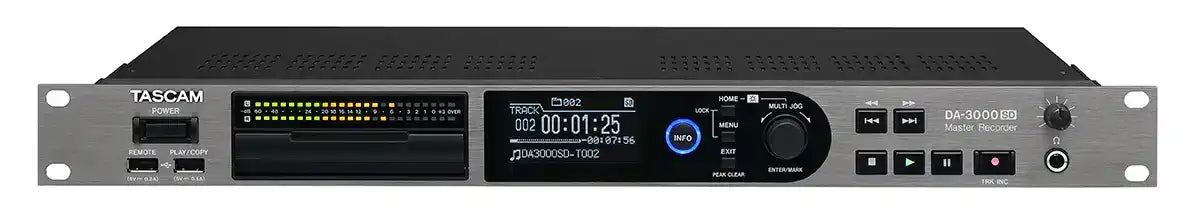

Tascam DA-3000SD Master Recorder-AD/DA Converter
DA-3000SD2-Channel DSD/PCM Master Recorder and AD/DA Converter
The TASCAM DA-3000SD combines a top-of-the-line reference-grade master recorder and AD converter for high-sample rate musically correct recording. Utilizing premium components, the DA-3000SD carries on the legacy as the industry standard in professional master recording and top level AD/DA conversion for recording engineers.
Professional Stereo Master Recorder with Superior AD/DA Converters
Following in its critically acclaimed predecessors footsteps, the DA-3000SD is a must-have master recorder and professional grade monitoring device in a single rack mountable unit.
Bouncing a recording in a DAW alone cannot capture the quality afforded by the DA-3000SD as a master recorder. When used as an AD/DA conversion unit in a DAW production environment, noise free superior monitoring is second-to-none as the clarity and depth of audio is enhanced and allowed to shine
Masterful Audio with PCM 192kHz, DSD 2.8/5.6MHz Recording
For recording, the DA-3000SD supports audio capture at 192 kHz for PCM as well as 2.8 and 5.6 MHz for DSD, the highest quality recording format commercially available. Based on project needs, users can select which recording method best matches the music’s characteristics and save the settings. Multiple units can be synchronized for sample-accurate recording and playback, allowing for the creation of a DSD multitrack recording environment. Recording directly to SD card media makes transportation and storage of sessions simple and easy-to-handle.
Utilizing High-Quality Audio Circuitry for AD/DA Conversion
An EI core transformer with separate windings for the digital and analog circuits is used in the power supply section, while the output audio circuit has a dual monaural configuration with two high-quality mono circuits to achieve an exceptional sonic profile. Additionally, all stages of the audio circuits have a balanced configuration to reduce noise on both input and output paths. Equipped with a TCXO (temperature compensated crystal oscillator), the DA-3000SD’s clock generator boasts an accuracy of +/- 1ppm for digital audio processing with no jitter.
Specs
| Supported Media | |
| SD | SDHC card (4GB~32GB), SDXC card (64GB~512GB) Media ejection method: Push-push type |
| USB | USB flash drive *Only playback and file copying with SD card are supported. |
| Recording and Playback Format | |
| PCM | 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz 16bit / 24bit |
| Recording | BWF (.wav) |
| Playback | BWF (.wav), WAV (.wav) |
| DSD | 2.8224 / 5.6448 MHz |
| Recording and Playback | DSDIFF (.dff), DSF (.dsf) |
| Number of channels | 2ch (Stereo/Mono x2) |

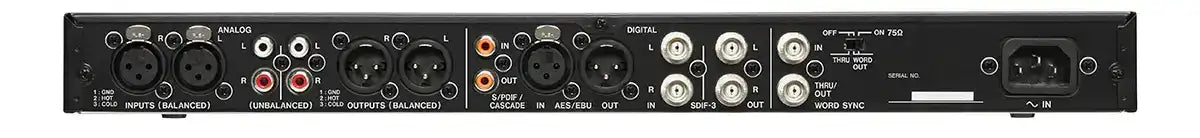

| Analog Inputs | |
| Unbalance | |
| Connector | RCA pin jacks |
| Nominal Input Level | -10dBV |
| Max Input Level | +6dBV |
| Minimum input level | -22dBV |
| Input impedance | 22kΩ or more |
| Balance | |
| Connector | XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) |
| Nominal Input Level | +4dBu +6dBu (at Max Input Level set to +15dBu) |
| Max Input Level | +15dBu, +18dBu, +20dBu, +22dBu, +24dBu |
| Minimum input level | -8dBu -6dBu (at Max Input Level set to +15dBu) |
| Input Impedance | 10kΩ or more |
| Analog Output | |
| Unbalance | |
| Connector | RCA pin jacks |
| Nominal Output Level | -10dBV |
| Max Output Level | +6dBV |
| Output Impedance | 200Ω or less |
| Balance | |
| Connector | XLR-3-32 equivalent (1: GND, 2: HOT, 3: COLD) |
| Nominal Output Level | +4dBu +6dBu (at Max Input Level set +15dBu) |
| Max Output Level | +15dBu, +18dBu, +20dBu, +22dBu, +24dBu |
| Output Impedance | 100Ω or less |
| Digital Input | |
| S/PDIF, CASCADE | Unbalance |
| Connector | RCA pin jacks |
| Format | IEC60958-3 (S/PDIF) |
| Input Frequency | |
| SRC OFF | 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz |
| SRC ON | 32～216kHz |
| Allowable Frequency Deviation | +/-100ppm (SRC OFF) |
| AES/EBU | Balance |
| Connector | XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) |
| Format | AES3-2003 / IEC60958-4 (AES/EBU) |
| Input Frequency | |
| SRC OFF | 44.1 / 48 / 88.2 / 96 / 176.4 / 192kHz |
| SRC ON | 32～216kHz |
| Allowable Frequency Deviation | +/-100ppm (SRC OFF) |
| SDIF-3 | Unbalance |
| Connector | BNC Connector x 2 (L/R) |
| Format | SONY SDIF-3 / DSD-raw |
| Clock Frequency | 44.1kHz |
| Digital Output | |
| S/PDIF, CASCADE | Unbalance |
| Connector | RCA pin jacks |
| Format | IEC60958-3 (S/PDIF) |
| AES/EBU | Balance |
| Connector | XLR-3-32equivalent (1: GND, 2: HOT, 3: COLD) |
| Format | AES3-2003 / IEC60958-4 (AES/EBU) |
| SDIF-3 | Unbalance |
| Connector | BNC Connector × 2 (L/R) |
| Format | SONY SDIF-3 / DSD-raw |
| Clock Frequency | 44.1kHz |
| WORD SYNC IN | |
| Connector | BNC Connector |
| Input level | 5V TTL equivalent |
| Input Impedance | 75Ω +/-10% |
| Input Frequency | 44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz |
| Allowable Frequency Deviation | +/-100ppm |
| WORD SYNC THRU/OUT | |
| Connector | BNC Connector |
| Output Level | 5V TTL equivalent |
| Output Impedance | 75Ω +/-10% |
| Output Frequency | 44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz |
| Frequency Stability | +/-1ppmor less (Ta=25˚C) |
| USB | |
| PLAY/COPY | |
| Connector | USB Type-A |
| Protocol | USB 2.0 HIGH SPEED (480Mbps) |
| Power Rating | DC 5.0V, 0.5A |
| REMOTE | |
| Connector | USB Type-A |
| Protocol | USB 1.1 FULL SPEED (12Mbps) |
| Power Rating | DC 5.0V, 0.2A |
| Control Input/Output | |
| Infrared receiver | RC-10 Supported (Wireless Remote Controller) |
| Headphone Output | |
| Connector | 6.3mm (1/4') Stereo Phone Jack |
| Max Output | 45mW + 45mW (32Ω load, Distortion: 0.1%) |
| Power Supply | AC120V (for North America), AC230V |
| Power Consumption | 24W |
| Dimensions | 483(W) × 45(H) × 305(D) mm 19.02(W) × 1.78(H) × 12.01(D) inch |
| Weight | 4.1 kg / 9.04 lb |
| Temperature rating | 0～+40˚C |
| Bundled Items | DA-3000SD x1 Power cord (3P) x1 RC-10(Wireless Remote Controller) x1 Lithium coin cell battery (CR2025) x1 A rack-mounting screw kit x1 Owner's Manual (including warranty) x1 |
* 0 dBu = 0.775 Vrms
* 0 dBV = 1 Vrms
Audio performance
| Recording | |
| Frequency Response | |
| PCM | 20～20kHz +0.1dB/-0.5dB (Fs=44.1k/48kHz, JEITA) 20～40kHz +0.1dB/-1dB (Fs=88.2k/96kHz, JEITA) 20～80kHz +0.1dB/-6dB (Fs=176.4k/192kHz, JEITA) |
| DSD | 20～50kHz +0.1dB/-3dB (DSD, JEITA) 20～100kHz +0.1dB/-12dB (DSD, JEITA) |
| Distortion | 0.003% or less (Ref: -16dB/BALANCED, JEITA) 0.005% or less (UNBALANCED, JEITA) |
| S/N Ratio | |
| PCM (24bit) | 113dB or more (Ref: -20dB/BALANCED, JEITA) 111dB or more (UNBALANCED, JEITA) |
| DSD | 106dB or more (Ref: -20dB/BALANCED, AES-17 20k LPF) 104dB or more (UNBALANCED, AES-17 20k LPF) |
| Crosstalk (1kHz) | 105dB or more (JEITA) |
| Playback | |
| Frequency Response | |
| PCM | 20～20kHz +/-0.1dB (Fs=44.1k/48kHz, JEITA) 20～40kHz +0.1dB/-0.3dB (Fs=88.2k/96kHz, JEITA) 20～80kHz +0.1dB/-3dB (Fs=176.4k/192kHz, JEITA) |
| DSD | 20～50kHz +0.1dB/-3dB (DSD, JEITA) 20～100kHz +0.1dB/-12dB (DSD, JEITA) |
| Distortion | 0.003% or less (Ref: -16dB/BALANCED, JEITA) 0.001% or less (UNBALANCED, JEITA) |
| S/N Ratio | |
| PCM | 118dB or more (Ref: -20dB/BALANCED, JEITA) 116dB or more (UNBALANCED, JEITA) |
| DSD | 116dB or more (Ref: -20dB/BALANCED, AES-17 20k LPF) 114dB or more (UNBALANCED, AES-17 20k LPF) |
