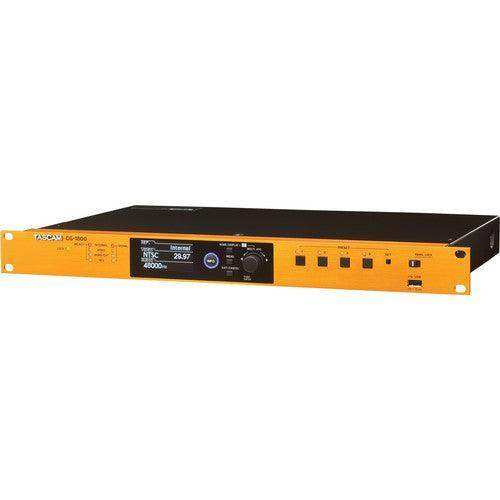

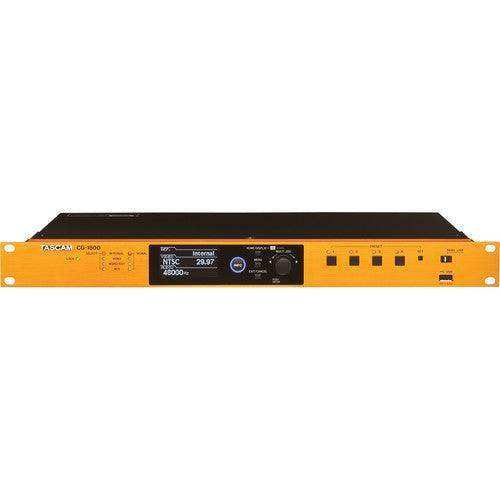

Tascam CG-1800 Video Sync/Master Clock Generator

The CG-1800 from TASCAM is specifically designed for small to large-scale video/audio synchronization systems. An OCXO (oven-controlled crystal oscillator) is used for its high precision and because it's not affected by the temperature of the environment. With a clock frequency precision of 0.01 ppm the unit delivers high-precision synchronization with a frequency stability of +/-0.005 ppm or less per day.

External clock jitter is reduced using an original circuit design that incorporates a high-performance video clock generator engineered with a FPGA and a PLL (phase-locked loop) circuit with a discrete filter. This enables a stable clock signal to be provided to the video/word outputs, improving system stability.

In addition to twelve Wordclock outputs and four video outputs, the digital outputs include two AES3/AES11 and two S/PDIF outputs, making this unit useful for large-scale audio/video synchronization systems and a wide variety of other applications. Of the twelve Wordclock outputs, two also support x2 Fs, x4 Fs and 256 Fs output, enabling them to be used in systems with Pro Tools and other DAW software.

The unit features multiple functions to support maintenance and the identification of issues if problems occur, allowing the device to provide troubleshooting support. Additionally, a logging function enables issues to be listed, and saved to a CSV file format on a USB flash drive. A self-correction function allows users to conduct maintenance using an external signal input and simple operations.

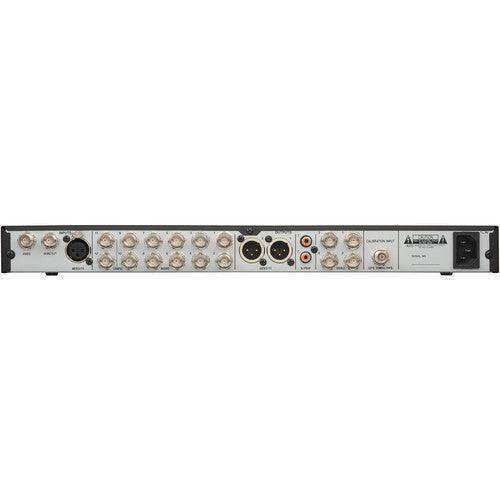

Amphenol BNC connectors on the chassis use nuts for coupling for extra durability, along with a single circuit board used for each connector. This provides good resistance to the twisting and pulling of cables, and the suppression of interference between connectors.

Features

• Highly Accurate OCXO Crystal
• NTSC, PAL, HD Tri-Level I/O
• 12 Wordclock Outs
• AES and S/PDIF I/O
• Pull-Up/Down for Film, NTSC, PAL
• Glitch-free Relocking Circuit
• Self Diagnosis of Problems
• Individual Circuit Board per Connector
• Panel-Lock Switch
• 1U Rackmount
