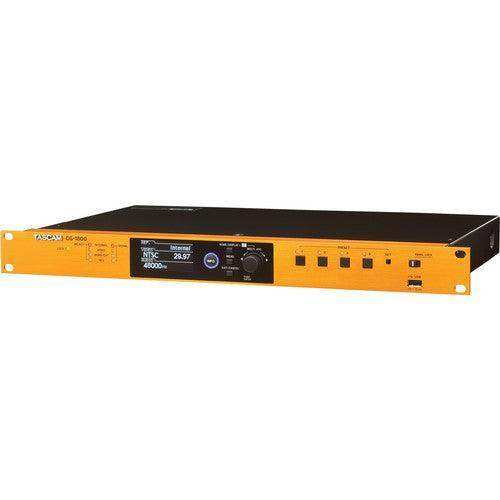

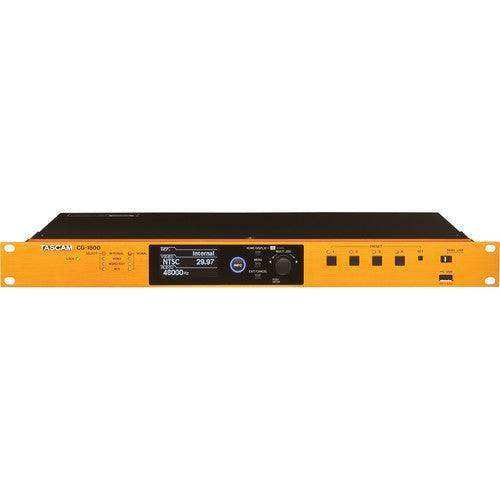

Tascam CG-1800 Video Sync/Master Clock Generator

Availability: Call for Availability
Availability: Direct Ship
Tascam SKU: CG-1800
No reviews
Price:
$2,599.00 $2,899.00

Description

The CG-1800 from TASCAM is specifically designed for small to large-scale video/audio synchronization systems. An OCXO (oven-controlled crystal oscillator) is used for its high precision and because it's not affected by the temperature of the environment. With a clock frequency precision of 0.01 ppm the unit delivers high-precision synchronization with a frequency stability of +/-0.005 ppm or less per day.

External clock jitter is reduced using an original circuit design that incorporates a high-performance video clock generator engineered with a FPGA and a PLL (phase-locked loop) circuit with a discrete filter. This enables a stable clock signal to be provided to the video/word outputs, improving system stability.

In addition to twelve Wordclock outputs and four video outputs, the digital outputs include two AES3/AES11 and two S/PDIF outputs, making this unit useful for large-scale audio/video synchronization systems and a wide variety of other applications. Of the twelve Wordclock outputs, two also support x2 Fs, x4 Fs and 256 Fs output, enabling them to be used in systems with Pro Tools and other DAW software.

The unit features multiple functions to support maintenance and the identification of issues if problems occur, allowing the device to provide troubleshooting support. Additionally, a logging function enables issues to be listed, and saved to a CSV file format on a USB flash drive. A self-correction function allows users to conduct maintenance using an external signal input and simple operations.

Amphenol BNC connectors on the chassis use nuts for coupling for extra durability, along with a single circuit board used for each connector. This provides good resistance to the twisting and pulling of cables, and the suppression of interference between connectors.

  • Highly Accurate OCXO Crystal
  • NTSC, PAL, HD Tri-Level I/O
  • 12 Wordclock Outs
  • AES and S/PDIF I/O
  • Pull-Up/Down for Film, NTSC, PAL
  • Glitch-free Relocking Circuit
  • Self Diagnosis of Problems
  • Individual Circuit Board per Connector
  • Panel-Lock Switch
  • 1U Rackmount
Clock Type Master Clock & Distribution
Oscillator OCXO (Oven-Controlled Crystal Oscillator)
Clock Frequency and Supported Sample Rates AES3/AES11 Input:
32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
AES3/AES11 Output:
32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Word Clock Input:
32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Word Clock Output:
32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Atomic Clock Input:
10.0 MHz
GPS Clock Input:
10.0 MHz
Supported Frame Rates SD/Black Burst:
29.97 / 30 / 25 fps
HD 720p:
50 / 59.94 / 60 fps
HD 1080p:
23.976 / 24 / 25 / 29.97 / 30 / 59.94 / 60 fps
HD 1080i:
23.976 / 24 / 25 / 29.97 / 30 fps
HD 1080PfS:
23.976 / 24 / 25 / 29.97 / 30 fps

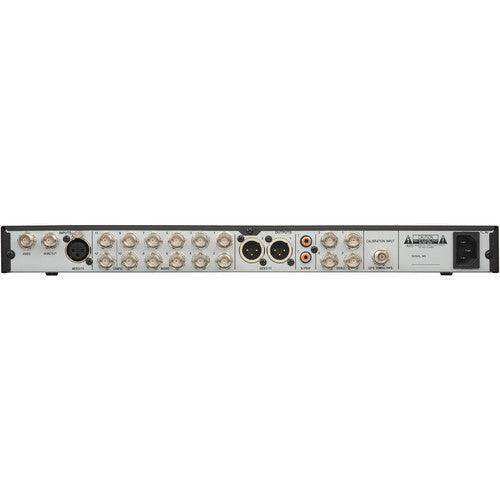

Connectivity
Inputs 1x BNC Video
1x XLR 3-Pin AES3/AES11
1x BNC Word Clock
Outputs 12x BNC Word Clock Output
2x RCA Coaxial S/PDIF Output
4x BNC Video Output
2x XLR 3-Pin AES3/AES11 Output
USB I/O 1x USB-A 2.0 (External Storage, Update)
Performance
Clock Accuracy Internal:
±0.01 ppm
AES3/AES11 Input:
±50 ppm
Video Input:
±10 ppm
Word Clock Input:
±50 ppm
Clock/Oscillator Stability ±0.005 ppm per Day
Input Level AES3/AES11:
0.2 to 10 V p-p
Video:
0.5 to 2 V p-p
Word Clock:
0.5 to 5 V p-p
Output Level AES3/AES11:
2.5 V p-p
Coaxial S/PDIF:
0.5 V p-p
Video:
1.3 V p-p
Word Clock:
1 to 3.5 V p-p
Impedance AES3/AES11 Input:
110 Ohms
AES3/AES11 Output:
110 Ohms
Coaxial S/PDIF Output:
75 Ohms
Video Input:
75 Ohms (On/Off Selectable)
Video Output:
75 Ohms
Word Clock Input:
75 / 50 Ohms (Selectable)
Word Clock Output:
75 Ohms
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 10 W
Physical
Rackmount Size 1 RU
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 19 x 12.2 x 1.75" / 483 x 310 x 45 mm
Weight 7.1 lb / 3.2 kg
Packaging Info
Package Weight 9.45 lb
Box Dimensions (LxWxH) 21.5 x 16.3 x 5.1"
