Tascam BO-32DE Rackmount 32-Channel DB25 to Euroblock I/O Adapter

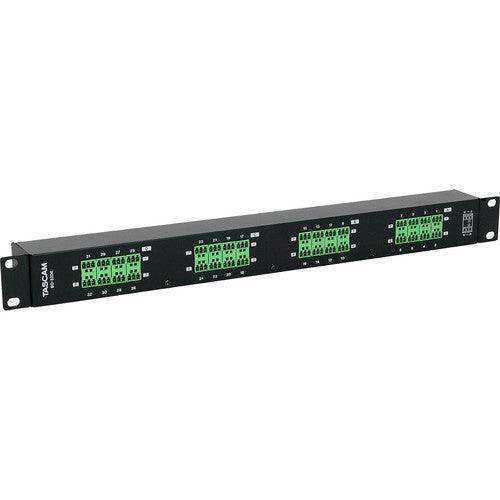

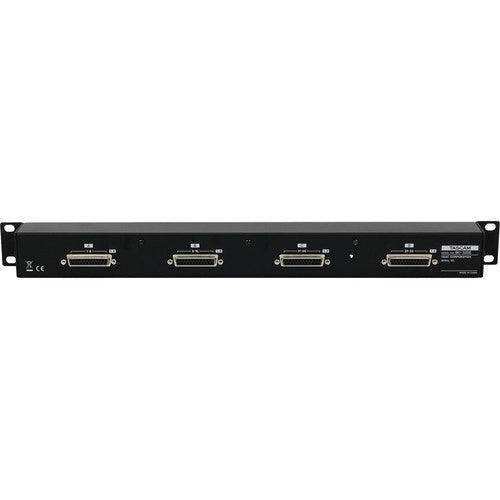

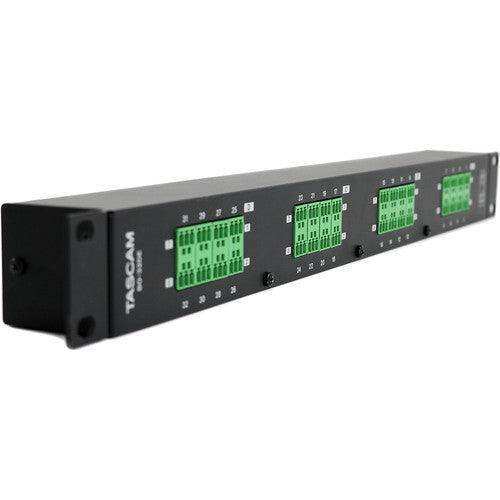

The TASCAM BO-32DE is a passive rackmount 32-channel DB25 to Euroblock I/O adapter designed to deliver multi-channel conversion between D-Sub 25-pin and Euroblock for system installers, A/V technicians, and audio engineers in houses of worship, clubs, restaurants, and live stage applications. Its 32 channels of I/O include 16 Euroblocks and four DB25 connectors, all of which can be used as inputs or outputs.
The enclosure occupies 1 RU and allows rotatable orientation to avoid unnecessary stress on cables. The reversible rack ears enable the BO-32DE to be positioned with either the Euroblock or DB25 connectors facing forward. 32 Euroblock plug tabs, a cable kit, and a rackmount screw kit are included.
- Ideal for providing connectivity between CD players, digital audio players, microphone preamps, zone mixers, distribution amplifiers, audio over IP converters, and more
- 32 channels of I/O
- 16 Euroblock balanced connectors
- Four DB25 balanced connectors
- Connectors function as inputs or outputs to accommodate a range of routing scenarios
- Mount in either of two 180° rotations to simplify cable runs and avoid unnecessary stress on cables
- Reversible rack ears can be positioned to face forward or backward so that either the Euroblock or DB25 connectors are front facing
- Shallow 2" depth uses minimal rack space
- Passive design requires no power source
- Includes 32 Euroblock plug tabs, cable kit, and rackmount screw kit
Features
- For Live Stage & Commercial Installation
- 32 Channels of I/O
- 16 x Euroblock Connectors
- 4 x DB25 Connectors
- Connectors Function as Inputs or Outputs
- Rotatable Orientation
- Reversible Rack Ears
- Passive Design Requires No Power Source
- Includes 32 Euroblock Plug Tabs
- Includes Cable & Screw Kits
Specifications
TASCAM BO-32DE Specs
| I/O Connectors | 16 x Euroblock balanced connectors, 3.81 mm pitch 4 x DB25 balanced connectors (D-Sub 25-pin) |
| Other Connectors | 8 x 4-40 UNC inch-type attachment screws |
| Dimensions | 19.0 x 1.7 x 2.0" / 482.6 x 44.1 x 50.8 mm |
| Weight | 2 lb / 0.9 kg |
| Package Weight | 3.1 lb |
| Box Dimensions (LxWxH) | 21 x 5.5 x 4.9" |
