Tascam BO-16DX/OUT Rackmount 16-Channel DB25 to XLR Male Adapter
Tascam BO-16DX/OUT Rackmount 16-Channel DB25 to XLR Male Adapter is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Tascam BO-16DX/OUT Rackmount 16-Channel DB25 to XLR Male Adapter

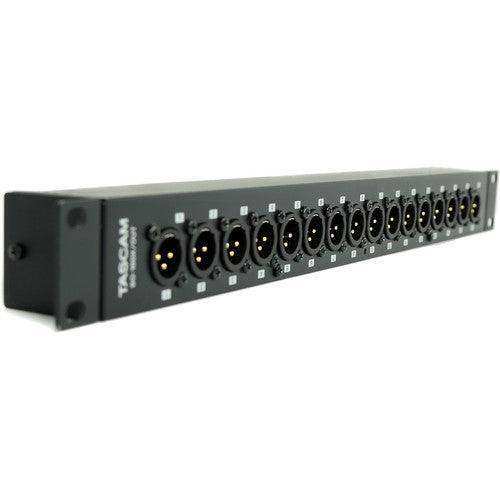

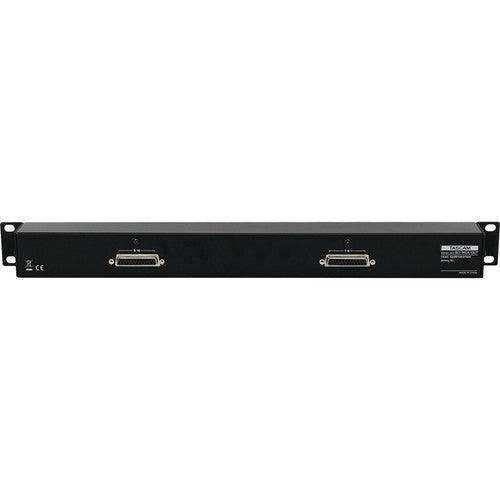

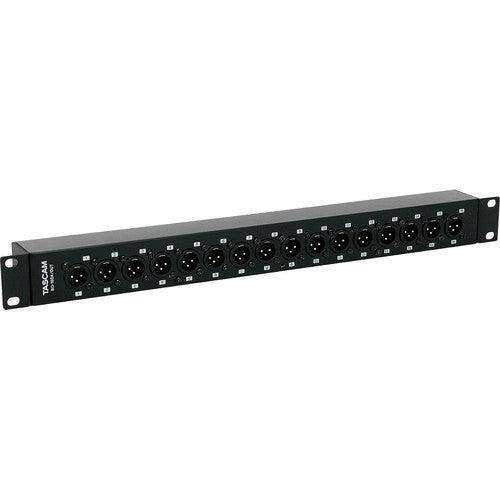

The TASCAM BO-16DX/OUT is a rackmount 16-channel DB25 to XLR male designed to deliver multi-channel conversion between D-Sub 25-pin and XLR 3-pin male for system installers, A/V technicians, and audio engineers in houses of worship, clubs, restaurants, and live stage applications. Its 16 channels of I/O include two DB25 female connectors and 16 XLR 3-pin male connectors.
The enclosure occupies 1 RU and allows rotatable orientation to avoid unnecessary stress on cables. The reversible rack ears enable the BO-16DX/OUT to be positioned with either the XLR or DB25 connectors facing forward. Being passive, it requires no power source. A rackmount screw kit is included for easy installation.
- Ideal for interfacing between stage boxes, FOH and monitor mixing consoles, audio over IP converters, and more
- 16 analog input channels via two DB25 female connectors
- 16 analog output channels via 16 XLR 3-pin male connectors
- Mount in either of two 180° rotations to simplify cable runs and avoid unnecessary stress on cables
- Reversible rack ears can be positioned to face forward or backward so that either the XLR or DB25 connectors are front facing
- Shallow depth uses minimal rack space
- Passive design requires no power source
- Includes rackmount screw kit
Features
- For Live Stage & Commercial Installation
- 2 x DB25 Female Inputs
- 16 x XLR Male Outputs
- Rotatable Orientation
- Reversible Rack Ears
- Passive Design Requires No Power Source
- Includes Rackmount Screw Kit
Specifications
TASCAM BO-16DX/OUT Specs
| Inputs | 2 x DB25 female |
| Outputs | 16 x XLR 3-pin male |
| Other Connectors | 4 x 4-40 UNC inch-type attachment screws |
| Dimensions | 19.0 x 1.7 x 2.0" / 482.6 x 44.1 x 51.5 mm |
| Weight | 2 lb / 0.9 kg |
| Package Weight | 3.4 lb |
| Box Dimensions (LxWxH) | 21 x 5.5 x 4.9" |
