Tascam BO-16DX/IN Rackmount 16-Channel XLR Female to DB25 Adapter

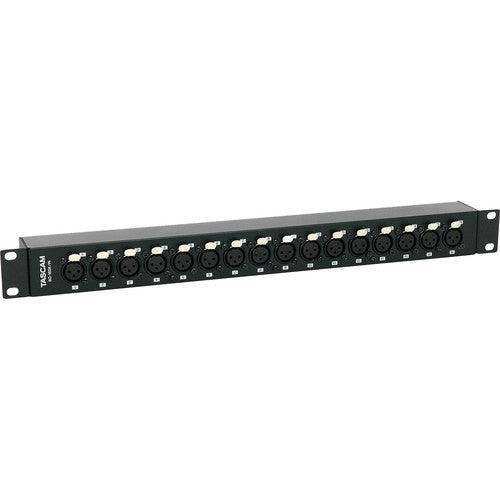

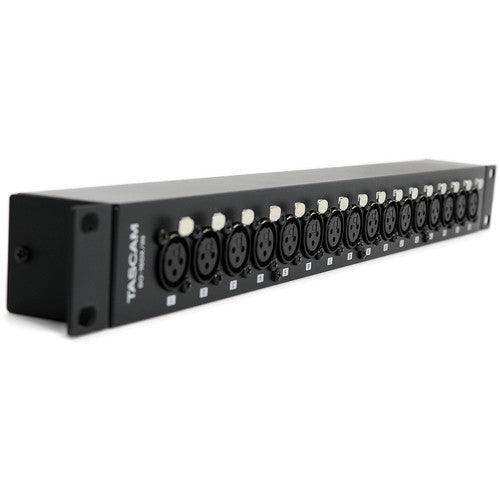

The TASCAM BO-16DX/IN is a rackmount 16-channel XLR female to DB25 designed to deliver multi-channel conversion between D-Sub 25-pin and XLR 3-pin female for system installers, A/V technicians, and audio engineers in houses of worship, clubs, restaurants, and live stage applications. Its 16 channels of I/O include 16 XLR 3-pin female connectors and two DB25 female connectors.
The enclosure occupies 1 RU and allows rotatable orientation to avoid unnecessary stress on cables. The reversible rack ears enable the BO-16DX/IN to be positioned with either the XLR or DB25 connectors facing forward. Being passive, it requires no power source. A rackmount screw kit is included for easy installation.
- Ideal for interfacing between stage boxes, FOH and monitor mixing consoles, audio over IP converters, and more
- 16 analog input channels via 16 XLR female connectors

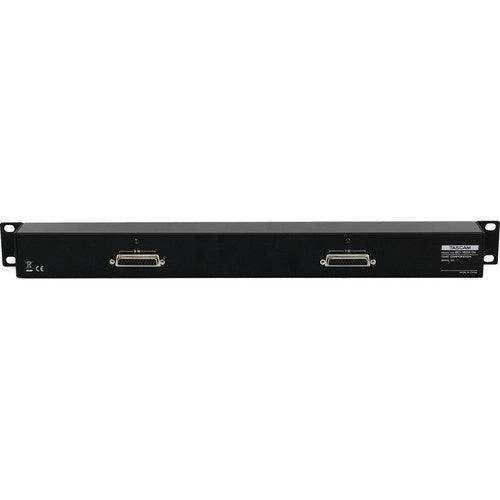

- 16 analog output channels via two DB25 female connectors
- Mount in either of two 180° rotations to simplify cable runs and avoid unnecessary stress on cables
- Reversible rack ears can be positioned to face forward or backward so that either the XLR or DB25 connectors are front facing
- Shallow depth uses minimal rack space
- Passive design requires no power source
- Includes rackmount screw kit
Features
- For Live Stage & Commercial Installation
- 16 x XLR Female Inputs
- 2 x DB25 Female Outputs
- Rotatable Orientation
- Reversible Rack Ears
- Passive Design Requires No Power Source
- Includes Rackmount Screw Kit
Specifications
TASCAM BO-16DX/IN Specs
| Inputs | 16 x XLR 3-pin female |
| Outputs | 2 x DB25 female |
| Other Connectors | 4 x 4-40 UNC inch-type attachment screws |
| Dimensions | 19.0 x 1.7 x 2.1" / 482.6 x 44.1 x 54.5 mm |
| Weight | 2 lb / 0.9 kg |
| Package Weight | 3.05 lb |
| Box Dimensions (LxWxH) | 21.4 x 5.5 x 4.95" |
