Tascam BD-MP4K 4K Uhd Blu-Ray Multimedia Player

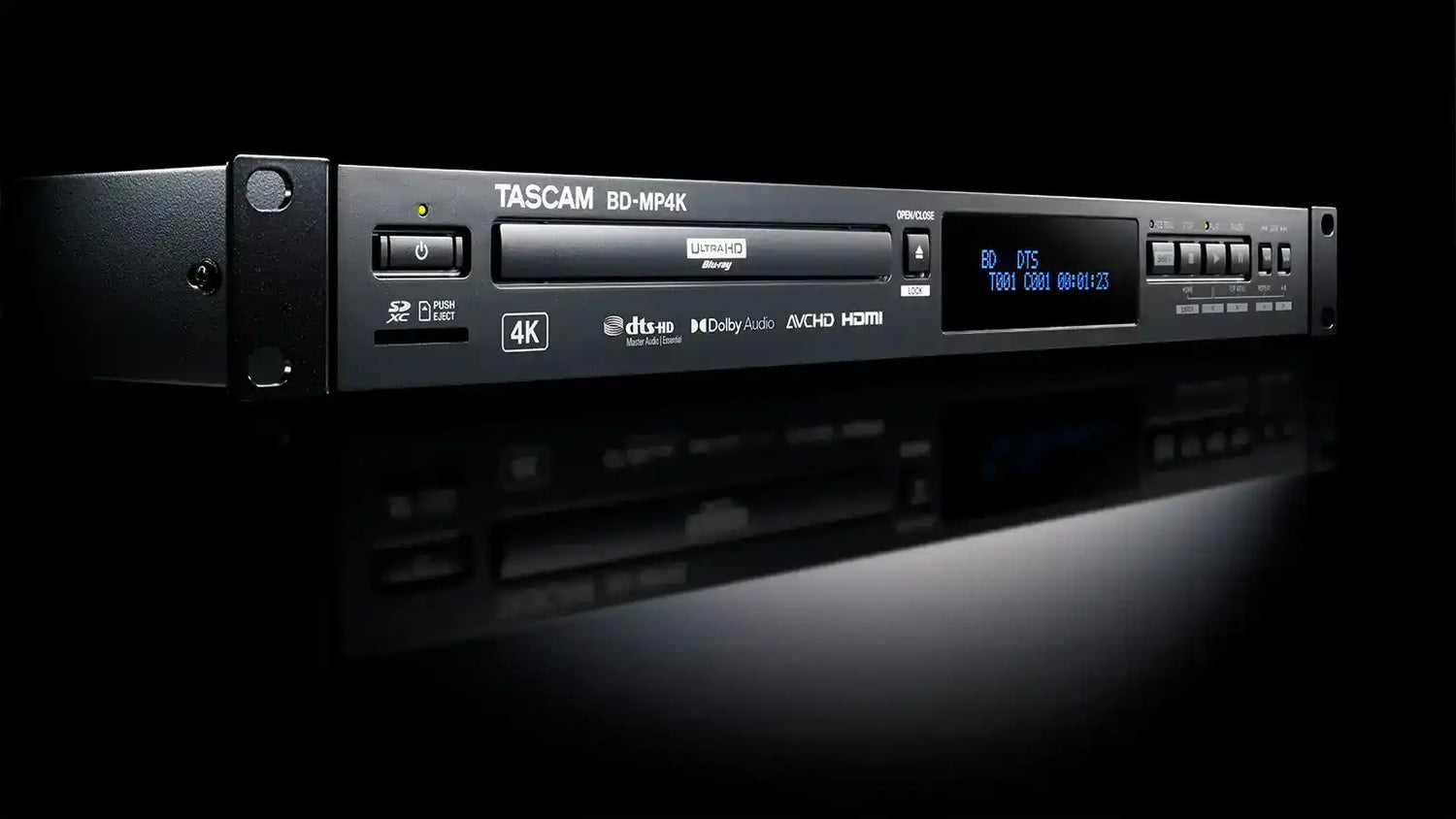

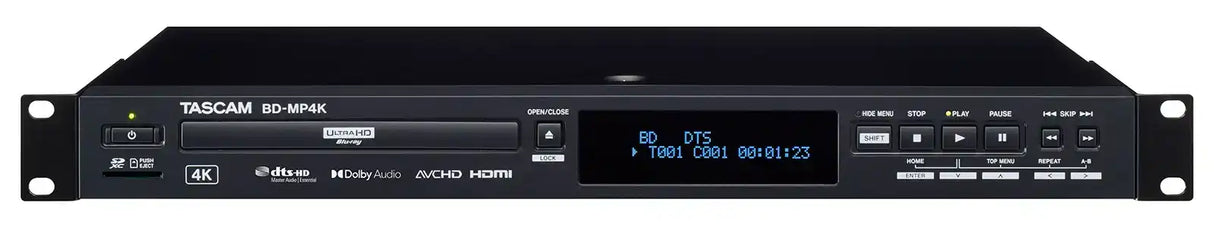

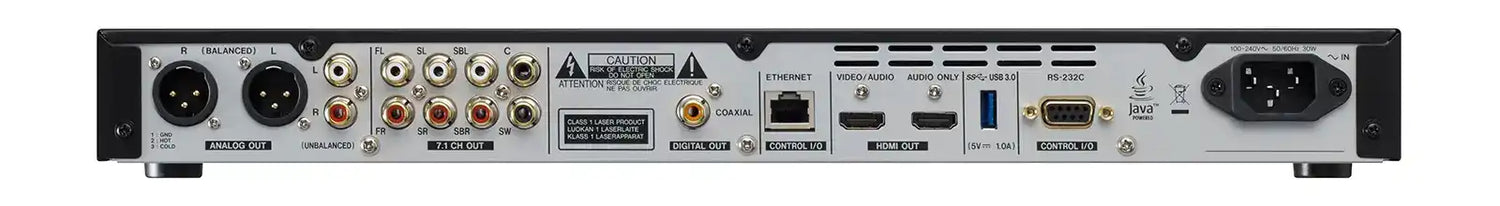

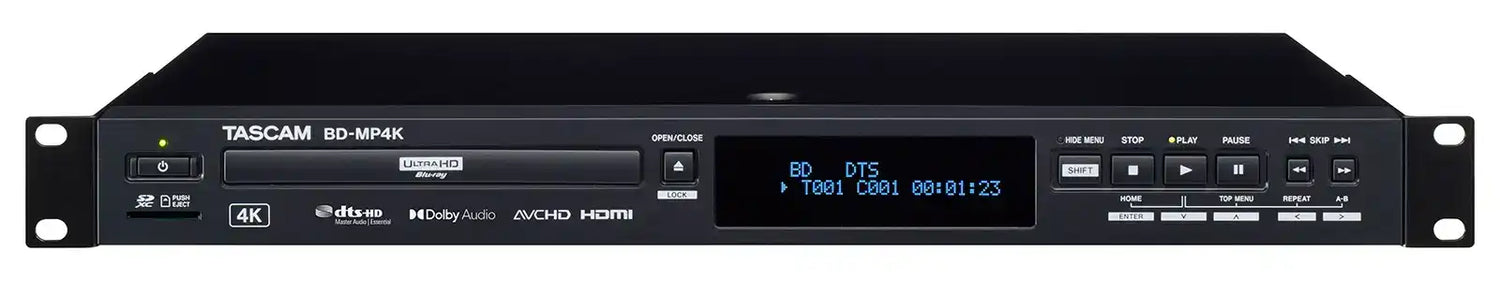

The BD-MP4K Professional-Grade 4K UHD Blu-ray Player from TASCAM is a 1 RU rackmount 4K Blu-ray player with DVD/CD, SD card, and USB flash memory playback. It can be controlled remotely using an included IR remote or over RS-232C or LAN. It features an HDMI video output with embedded audio for connection to displays or switchers, and an audio-only HDMI output. Only one of these can be used at a time, with the audio output prioritized.
Features
- Supports 4K Ultra HD BD, Blu-ray Disc, DVD, CD playback
- Supports exFAT file format and playback of various formats of video, image and audio from SD cards and USB flash memory
- Power on Play for BD/4K UHD BD, DVD, CD-DA
- HIDE MENU function
- HDMI 2.0 audio/video output, HDMI 1.4 audio output
- XLR balanced audio output, RCA stereo audio output
- RCA unbalanced 7.1ch audio output
Specs
| Disc Media | |
| Blu-ray | 4K Ultra HD BD, BD25, BD50, BD-ROM, BD-R, BD-RE |
| DVD | DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW |
| CD | CD-DA, CD-R, CD-RW |
| Disc type | |
| Blu-ray | BDMV, BDAV |
| DVD | DVD-Video, DVD-VR, AVCHD |
| Format | FAT16, FAT32, exFAT or NTFS file system is needed in order to format USB flash memory and SD cards. |
| Video | ASF, MPG, AVI, 3GP, DAT, MKV, MOV, M2TS, OGM, TP, TS, MP4, WMV |
| Audio | WAV, MP3, WMA, AAC, FLAC, APE |
| Picture | JPEG, GIF, PNG |
| Audio | |
| Blu-ray/DVD/USB/SD | |
| Sampling frequency | 44.1k/48k/64k/88.2k/96k/176.4k/192k Hz |
| Bit length | 16/24 bit |
| CD | |
| Sampling frequency | 44.1k/48k Hz |
| Bit length | 16/24 bit |
| MP3/WMA | |
| Sampling frequency | 32k/44.1k/48k Hz |
| Bit rate | |
| MP3 | 112k to 320k bps |
| WMA | 48k to 192k bps *Supports Ver.9 standard only, DRM not supported |
| HDMI Output | * HDMI audio output is limited to one with AUDIO ONLY prioritized. (For HDMI Audio output, both AUDIO ONLY and VIDEO/AUDIO cannot be output simultaneously). |
| VIDEO/AUDIO | |
| Connector | HDMI 19pin Type A |
| Version | 2.0 |
| Resolution | 480i/576i, 480p/576p, 720p, 1080i, 1080p, 2160p *Monitor and cable must support 2160p output |
| Aspect ratio | 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox |
| Video format | NTSC, PAL, Multi |
| HDMI signal system | RGB PC level, RGB Video level, YCbCr(4:4:4), YCbCr(4:2:2) |
| AUDIO ONLY | *Video signals are not exported through the AUDIO ONLY terminal |
| Connector | HDMI 19pin Type A |
| Version | 1.4 |
| Digital audio outputs | |
| COAXIAL | |
| Connector | RCA pin jack |
| Format | IEC60958-3(S/P DIF) |
| Output impedance | 75Ω |
| Analog audio outputs | |
| Balanced | |
| Connector | XLR-3-32(1 : GND, 2 : HOT, 3 : COLD) × 2 (Stereo) |
| Nominal output level | +4dBu (1.23 Vrms) |
| Maximum output level | +20dBu (7.75Vrms) |
| Output impedance | 200Ω |
| Unbalanced | |
| Connector | RCA pin jack × 2 |
| Nominal output level | -10dBV (0.316 Vrms) |
| Maximum output level | +6dBV (2.0Vrms) |
| Output impedance | 200Ω |
| 7.1CH audio outputs | |
| Connector | RCA pin jack × 8 (FL/FR/SL/SR/SBL/SBR/C/SW) |
| Connector color | FL, SL, SBL : White FR, SR, SBR : Red C, SW : Black |
| Nominal output level | -10dBV (0.316 Vrms) |
| Maximum output level | +6dBV (2.0Vrms) |
| Output impedance | 200Ω |
| RS-232C | |
| Connector | D-sub 9pin |
| Format | RS-232C compliant |
| ETHERNET | |
| Connector | RJ-45 |
| Compatible standard | 10BASE-T/100BASE-TX/1000BASE-T |
| Protocol | SMB1/CIFS for Network Attached Storage TCP/IP for remote control |
| USB | |
| Connector | USB type-A x1 (Rear) |
| Protocol | USB 3.0 compliant |
| Rated supply voltage | DC 5V, 1A |
| Mass storage class | 2TB (Max) |
| File format | FAT16/FAT32/exFAT/NTFS |
| SD | |
| Media | SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB) |
| Storage class | 512GB (Max) |
| File format | FAT16/FAT32/exFAT |
| Power | AC 100V to 240V, 50/60Hz |
| Power consumption | 30W |
| Dimensions | 482.6(W) × 44.0(H) × 280.7(D) mm |
| Weight | 2.78kg / 6.13lb |
| Operating temperature | 5 to 35°C |

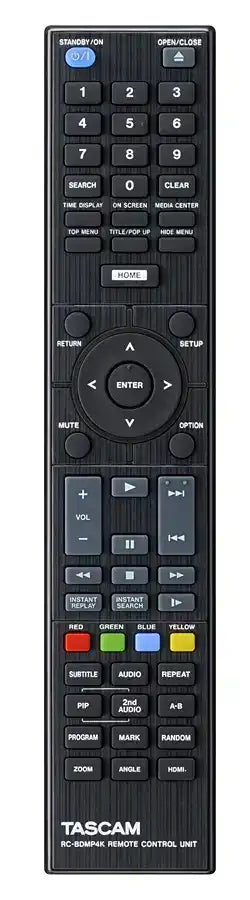

| Included items | Remote control unite (RC-BDMP4K), AAA batteries ×2, AC power code, 3P-2P conversion adapter, Rack-mounting kit, Owner's manual (with warranty) |
Audio performance
| Frequency response | 20Hz to 20kHz, +/-0.5dB (JEITA) |
| THD | 0.03% or less (1kHz, JEITA) |
| S/N ratio | 96dB or more (JEITA) |
| Dynamic range | 96dB or more (JEITA) |
| Channel separation | 89dB or more ( JEITA) |
