Cambridge Sound NPX G1100 10-button convenience paging station - 911.1839.900

Authorized Dealer

$1,815.00

Shipping calculated at checkout.

Cambridge Sound | SKU: 911.1839.900

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

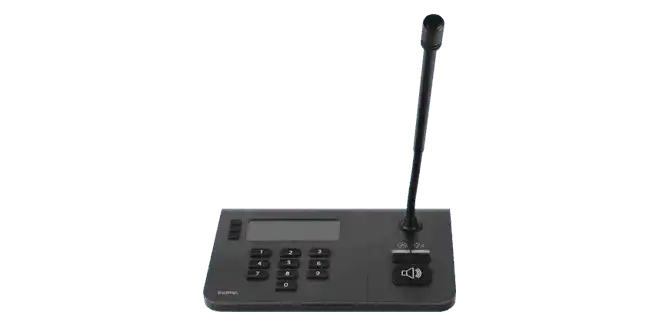

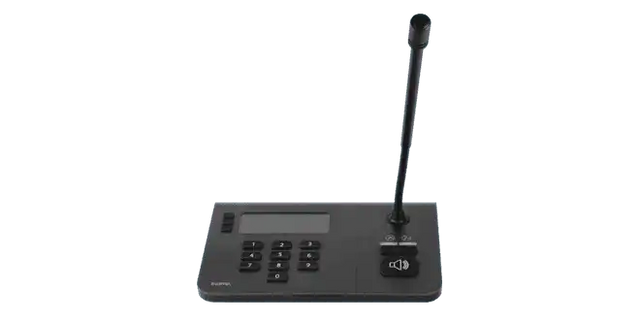

The Cambridge NPX G1100 is a 10-button paging station that's perfect for use in Qt® X and Tesira® systems. It comes with a gooseneck microphone and has embedded DSP and on-board memory to support standard and advanced public address functions. With the option to transmit data via either AVB or Dante®, this paging station can store up to 999 user-configurable page codes and 10 pre-recorded messages, making it versatile and efficient. It can be easily mounted on a tabletop or wall, and the removable "foot" allows it to be installed flat against any surface. The NPX G1100 also includes a K-slot for improved physical security with an optional Kensington® lock. Whether you're managing a small or large facility, the NPX G1100 meets all your convenience paging needs.

Features

• Push-to-talk button with status indication
• Page latch button for hands-free paging
• Up to 999 user-configurable page codes
• Up to 16 software configurable priority paging levels
• Audio and control data transmission via AVB or Dante
• Local digital signal processing
• Supports tabletop or wall mounting
• Supports stored message playback (up to 10 messages)
• 50 minute recording pool for all 10 messages

• Removable foot for flat mounting
• Local storage of default and/or custom preambles
• High-quality gooseneck cardioid microphone
• Powered by PoE+ (IEEE 802.3at Class 3, 15.4W)
• Backlit liquid crystal display (LCD) technology
• Optional PIN to restrict unauthorized use
• NRTL listed to UL 62638-1, CSA C22.2 #62368-1, CE
marked, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty

Specifications

NETWORK CONNECTION:

Gigabit Ethernet, RJ-45
(Cat 5e and above)

FREQUENCY RESPONSE (150HZ - 16KHZ):

± 3dB

SNR (1KHZ, 94DBSPL A-WEIGHTED):

> 76dB

MAXIMUM SPL (THD+N < 1%):

109dB

DIMENSIONS:

1.9 x 9.1 x 7.2 inches
(47 x 230 x 182 mm)

WEIGHT:

2.4 lbs (1080 g)

DOWNLOAD SPEC SHEET

DOWNLOAD»

FAQ

Can the NPX be used with the TesiraFORTE X?

Yes, the NPX will work with all Tesira server-class devices.

What networked audio protocols does the NPX support?

All NPX models support AVB and Dante networked audio protocols. Paging stations in the same system must use the same protocol which is selected in the Tesira software at the time of configuration.

What considerations are there when using a particular networked audio protocol?

AVB requires the use of AVNu certified switches or one of our recommendations located here. Dante requires a compatible network as per Audinate recommendations. Integrating to AVB only Tesira systems requires the use of a TesiraCONNECT TC-5D. PoE requirements from the switches should be considered based on the number of NPX devices and other PoE devices in the system.

How many paging stations does a Tesira system with NPX support?

A Tesira system supports up to 16 paging stations per configuration.

How many paging zones does a Tesira system with NPX support?

A Tesira system supports up to 32 paging zones per configuration.

How many page codes can be configured on the NPX?

Up to four page codes can be configured for NPX H1040/G1040 and up to 999 page codes for H1100/G1100.

How many recorded messages and preambles does the NPX store?

All NPX models store up to 10 recorded messages and 10 preambles (5 are preloaded and cannot be erased). The shared total of available audio for messages and preambles is 50 minutes.

Can messages currently on a paging station be extracted?

Yes, they are available as wav files through the paging station Device Maintenance function.

Can messages be duplicated across paging stations?

No, paging stations do not share page codes and are treated as separate entities. Page codes can be downloaded and uploaded to additional stations through the paging station Device Maintenance function.

What file formats can be used to upload messages and preambles?

Users may upload wav, mp3 and m4a file formats to the NPX.

Can the paging station be locked with a pin code? Is that pin code able to restrict the page codes available to individual operators?

Paging stations support the use of pin codes to restrict access from unauthorised persons. The available page codes remain the same for all operators.

Do paging stations participate in the event logs and do they report if there is a problem?

Device health, availability and other events that may affect the Tesira system are automatically logged.

Can the paging stations be used for emergency messaging?

Tesira is not designed as a life safety system. For life safety, fire panel integration and redundancy we recommend moving to a Biamp Vocia paging solution.

Can a recorded message in an NPX be played back from the event scheduler or logic input?

Yes, a page code assigned to an NPX can be included in a special preset function which plays the message inside the page code. The preset can be recalled in Tesira by using the event scheduler or a logic function resulting in the page code being recalled and its message played.
