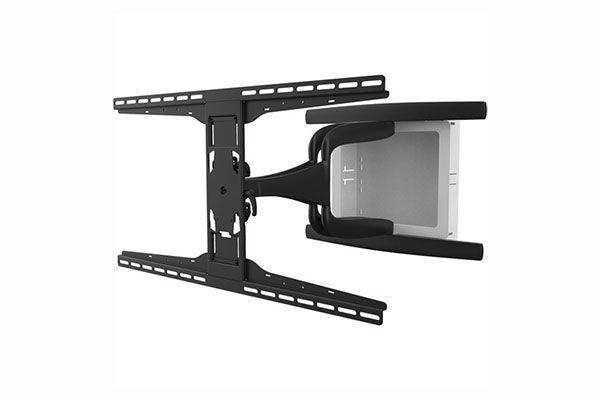

Peerless-AV Designer Series Articulating Mount w/In-Wall Box for 42...
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Designed for use with displays that are less than 3" (76mm) deep.
The display must have a flat mounting surface, or mounting holes need to be on the furthest back surface of the display.
Product Highlights
- Includes Articulating Mount with 800 x 400mm VESA® adaptors
- I-shaped adaptor plate helps avoid blocking connections on the back of display
- Removable trim ring allows for pre-construction or retrofit installations
- Obstruction free In-Wall Box provides ample room and accessibility to equipment
- Removable mounting plates allow wiring terminations to take place outside of the box to ease the installation process
- Up to ±90° of side-to-side swivel
- Added ±5° of roll for post-installation display leveling without the use of tools
- Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
- Landscape or portrait mounting options increases display versatility
- Low profile design provides an ADA compliant solution when used with displays 2" thick or less
- Installs between 16" (406mm) stud centers, to a single stud, or directly into a drywall opening
- Knock-outs for 3/4" , 1.0" , 1.25" and 1.5" conduit
- Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm)
- Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
- Knock-outs provide the ability to mount up to four single gang outlets; Compatible with RACO 420 gang box or equivalent
- Integrated cable tie locations
