Netgear XSM4316S-100NES M4300-8X8F Stackable Managed Switch with 16x10G Including 8x10GBase-T and 8xSFP+ Layer 3
Netgear XSM4316S-100NES M4300-8X8F Stackable Managed Switch with 16x10G Including 8x10GBase-T and 8xSFP+ Layer 3 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Netgear XSM4316S-100NES M4300-8X8F Stackable Managed Switch with 16...

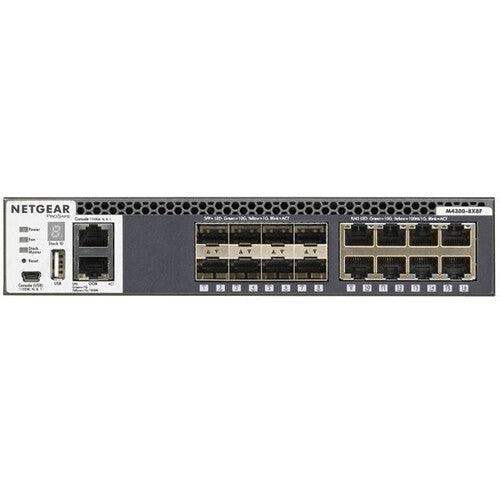

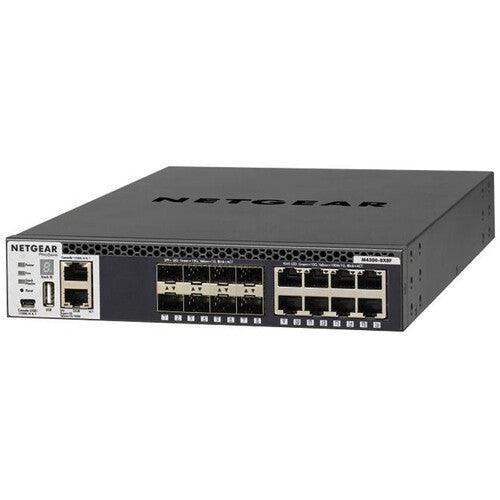

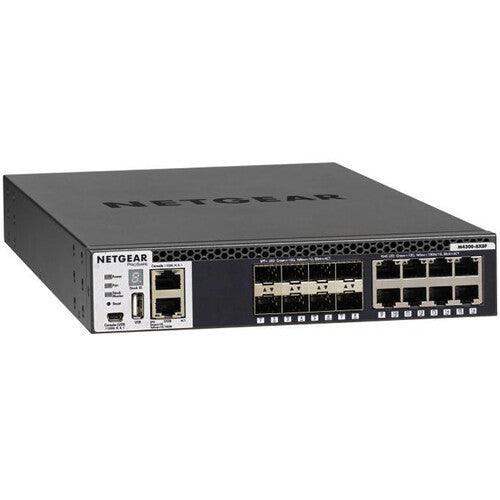

The M4300-8X8F features sixteen 10G ports, comprised of eight RJ45 copper wire connectors and eight SFP+ fiber optic transceiver slots. This switch is designed to smoothly transfer data with a 320 Gb/s switching capacity and 238 Mpps forwarding rate. Your data is secured by features such as access control, private VLANs, and denial of service (DoS) attack protection. The half-width design allows you to install two switches into the same rackmount space for redundancy. A modular 250W power supply is included.
Features
- 8 x 10G RJ45 Ports
- 8 x 10G SFP+ Slots
- 320 Gb/s Switching Capacity
- 238 Mpps Forwarding Rate
- Half-Width Rackmount Design
- Includes Modular 250W PSU
- Fan Cooled
- Pre-Configured for AV-Over-IP
- License-Free Layer 2 & 3 Features
Specs
Netgear XSM4316S-100NES Specs
| Wi-Fi | None |
| Inputs/Outputs | 8 x 10Gb Ethernet (RJ45) 8 x 10Gb SFP 1 x RS-232 (Console) 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Console) 1 x Mini-USB (Console) 1 x USB-A |
| Layer Services Supported | Layer 2 Support, Layer 3 Support, Layer 4 Support |
| Supported Protocols | Auto-MDIX/MDI Auto-VoIP DHCP Server DoS IGMP Snooping IPv4 IPv6 Link Aggregation MAC Filtering Port Mirroring RADIUS SNMPv1 SNMPv2c SNMPv3 TLS |
| Queuing | Strict Priority |
| Transmission Method | Store-and-Forward |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 16K |
| VLAN Groups | 4093 |
| VLAN IDs | 4093 |
| Security Features | DHCP Snooping DoS Attack Prevention RADIUS Authentication Storm Control |
| Access Control List | 100 |
| IP Interfaces | 128 |
| Static Routes | 64 |
| SNMP Support | 1, 2, 3 |
| Supported IEEE Standards | 802.1ab, 802.1as, 802.1ax, 802.1d, 802.1p, 802.1q, 802.1qat, 802.1qav, 802.1qbb, 802.1s, 802.1v, 802.1w, 802.1x, 802.3, 802.3ad, 802.3ae, 802.3af, 802.3at, 802.3az, 802.3ba, 802.3bz, 802.3u, 802.3x |
| Latency | 0.7 to 2.6 µs |
| Forwarding Rate | 238 Mpps |
| Switching Bandwidth | 320 Gb/s (Non-Blocking) |
| Packet Buffer | 16 Mb |
| Flash Memory | 256 MB |
| CPU | Up to 800 MHz Single-Core |
| Memory | 1 GB |
| Power Draw | 49.00 W (Max) |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | Internal |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 90% (Non-Condensing) |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Storage Humidity | 95% (Non-Condensing) |
| Operating Altitude | 10,000' / 3048 m |
| Storage Altitude | 10,000' / 3048 m |
| Noise Level | 36.9 dB |
| Certifications | CE, VCCI, RCM, CCC, FCC, BSMI, CB *as per Manufacturer |
| Cooling System | Fan |
| Mean Time Between Failures (MTBF) | 196,120 Hours |
| Indicator Lights | Link/Activity/Speed, Master, Power, Stack |
| Rack Form Factor | 1 RU |
| Dimensions | 13.58 x 8.35 x 1.73" / 34.49 x 21.21 x 4.39 cm |
| Weight | 7.31 lb / 3.32 kg |
| Package Weight | 11.16 lb |
| Box Dimensions (LxWxH) | 22.7 x 14.3 x 3.6" |
