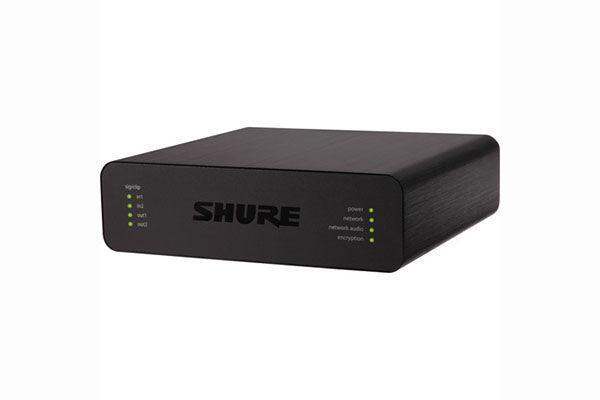

Shure ANI4IN-XLR Audio Network Interface (XLR Connectors)
Description
The 1/3 RU Microflex Advance Dante Mic/Line Audio Network Interface Unit from Shure is an interface unit with four 3-pin XLR input ports that convert four line or microphone analog signals onto a Dante network for audio routing and browser-based control. It features a single Ethernet port, customizable EQ settings, channel summing, and LEDs that indicate the device status and audio signal. It is compatible with third party control systems.
Features
- Single Ethernet port carries Dante audio, power (PoE - class 0)
- Control strings for third-party preset controllers including Crestron and AMX
- Four band C/S PEQ on every channel
- Provides channel summing to combine input signals and send them over a single Dante channel
- Browser-based software control for all device parameters, per input channel for preamp gain, phantom power, mute control, digital gain, and polarity control
Specification
| Inputs (Analog) | 2 x 3-pin XLR connectors |
| Outputs (Analog) | 2 x 3-pin XLR connectors |
| Dante Connection | 1 x RJ45 Channel Count: 2 inputs, 2 outputs |
| Polarity | Non-inverting, any input to any output |
| Power Requirements | Power over Ethernet (PoE), Class 0 (PoE Plus compatible) |
| Power Consumption | 11 W maximum |
| Application Control | HTML5 |
| Operating Temperature Range | 20 to 104°F (-6.7 to 40°C) |
| Storage Temperature Range | 20 to 165°F (-29 to 74°C) |
| Thermal Dissipation | Maximum: 12.1 W (41.3 BTU/hr) Typical: 9.8 W (33.7 BTU/hr) |
| Frequency Response | 20 Hz to 20 kHz ±1 dB |
| Dante Audio Flows | Sampling Rate: 24-bit/48 kHz |
| Latency | Does not include Dante latency Analog to Dante: 0.35 ms Dante to Analog: 0.71 ms |
| Analog Gain Range | 51 dB (adjustable in 3 dB steps) |
| Dynamic Range | 113 dB, 20 Hz to 20 kHz, A-weighted, typical |
| Equivalent Input Noise | 20 Hz to 20 kHz, A-weighted, input terminated with 150 Ohms Analog Gain Setting = +0 dB, -93 dBV Analog Gain Setting = +27 dB, -119 dBV Analog Gain Settings = +51 dB, -130 dBV |
| Total Harmonic Distortion (THD) | <0.05% @ 1 kHz, 0 dBV input, 0 dB analog gain |
| Common Mode Rejection Ratio | >70 dB, 50 Ohms balanced source @ 1 kHz |
| Input Impedance | 5 kOhms |
| Output Impedance | 150 Ohms |
| Input Clipping Level | Analog Gain Setting = +0 dB, +20 dBV Analog Gain Setting = +27 dB, -7 dBV Analog Gain Setting = +51 dB, -31 dBV |
| Analog Output Levels | Selectable Line 0 dB Aux -20 dB Mic -46 dB |
| Digital Signal Processing (DSP) | Per Channel: Equalizer (4-band Parametric, Dante channels only), Mute, Limiter, Gain (140 dB range) System: Channel Summing |
| Networking | Cat 5e or higher (shielded cable recommended) |
| Dimensions | 1.6 x 5.5 x 5.0" (4 x 14 x 12.8 cm) |
| Weight | 1.5 lb (672 g) |
