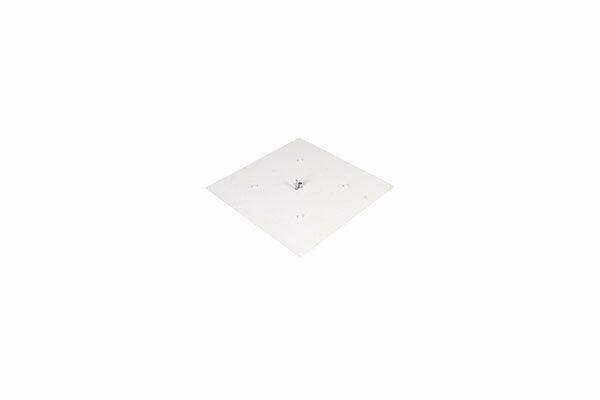

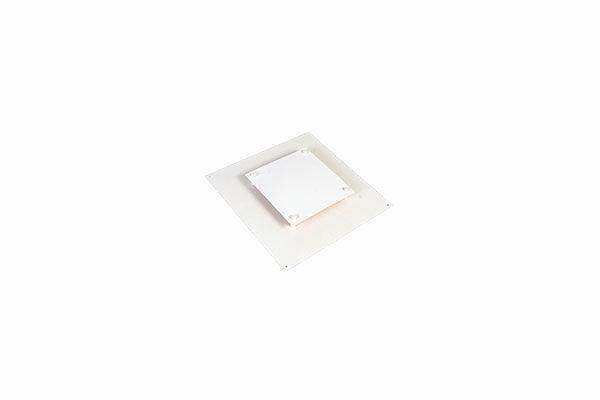

Audio-Technica CX-22 Low-profile 14" X 14" ceiling antenna, Architecturally Discreet Ceiling Antenna
Audio-Technica CX-22 Low-profile 14" X 14" ceiling antenna, Architecturally Discreet Ceiling Antenna is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Audio-Technica CX-22 Low-profile 14" X 14" ceiling antenn...
The CX-22™ provides remote antenna coverage for wireless microphones in diverse architectural environments. It is designed for wideband UHF (470-698 MHz).
The CX-22 is mounted in a low-profile, 355 mm x 355 mm (14" X 14") form factor designed for ceiling installation, and has a BNC output connector on rear plate. Popular in training facilities, classrooms, lecture-halls, houses of worship, and boardrooms, the CX-22 is an ideal tool for maximizing signal where aesthetic considerations make placement of traditional directional antennas impossible, as well as for distributed antenna systems (DAS) in large facilities with drop-ceiling environments.
The CX-22 ships in matte white and can be painted to match any interior. (Paints that contain carbon black, lead, or metallic powder may affect performance.) Hardware mounting kit included.
Features
- Passive antenna designed for ceiling mounting
- Can be painted to match any interior (paints that contain carbon black, lead, or metallic powder may affect performance.)
- 470-698 MHz operating range
- Linear polarization with hemispherical coverage pattern
- Provides up to 6 dB antenna gain
- Low-profile, 355 mm x 355 mm (14" X 14") design
- Includes BNC output connector on rear plate
Specs
Operating frequency: 470 to 698 MHz
Bandwidth: 228 MHz
Average return loss: -6.07 dB
Impedance: 50 ohms
Pattern type: Flood
Polarization: Linear
Gain: 6 dB
Dimensions: 355 mm (14") W x 355 mm (14") D
Weight: 0.9 kg (2 lbs)
Operating temperature range: -10°C to +40°C (14°F to +104°F)
Connector: BNC female
