Martin Audio CDD8TWX Speaker with 70v/100v Transformer (White)
Martin Audio CDD8TWX Speaker with 70v/100v Transformer (White) is backordered and will ship as soon as it is back in stock.
Shipping Now*
Shipping Now*
Free Ground Shipping on Orders Over $250.00
Martin Audio CDD8TWX Speaker with 70v/100v Transformer (White)

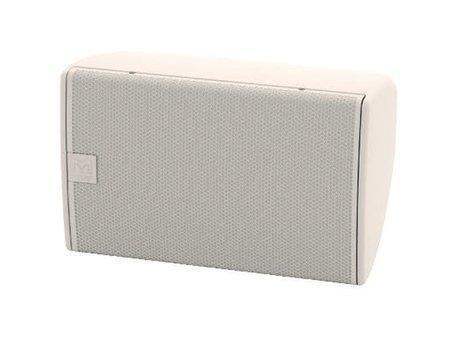

Martin Audio's CDD8WTX ultra-compact Coaxial Differential Dispersion System is a two-way passive loudspeaker with 70/100V line transformer. The CDD8 features an 8” (200mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion, driver.
The CCDWTX has sleek lines and extremely small size which make it visibly unobtrusive in tight spaces.
When the CDD8WTX is used in conjunction with larger CDD Series models, it can be used as an infill loudspeaker.
The CDDWTX has the benefit of amplifier efficiency by being able to daisy-chain loudspeakers with the use of the inbuilt transformer.
Martin Audio CDD8WTX Applications
Live Music Clubs and Bars
Nightclubs
Bars and Restaurants
Museums and AV Spaces
Convention Centres
Hotels
Retail Outlets
Leisure Centres
Houses of Worship
Martin Audio CDD8WTX Includes
- CDD8WTX Ultra-Compact Coaxial Differential Dispersion System with 70/100V Line Transformer (White)
Features
- Ultra-Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant UPM Formi composite enclosure
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free perforated steel grille
- 8Ω nominal impedance
- Discreet mounting accessories
- Black or white standard color options
- 70V/100V line transformer
Specifications
- Type: Ultra-compact, coaxial differential dispersion passive two-way system
- Frequency response: 70hz-20khz ± 3db, -10db @ 55hz
- Driver:
- Lf: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with hf
- Hf: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
- Rated power: 200w aes, 800w peak
- Transformer settings: 110v/70v line: 120w, 60w, 30w, 15w
- Sensitivity: 94db
- Maximum spl: 117db continuous, 123db peak
- Nominal impedance: 8ω
- Dispersion (-6db): 110˚-80˚ horizontal, 60˚ vertical (user-rotatable)
- Crossover: 2.3khz passive
- Enclosure: 14 litre, composite material
- Finish: Black or white textured paint
- Protective grille: Black or white perforated steel with scrim cloth backing
- Connectors: Low profile 13a push-lock
- Phoenix connector 5 way: Common, 120w, 60w, 30w, 15w
- Fittings: 6 x m6 inserts for wall/ceiling brackets
- Dimensions (WxHxD): 10.1" x 16.1" x 9.9" (256 x 410 x 252 mm)
- Weight 24.53 lbs (11.1 kg)
