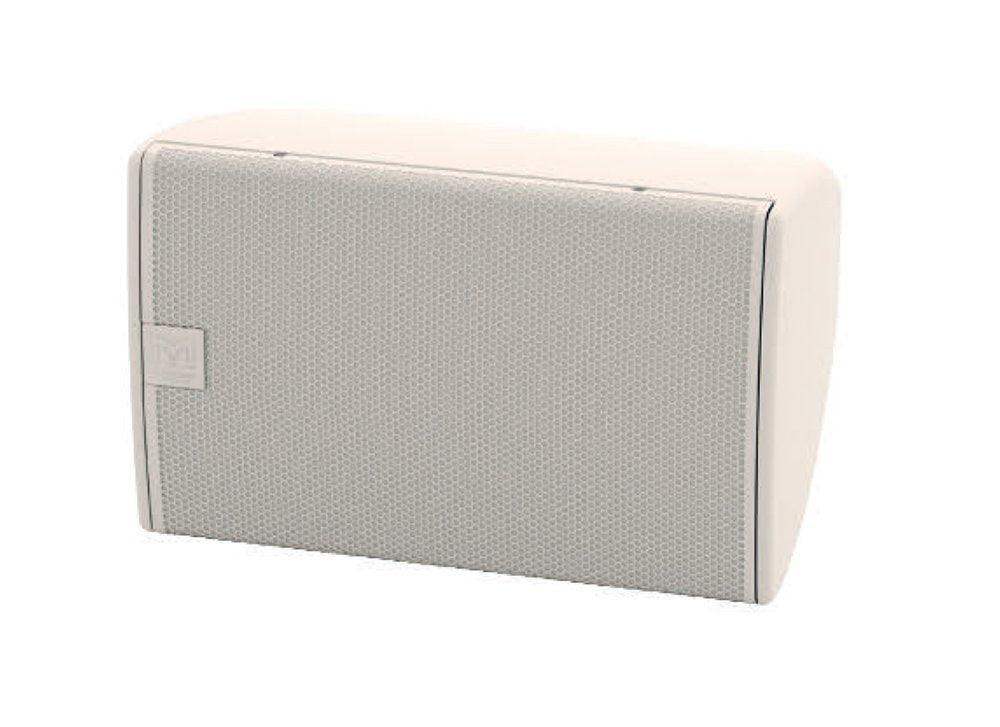

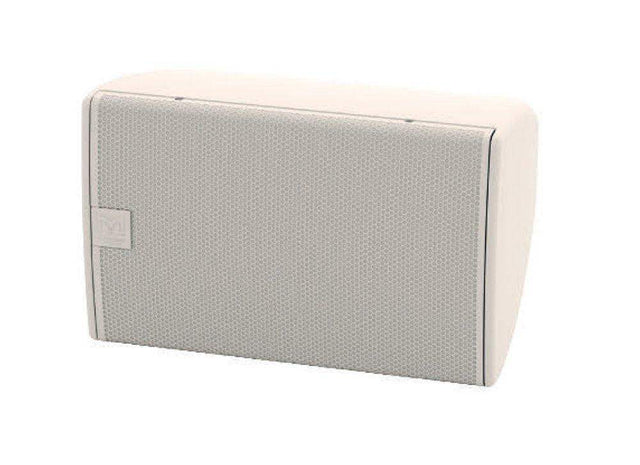

Martin Audio CDD10WTX CDD10 Speaker with 70v/100v Transformer (White)

Authorized Dealer

$1,500.00

Shipping calculated at checkout.

Martin Audio | SKU: CDD10WTX

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

Martin Audio's CDD10WTX compact two-way passive loudspeaker system uses a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver. This very compact speaker fulfills the foreground requirements of many varied architectural applications.

The CDD10WTX has the benefit of amplifier efficiency by being able to daisy-chain loudspeakers with the use of the inbuilt transformer.

The CDD10TX should be used with a compatible controller with appropriate limiter settings to provide system protection.

Martin Audio CDD10WTX Applications

Live Music Clubs and Bars

Nightclubs

Bars and Restaurants

Museums and AV Spaces

Convention Centres

Hotels

Retail Outlets

Leisure Centres

Houses of Worship

Martin Audio CDD10WTX Includes

CDD10TX Compact two-way passive loudspeaker (White)

Features

Compact, CDD™ passive two-way system
Coaxial Differential Dispersion™ technology
Elegant UPM Formi composite enclosure
User-rotatable coaxial drive unit
Vertical and horizontal mounting options
Screw-free perforated steel grille
8Ω nominal impedance
Discreet mounting accessories
Integral inserts for eyebolt suspension
Black or white standard color options
70V/100V line transformer

Specifications

Type: Compact, Coaxial Differential Dispersion passive two-way system
Frequency Response: 65Hz-20kHz ± 3dB, -10dB @ 55Hz
Driver:
- LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor with HF
- HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
Rated Power: 250W AES, 1000W peak
Transformer Settings: 110V/70V line: 120W, 60W, 30W, 15W
Sensitivity: 96dB
Maximum SPL: 120dB continuous, 126dB peak
Nominal Impedance: 8Ω
Dispersion (-6DB): 110˚-75˚ horizontal, 60˚ vertical (user-rotatable)
Crossover: 2kHz passive
Enclosure: 28 litre, composite material
Finish: Black or white textured paint
Protective Grille: Black or white perforated steel with scrim cloth backing
Connectors: Low profile 20A push-lock
Phoenix Connector: Common, 120W, 60W, 30W, 15W
Fittings:
- 6 x M8 inserts for wall bracket
- 10 x M8 fly points
Dimensions (WxHxD): 12.7" x 20.2" x 12.2" (323 x 513 x 310 mm)
Weight: 37.23lbs (16.9kg)
