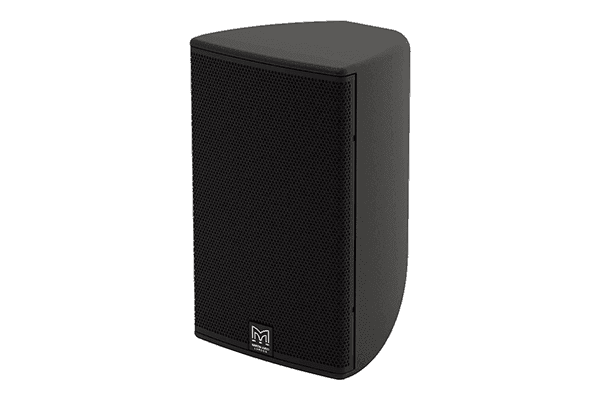

Martin Audio 10" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker with 70/100V Transformer (Black) - CDD10BTX-WR
Martin Audio 10" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker with 70/100V Transformer (Black) - CDD10BTX-WR is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Martin Audio 10" Passive Coaxial Differential Dispersion Outdo...
The CDD10TX-WR is a weatherized very compact two-way passive loudspeaker system incorporating a 70V/100V transformer (with a 5-way connector). It is suitable for larger outdoor applications that benefit from amplifier efficiency by being able to daisy-chain loudspeakers through the use of the inbuilt transformer and where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It utilizes a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver and features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.
Features
- Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant UPM Formi composite enclosure
- Outdoor operation when sheltered from direct exposure to elements
- Operating temperature -20°C to +70°C
- Environmentally tested to meet IP54
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free water and particle resistant grille
- Integral inserts for eyebolt suspension
- Discreet weatherised mounting accessories
- Black or white standard colour options
- 70V/100V line transformer
Applications
- Outdoor Restaurants
- Bars
- Hotel Areas
- Nearfield Systems in Outdoor Stadia
- Transport Hubs
- Concourses and Theme Parks
Specification
| TYPE | Compact, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE (5) | 65Hz-20kHz ± 3dB -10dB @ 55Hz |
| DRIVER | LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver |
| RATED POWER (2) | 250W AES, 1000W peak |
| SENSITIVITY (8) | 96dB |
| MAXIMUM SPL (9) | 120dB continuous, 126dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | 110˚-75˚ horizontal, 60˚ vertical (user-rotatable) |
| CROSSOVER | 2kHz passive |
| ENCLOSURE | 28 litre, composite material |
| FINISH | Black or white as standard |
| PROTECTIVE GRILLE | Zinc plated mild steel with powder coated finish and weatherised backing |
| ENVIRONMENTAL | Rated at IP54 |
| CONNECTORS | Low profile 20A push-lock, weatherproof input panel cover with cable gland |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link+ |
| FITTINGS | 6 x M8 inserts for wall bracket 10 x M8 fly points |
| DIMENSIONS | (W) 323mm x (H) 513mm x (D) 310mm (W) 12.7ins x (H) 20.23ins x (D) 12.2ins |
| WEIGHT | 15.5kg (34.2lbs) |
