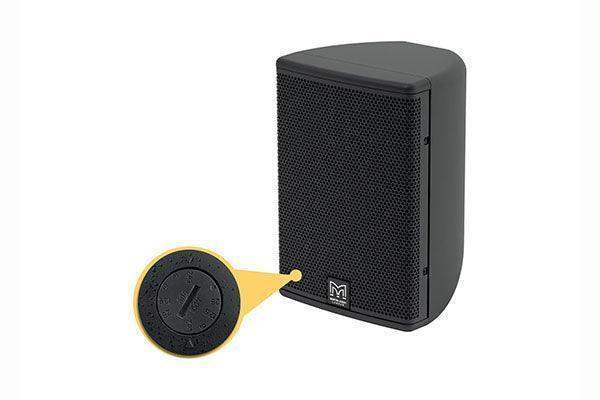

Martin Audio 6" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker with 70/100V Transformer (Black) - CDD6BTX-WR

Authorized Dealer

$1,200.00

Shipping calculated at checkout.

Martin Audio | SKU: CDD6BTX-WR

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

The Martin Audio CDD6BTX-WR is a black weatherized two-way passive micro speaker incorporating a 70V/100V line transformer designed for discreet placement in architectural settings; including bars, museums, foyers, concourses, exhibition centres and HoW as well as outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It can reproduce surprisingly high levels of music programs and can also be used as a fill system in conjunction with larger CDD Series. It features a 6.5” (165mm) LF/1” (25mm) HF Coaxial Differential Dispersion driver inside an elegant UPM Formi composite enclosure with a dual cable gland for easy daisy-chaining of cabinets without the need for external breakout boxes.

Features

Ultra-Compact, CDD™ passive two-way system
Coaxial Differential Dispersion™ technology
Elegant UPM Formi composite enclosure
Outdoor operation when sheltered from direct exposure to elements
Operating temperature -20°C to +70°C
Environmentally tested to meet IP54
User-rotatable coaxial drive unit
Vertical and horizontal mounting options
Screw-free water and particle resistant grille
8Ω nominal impedance
Discreet weatherised mounting accessories
Black or white standard colour options
70V/100V line transformer

Applications

Bars and Restaurants
Museums and AV spaces
Convention Centres
Hotels
Retail Outlets
Leisure Centres
Houses of Worship
Outdoor Restaurants, Bars, Hotel areas
Nearfield Systems in Outdoor Stadia
Transport Hubs
Concourses and Theme Parks

Specification

TYPE	Ultra-Compact, Coaxial Differential Dispersion passive two-way system
FREQUENCY RESPONSE (5)	80Hz-20kHz ± -10dB @ 70Hz
DRIVER	LF: 6.5” (165mm)/1.5” (38mm) voice coil, long excursion, ferrite motor system HF: 1” (25mm) voice coil, fabric dome with neodymium motor system
RATED POWER (2)	150W AES, 600W peak
TRANSFORMER SETTINGS	100V line: 12.5W, 25W, 50W 70V line: 6.5W, 12.5W, 25W, 50W
SENSITIVITY (8)	91dB
MAXIMUM SPL (9)	113dB continuous, 119dB peak 6.2W=99dB, 12.5W=102dB, 25W=105dB, 50W=108dB.
NOMINAL IMPEDANCE	8Ω
DISPERSION (-6dB)	110°-80° horizontal, 80° vertical (user-rotatable)
CROSSOVER	2.5kHz passive
ENCLOSURE	9 litre, composite material
FINISH	Black or white as standard
PROTECTIVE GRILLE	Zinc plated mild steel with powder coated finish and weatherised backing
ENVIRONMENTAL	Rated at IP54
CONNECTORS	Low profile 13A push-lock, weatherproof input panel cover with dual cable glands
PIN CONNECTIONS	Left to right: Input+, Input -, Link -, Link +
FITTINGS	4 x M6 inserts for wall/ceiling brackets
DIMENSIONS	(W) 210mm x (H) 325mm x (D) 210mm (W) 8.3ins x (H) 12.8ins x (D) 8.3ins
WEIGHT	6.77kg (14.93lbs)
